Removal Procedure
Important: After installation, calibrate the new EBCM to the tire size that is appropriate to the vehicle.
- Disconnect the negative battery cable.
- Raise and suitably support the vehicle.
Important: The area around the EHCU MUST be free from loose dirt to prevent contamination of disassembled ABS components.

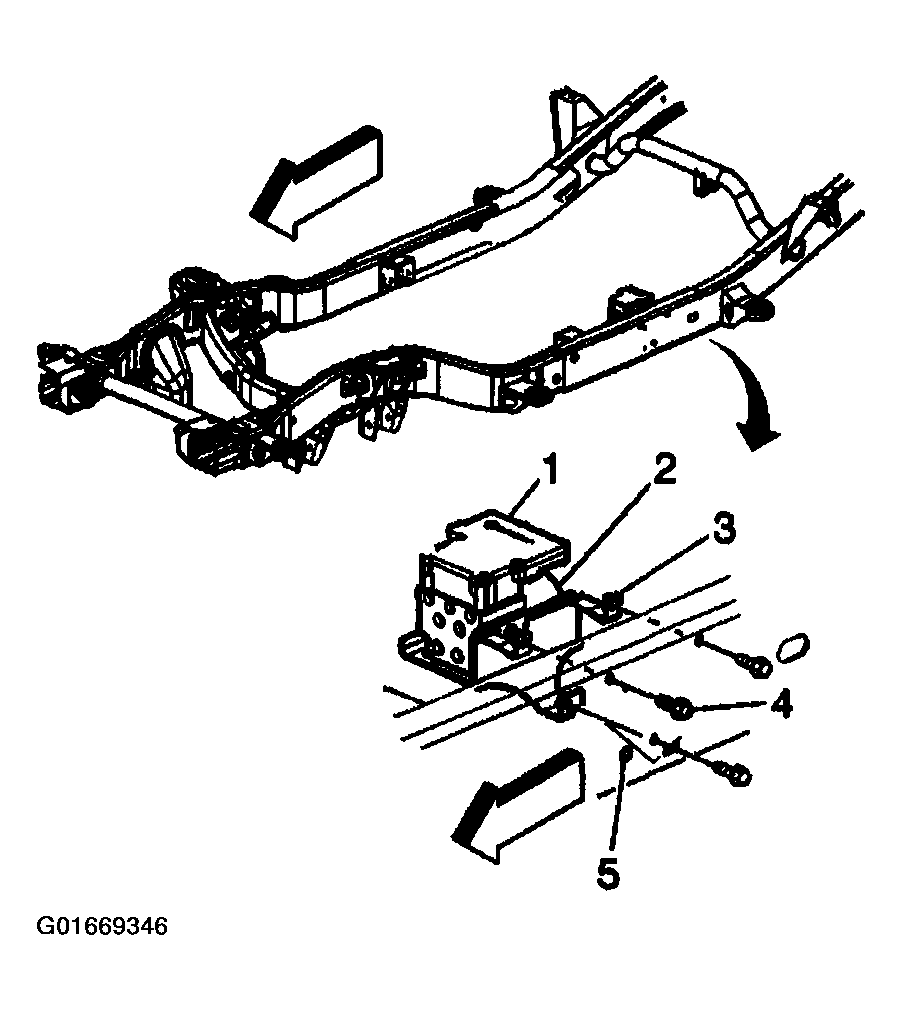

- Thoroughly was all contaminants from around the EHCU (1).
- Disconnect the electrical connectors from the EBCM.
- Loosen or remove the bolts (4) securing the EHCU mounting bracket (3) to the frame rail (5).

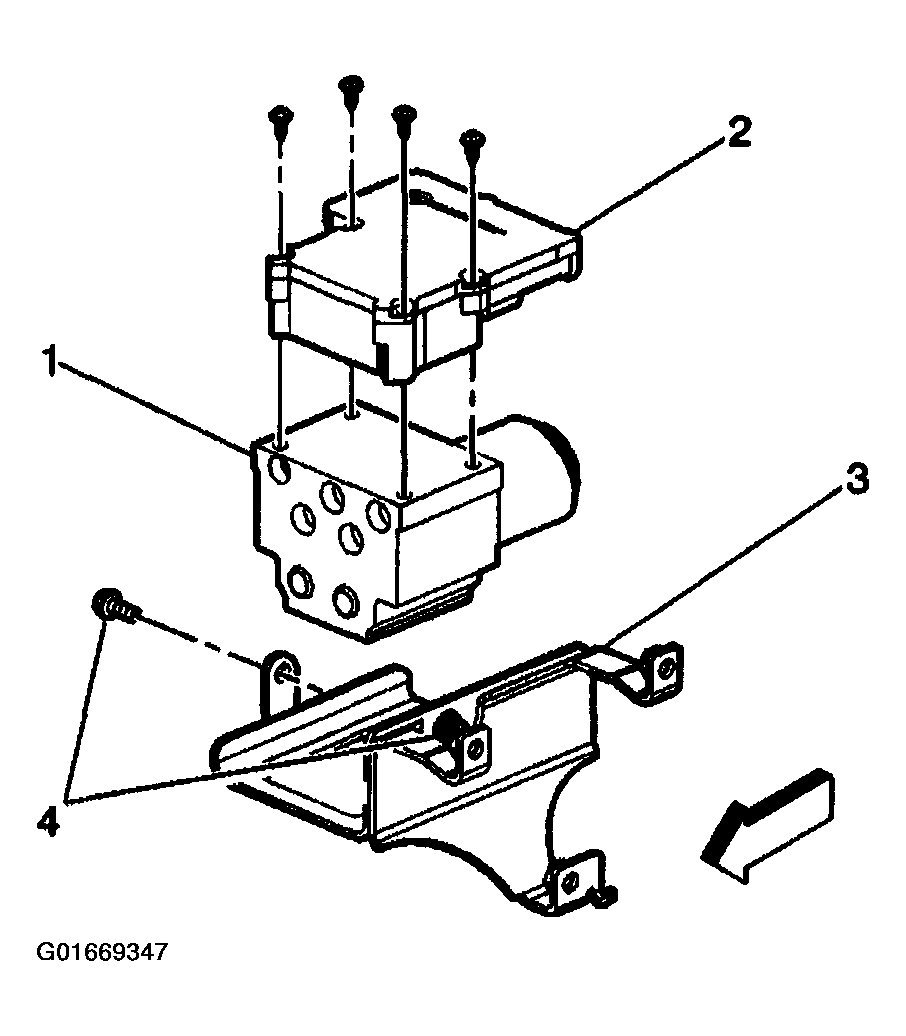

- Gently move the EHCU down enough to remove the mounting screws that fasten the EBCM (2) to the BPMV (1).
- Remove the EBCM (2) from the BPMV (1). Removal may require a light amount of force.NOTE: Do not use a tool to pry the EBCM or the BPMV. Excessive force will damage the EBCM.
- Clean the BPMV to EBCM mounting surfaces with a clean cloth.
