Removal Procedure
- Remove the right diagonal brace.
- Remove the battery.
- Partially drain the cooling system. Refer to Draining & Filling Cooling System .

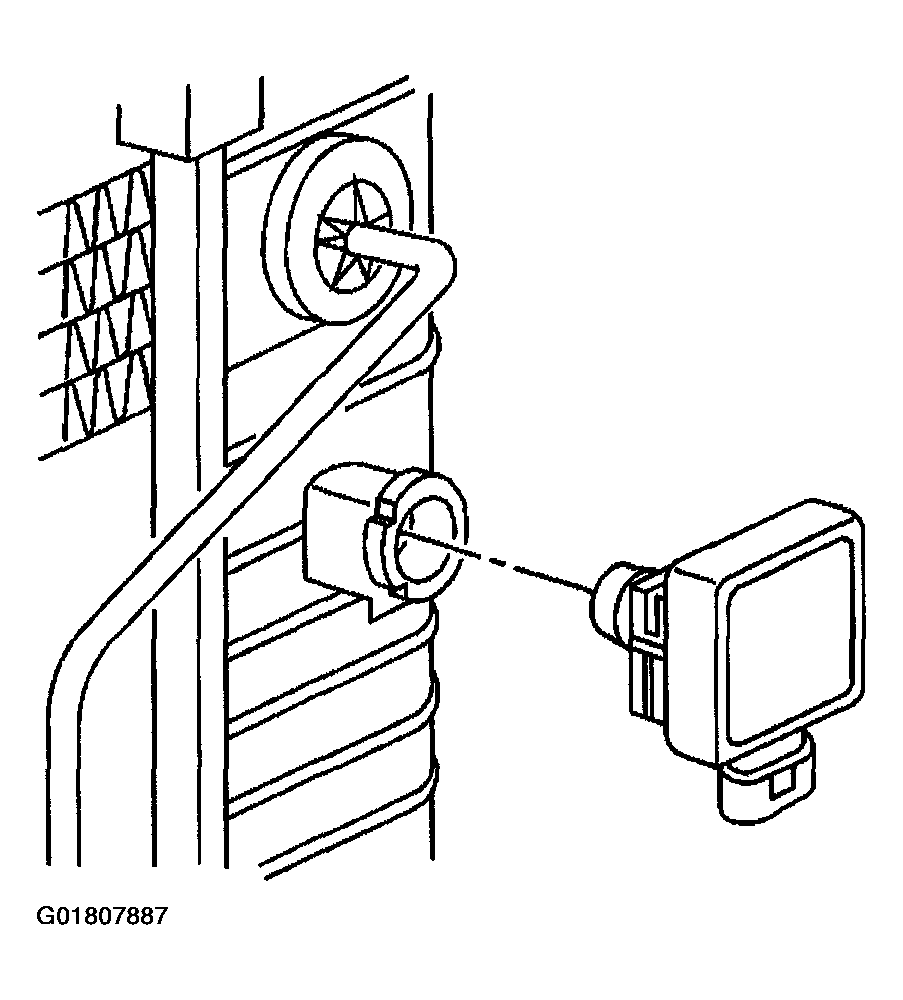

- Disconnect the low coolant module electrical connector.
Important: In order to unlock the low coolant module, lift one leg of the snap clip from its locked position and pull outward with a slight twisting motion.
- Remove the low coolant module.
