2002 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Drain the cooling system. Refer to Draining & Filling Cooling System .
- Remove the drive belt guard.
- Loosen the water pump pulley bolts.
- Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .

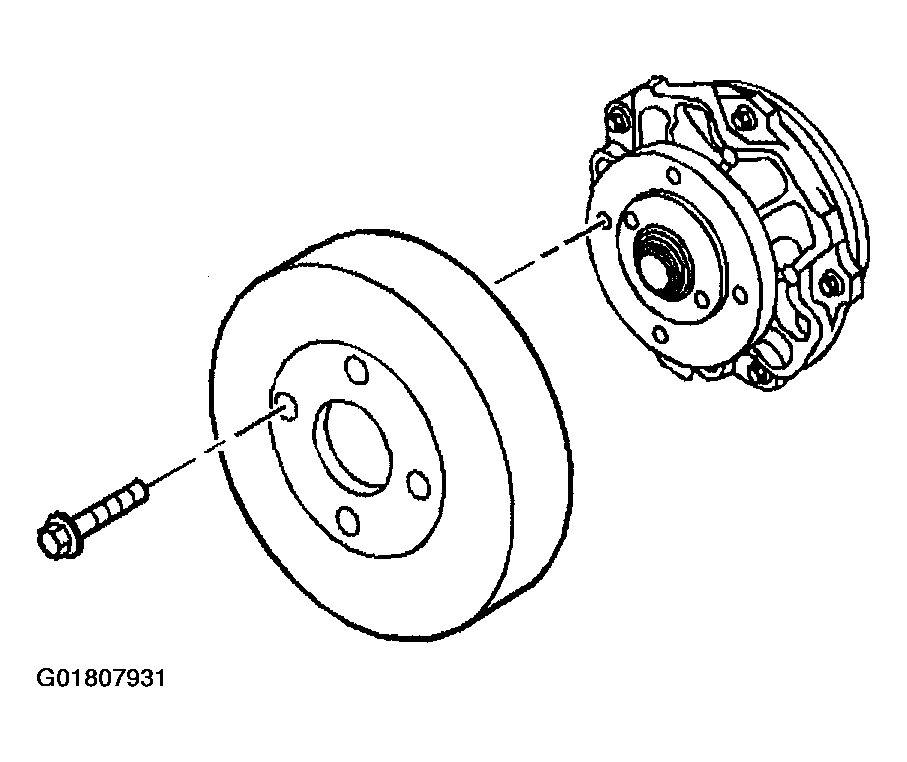

- Remove the water pump pulley bolts.
- Remove the water pump pulley.

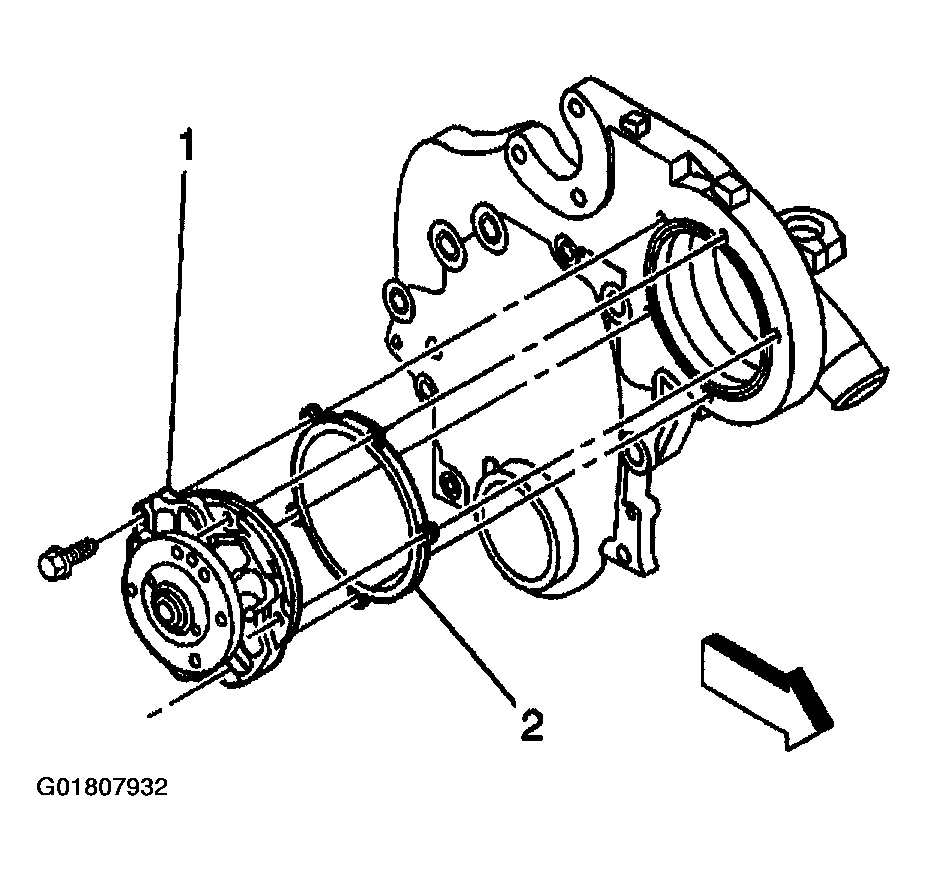

- Remove the water pump bolts.
- Remove the water pump (1).
- Remove the water pump gasket (2).
- Clean the water pump mating surfaces.
