2002 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Diagnostic Procedure

  1. If diagnostic system check was performed, go to next step. If diagnostic system check was not performed, go to ENGINE ELECTRICAL DIAGNOSTIC SYSTEM CHECK  under ON-VEHICLE TESTING.
  2. Remove rear window defogger relay from right instrument panel accessory wiring junction block. Turn ignition switch to RUN position. Connect a test light between ground and rear window defogger relay control circuit terminal N3. See WIRING DIAGRAMS  for appropriate REAR WINDOW & MIRROR DEFOGGERS article. Using scan tool, command rear window defogger relay ON and OFF. If test light does not turn on and off as commanded, go to next step. If test light turns on and off as commanded, diagnose intermittent concern. See appropriate BODY CONTROL MODULES article in ACCESSORIES & EQUIPMENT.
  3. Check for short to ground in control circuit (Orange wire) between right instrument panel accessory wiring junction block harness connector C1 terminal D11 and BCM harness connector C2 terminal B8. See Fig 1 . Repair as necessary. After repair, go to step  6 .
  4. Check for poor terminal contact at BCM harness connector C2. Repair as necessary. If terminals are okay, go to next step. After repair, go to step  6 .
  5. Replace BCM. See appropriate BODY CONTROL MODULES article in ACCESSORIES & EQUIPMENT. After programming BCM, go to next step.
  6. Using scan tool, clear DTCs. Operate vehicle within conditions that caused DTC. If DTC B1507 resets, go to step  2 . If DTC B1507 does not exist, system is okay at this time.

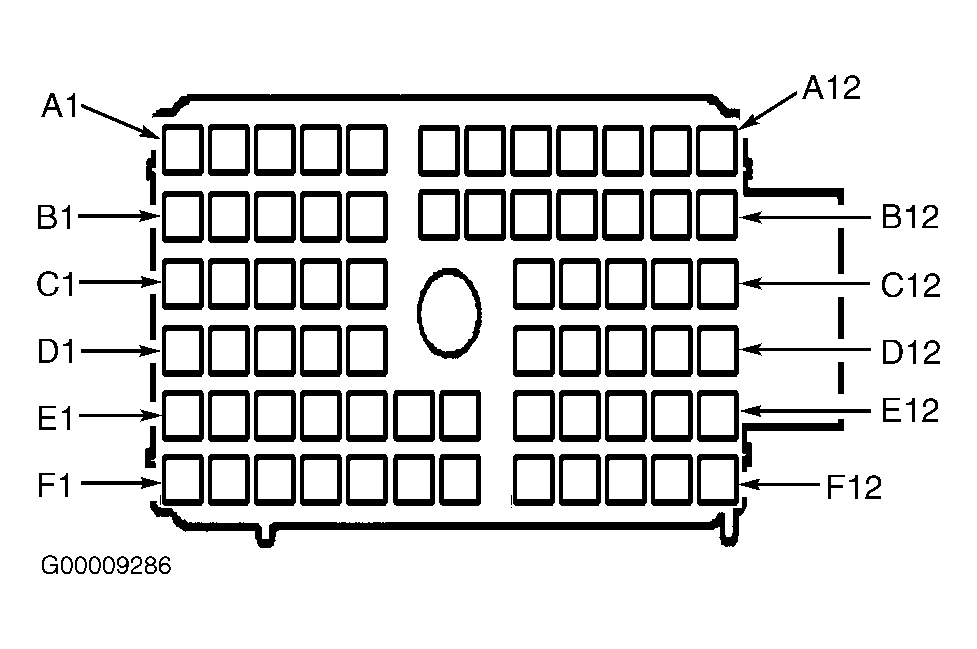

Fig 1: Identifying Left/Right instrument panel Accessory Wiring Junction Block Harness Connector
G00009286Courtesy of GENERAL MOTORS CORP.
