Removal Procedure
Important: You must perform the new body control module (BCM) setup when replacing the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration .
- Disconnect the battery ground (negative) cable.
- Remove the left instrument panel insulator.

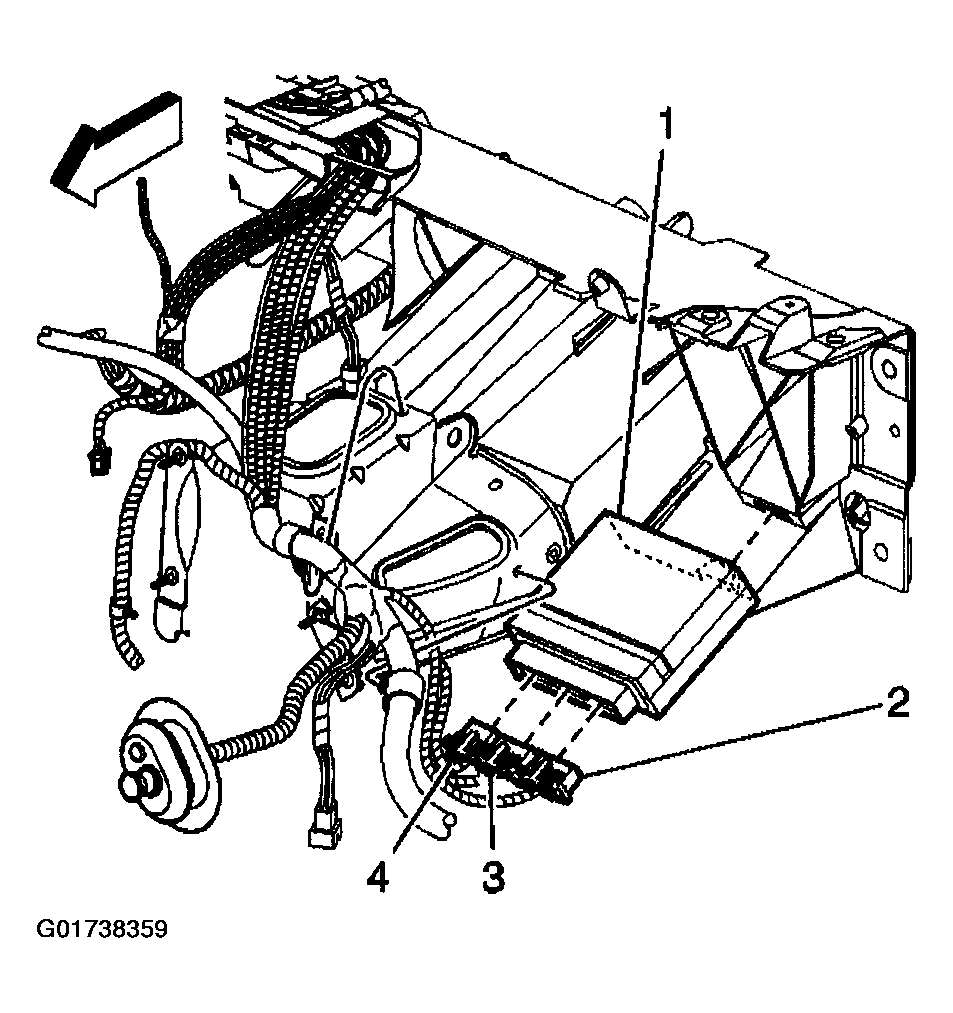

- Disconnect the BCM electrical connectors (2,3,4).
- Remove the BCM (1).
