2002 Chevrolet Express 3/4 Ton Van V8-6.5L DSL Turbo VIN FFACTORY OEM SERVICE PROCEDURE
Compressor Control Switches Removal (HT6/HD6/HU6)
TOOLS REQUIRED
^ J 34992 Compressor Holding Fixture
^ J 5403 Snap Ring Pliers
^ J 9553-01 O-Ring Remover
1. Install the compressor into the J 34992.
2. Remove the switch retaining ring using the J 5403.

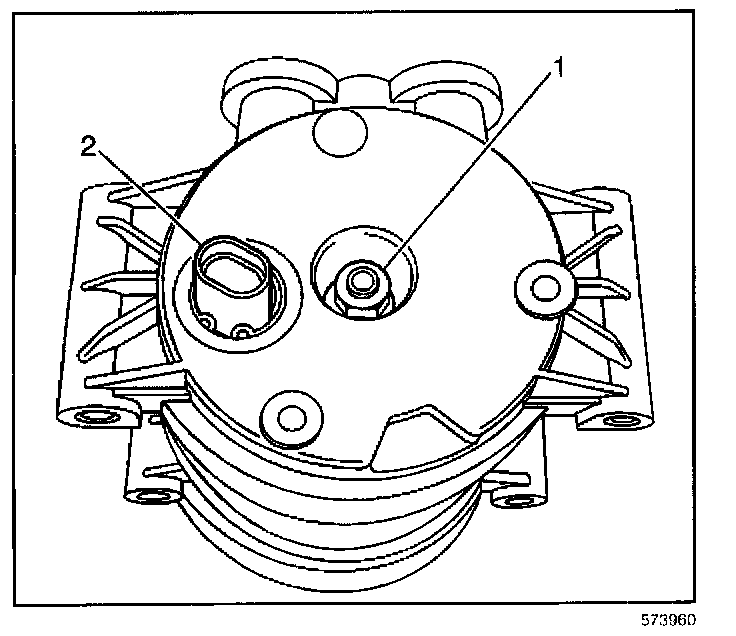

3. Remove the switch (2) from the compressor.
4. Remove the old O-ring seal from the switch cavity using the J 9553-01.
5. Inspect the switch cavity and the O-ring groove in the rear head for dirt or foreign material. Clean the components as necessary.
For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID. RPO Codes
^ J 34992 Compressor Holding Fixture
^ J 5403 Snap Ring Pliers
^ J 9553-01 O-Ring Remover
1. Install the compressor into the J 34992.
2. Remove the switch retaining ring using the J 5403.
3. Remove the switch (2) from the compressor.
4. Remove the old O-ring seal from the switch cavity using the J 9553-01.
5. Inspect the switch cavity and the O-ring groove in the rear head for dirt or foreign material. Clean the components as necessary.
For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID. RPO Codes
