2002 Chevrolet Express 3/4 Ton Van V8-6.5L DSL Turbo VIN FFACTORY OEM SERVICE PROCEDURE
Engine Coolant Level Indicator Module Replacement
REMOVAL PROCEDURE

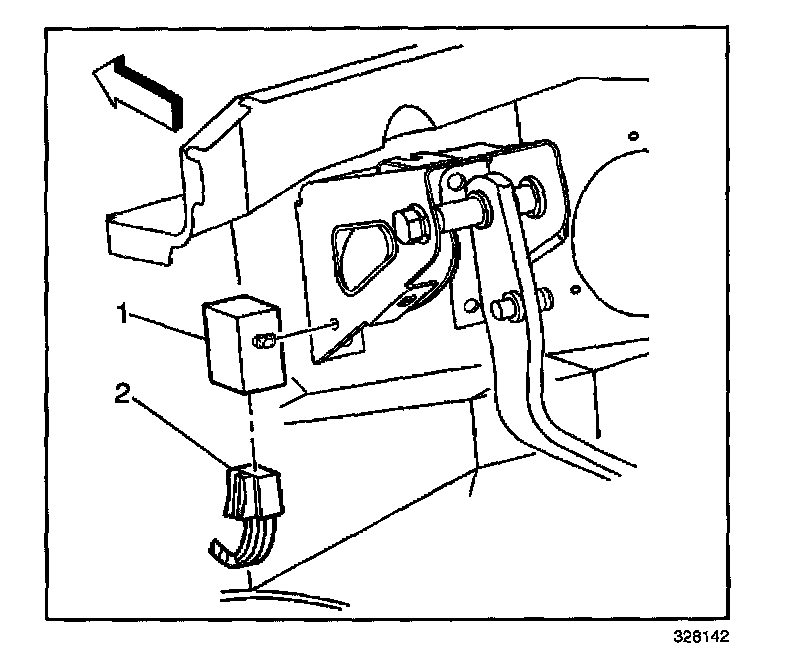

1. Remove the instrument panel driver knee bolster panel.
2. Remove the engine coolant level indicator module (1) from the brake pedal support.
3. Disconnect the electrical connector (2) from the engine coolant level indicator module.
INSTALLATION PROCEDURE
1. Connect the electrical connector (2) to the engine coolant level indicator module.
2. Install the engine coolant level indicator module (1) to the brake pedal support.
3. Install the instrument panel driver knee bolster panel.

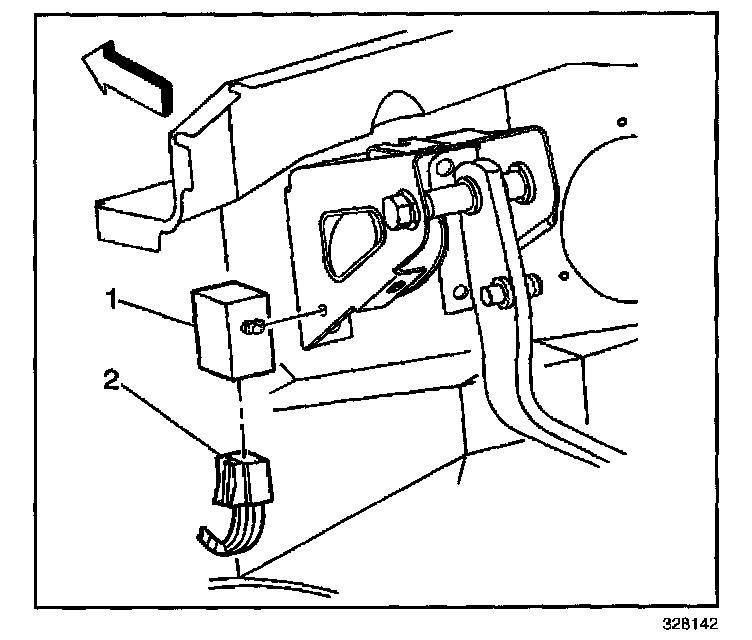

1. Remove the instrument panel driver knee bolster panel.
2. Remove the engine coolant level indicator module (1) from the brake pedal support.
3. Disconnect the electrical connector (2) from the engine coolant level indicator module.
INSTALLATION PROCEDURE
1. Connect the electrical connector (2) to the engine coolant level indicator module.
2. Install the engine coolant level indicator module (1) to the brake pedal support.
3. Install the instrument panel driver knee bolster panel.
