2001 Chevrolet Cavalier LS, 2.4 TFACTORY OEM SERVICE PROCEDURE

Draining & Refilling: 4T40-E

  1. Raise and support vehicle. Place drain pan under transaxle oil pan. Remove oil pan bolts from front and side. Loosen rear transaxle oil pan bolts about 4 turns each.
  2. Using a screwdriver, carefully pry pan loose. Allow fluid to drain. Remove bolts, and remove oil pan. Remove and discard old pan gasket, if reusable-type gasket is not used. Remove filter and "O" ring or sleeve-type seal. See Fig 1 . Remove any remaining gasket material on transaxle case.
  3. Thoroughly clean pan, magnet and screen (if metal) with solvent, and then dry using compressed air. Replace filter and seal. Lubricate with clean fluid before installation.
  4. Install filter assembly into filter pick-up tube recess. See Fig 2 . Install oil pan and gasket. Use NEW pan gasket if transaxle is not equipped with reusable-type gasket. Tighten pan bolts to specification. See TORQUE SPECIFICATIONS  .
  5. Fill transaxle to proper level. See FLUID CAPACITIES  . Lower vehicle and start engine. Allow engine to idle until transmission fluid reaches 104°F (20°C). Depress brake pedal and shift gear selector through all gear ranges, pausing a few seconds in each range. Place gear selector lever in Park.
    6. CAUTION: In this step, engine MUST be running when transaxle oil check plug is removed or excessive fluid loss will occur. Stand clear when removing oil check plug. DO NOT turn engine off with oil check plug removed.
  6. With engine running, raise vehicle and remove transaxle oil check plug. Add fluid in increments of one pint (.5L) until fluid drains from oil check hole. Install oil check plug and tighten to specification. See TORQUE SPECIFICATIONS  .

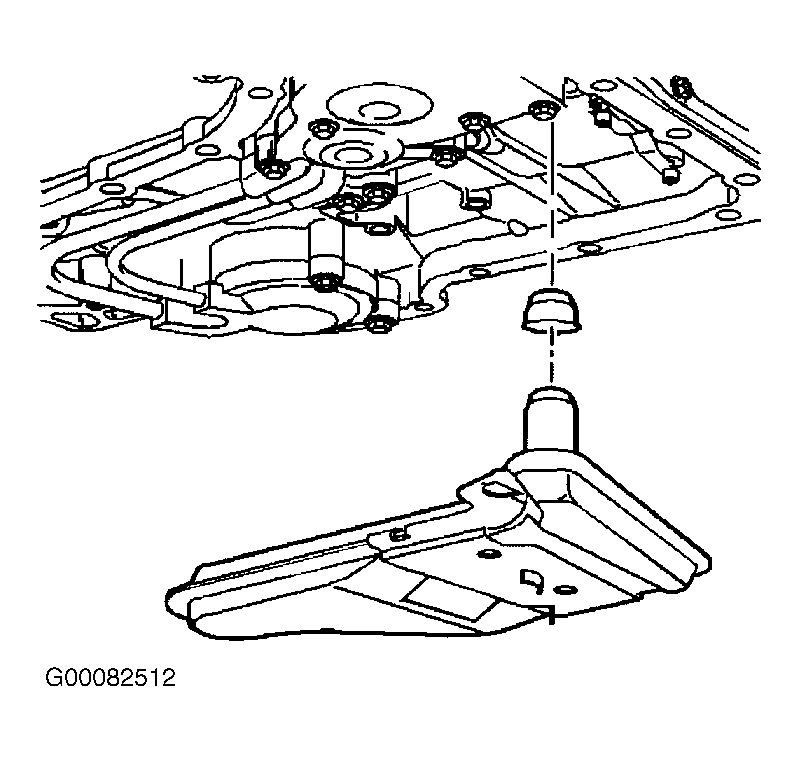

Fig 1: Removing Oil Filter & Seal
G00082512Courtesy of GENERAL MOTORS CORP.
