2000 Chevrolet Venture V6-3.4L VIN EFACTORY OEM SERVICE PROCEDURE
Cruise Control Module: Service and Repair
REMOVAL PROCEDURE

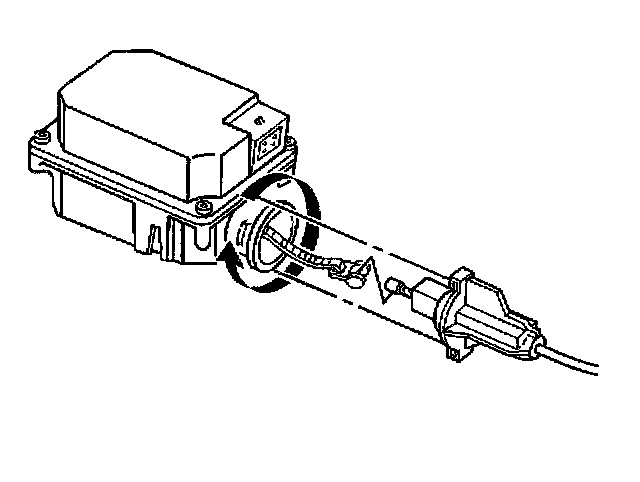

1. Remove the cruise control cable from the module.

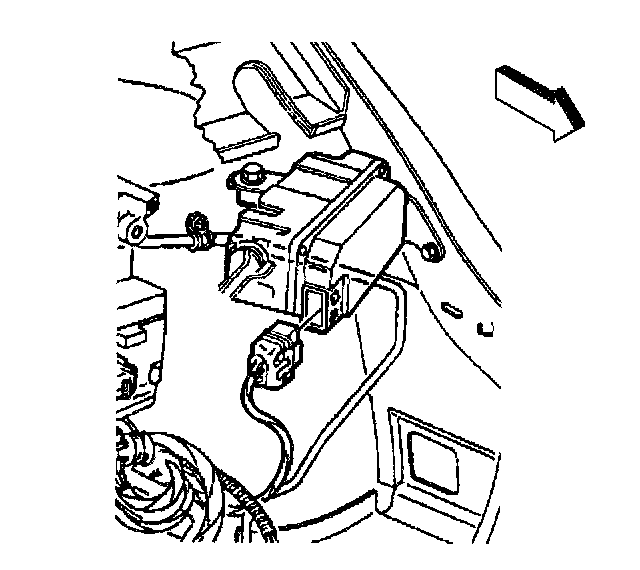

2. Disconnect the electrical connector.

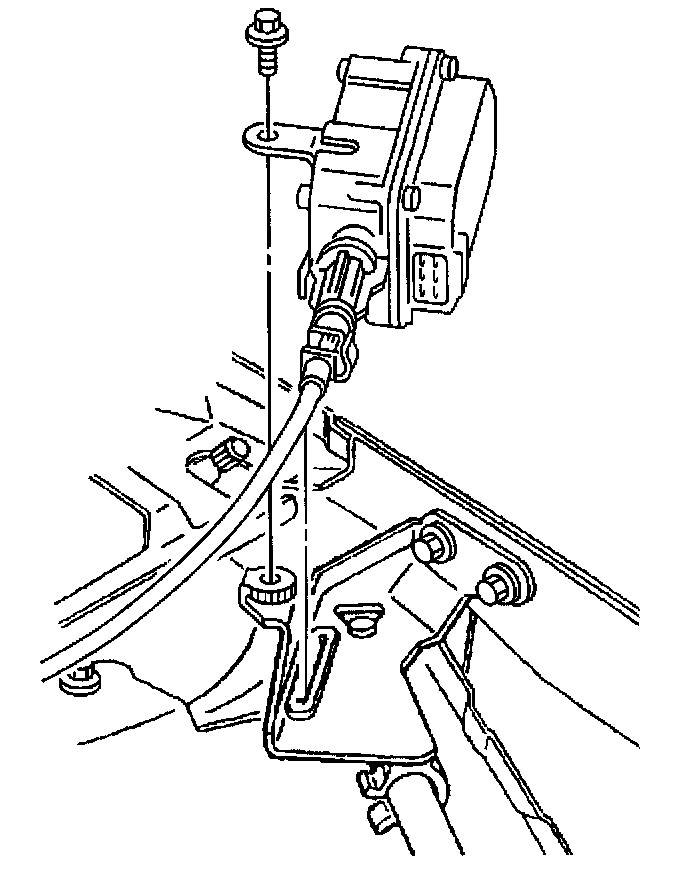

3. Remove the mounting bracket bolt from the cruise control module.
4. Remove the cruise control module from the mounting bracket.
INSTALLATION PROCEDURE
1. Install the cruise control module to the mounting bracket.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the mounting bracket bolt to the cruise control module.
Tighten
Tighten the bolt to 6 N.m (53 lb in).
3. Connect the electrical connector to the module.
4. Install the cruise control cable to the module.
5. Adjust the cruise control cable. Refer to Cruise Control Cable Replacement.
1. Remove the cruise control cable from the module.
2. Disconnect the electrical connector.
3. Remove the mounting bracket bolt from the cruise control module.
4. Remove the cruise control module from the mounting bracket.
INSTALLATION PROCEDURE
1. Install the cruise control module to the mounting bracket.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the mounting bracket bolt to the cruise control module.
Tighten
Tighten the bolt to 6 N.m (53 lb in).
3. Connect the electrical connector to the module.
4. Install the cruise control cable to the module.
5. Adjust the cruise control cable. Refer to Cruise Control Cable Replacement.
