2000 MODEL COVERAGE

MODEL

BODY CODE ⁽¹⁾

ENGINE ⁽²⁾

ENGINE ID

FUEL SYSTEM

IGNITION SYSTEM

Astro & Safari

L, M

4.3L (L35)

CSFI

Magnetic ⁽³⁾

Blazer, Bravada, Envoy & Jimmy

S, T

4.3L (L35)

CSFI

Magnetic ⁽³⁾

Cab & Chassis

C, K

5.7L (L31)

CSFI

Magnetic ⁽³⁾

.....

5.7L (L31)

TBI ⁽⁴⁾

Magnetic ⁽³⁾

.....

6.5L (L65)

Turbo Diesel

N/A

.....

7.4L (L29)

SFI

Magnetic ⁽³⁾

Cutaway

5.7L (L31)

CSFI

Magnetic ⁽³⁾

.....

6.5L (L65)

Turbo Diesel

N/A

.....

7.4L (L29)

SFI

Magnetic ⁽³⁾

Escalade

5.7L (L31)

CSFI

Magnetic ⁽³⁾

Express & Savana

4.3L (L35)

CSFI

Magnetic ⁽³⁾

.....

5.0L (L30)

CSFI

Magnetic ⁽³⁾

.....

5.7L (L31)

CSFI

Magnetic ⁽³⁾

.....

6.5L (L65)

Turbo Diesel

N/A

.....

7.4L (L29)

SFI

Magnetic ⁽³⁾

Montana, Silhouette & Venture

3.4L (LA1)

SFI

DIS Magnetic

Pickup ⁽⁵⁾

C, K

5.7L (L31)

CSFI

Magnetic ⁽³⁾

.....

5.7L (L31)

TBI ⁽⁴⁾

Magnetic ⁽³⁾

.....

6.5L (L65)

Turbo Diesel

N/A

.....

7.4L (L29)

SFI

Magnetic ⁽³⁾

RV Cutaway

5.7L (L31)

CSFI

Magnetic ⁽³⁾

.....

6.5L (L65)

Turbo Diesel

N/A

.....

7.4L (L29)

SFI

Magnetic ⁽³⁾

Sierra & Silverado

C, K

4.3L (L35)

CSFI

Magnetic ⁽³⁾

.....

4.8L (LR4)

SFI

DIS Magnetic

.....

5.3L (LM7)

SFI

DIS Magnetic

.....

6.0L (LQ4)

SFI

DIS Magnetic

Sonoma & S-10 Pickup

S, T

2.2L (LN2)

SFI

DIS Magnetic

.....

2.2L (L43)

SFI ⁽⁴⁾

DIS Magnetic

.....

4.3L (L35)

CSFI

Magnetic ⁽³⁾

.....

4.3L (LF6)

CSFI

Magnetic ⁽³⁾

Suburban

C, K

5.3L (LM7)

SFI

DIS Magnetic

.....

6.0L (LQ4)

SFI

DIS Magnetic

Tahoe (New Style)

C, K

4.8L (LR4)

SFI

DIS Magnetic

.....

5.3L (LM7)

SFI

DIS Magnetic

Tahoe (Old Style)

C, K

5.7L (L31)

CSFI

Magnetic ⁽³⁾

Tracker

E, J

1.6L (L01)

MPI

DIS Magnetic

.....

2.0L (L34)

MPI

DIS Magnetic

Yukon (New Style)

C, K

4.8L (LR4)

SFI

DIS Magnetic

.....

5.3L (LM7)

SFI

DIS Magnetic

Yukon Denali (Old Style)

C, K

5.7L (L31)

CSFI

Magnetic ⁽³⁾

Yukon XL

C, K

5.3L (LM7)

SFI

DIS Magnetic

.....

6.0L (LQ4)

SFI

DIS Magnetic

⁽¹⁾	Series designation.

⁽²⁾	Engine code is stamped on engine block. See ENGINE CODE LOCATION .

⁽³⁾	Uses Enhanced Electronic Ignition, utilizing a camshaft and crankshaft position sensor.

⁽⁴⁾	Dual fuel vehicle.

⁽⁵⁾	Includes Sierra and Silverado (Classic).

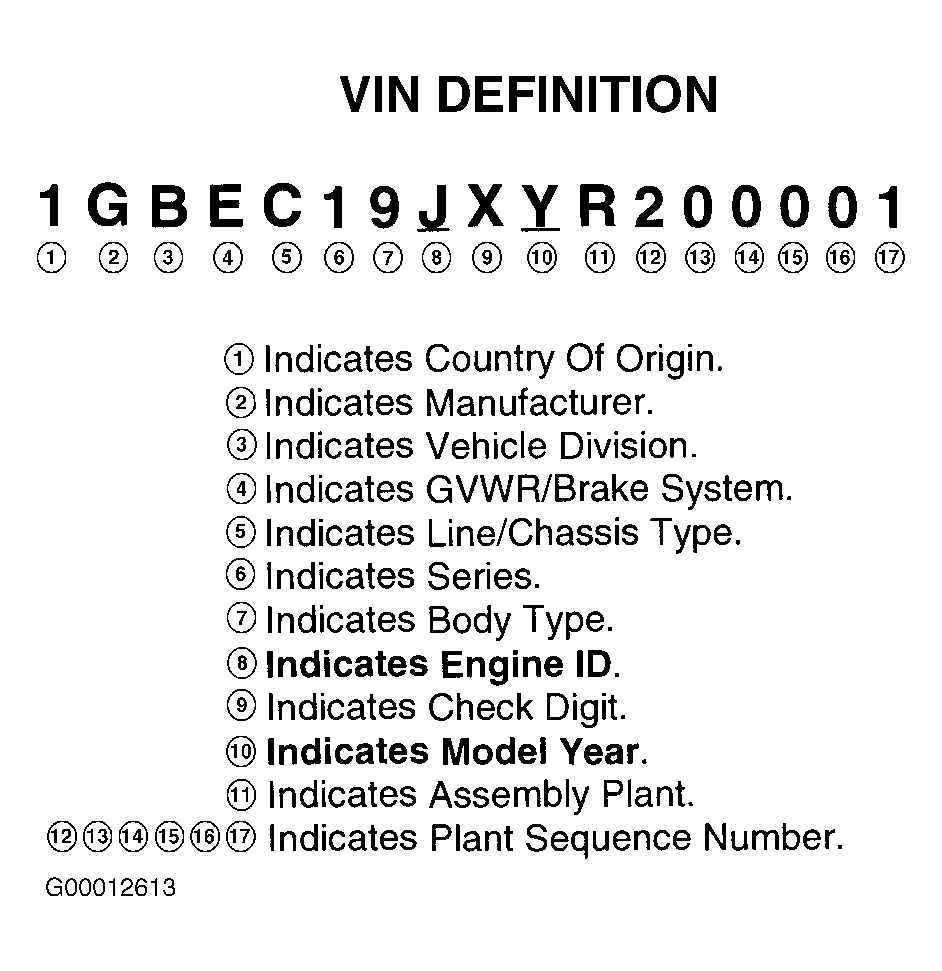

Fig 1: VIN Character Position & Definition

Courtesy of GENERAL MOTORS CORP.
