2000 Chevrolet Prizm Base, StandardFACTORY OEM SERVICE PROCEDURE

Component Locations

COMPONENT LOCATIONS

Component Location
AM2 Fuse Fuse & Relay Block No. 1 (1)
Clutch Pedal Position (CPP) Switch Mounted On Bracket Above Clutch Pedal
Fuse & Relay Block No. 1 Left Front Of Engine Compartment, Near Air Cleaner
Ground G103 Left Front Of Engine Compartment, Behind Battery
Ignition Switch Mounted To Right Side Of Steering Column
Junction Block No. 2 Below Left Side Of Instrument Panel
MAIN Fuse Fuse & Relay Block No. 1 (1)
Park/Neutral Position (PNP) Switch Left Side Of Engine Compartment, Mounted To Top Of Transaxle
Powertrain Control Module (PCM) Behind Right Side Of Instrument Panel, Near Glove Box
ST Fuse Junction Block No. 2 (2)
ST Relay Fuse & Relay Block No. 1 (1)
(1) See Fig 1 .
(2) See Fig 2 .

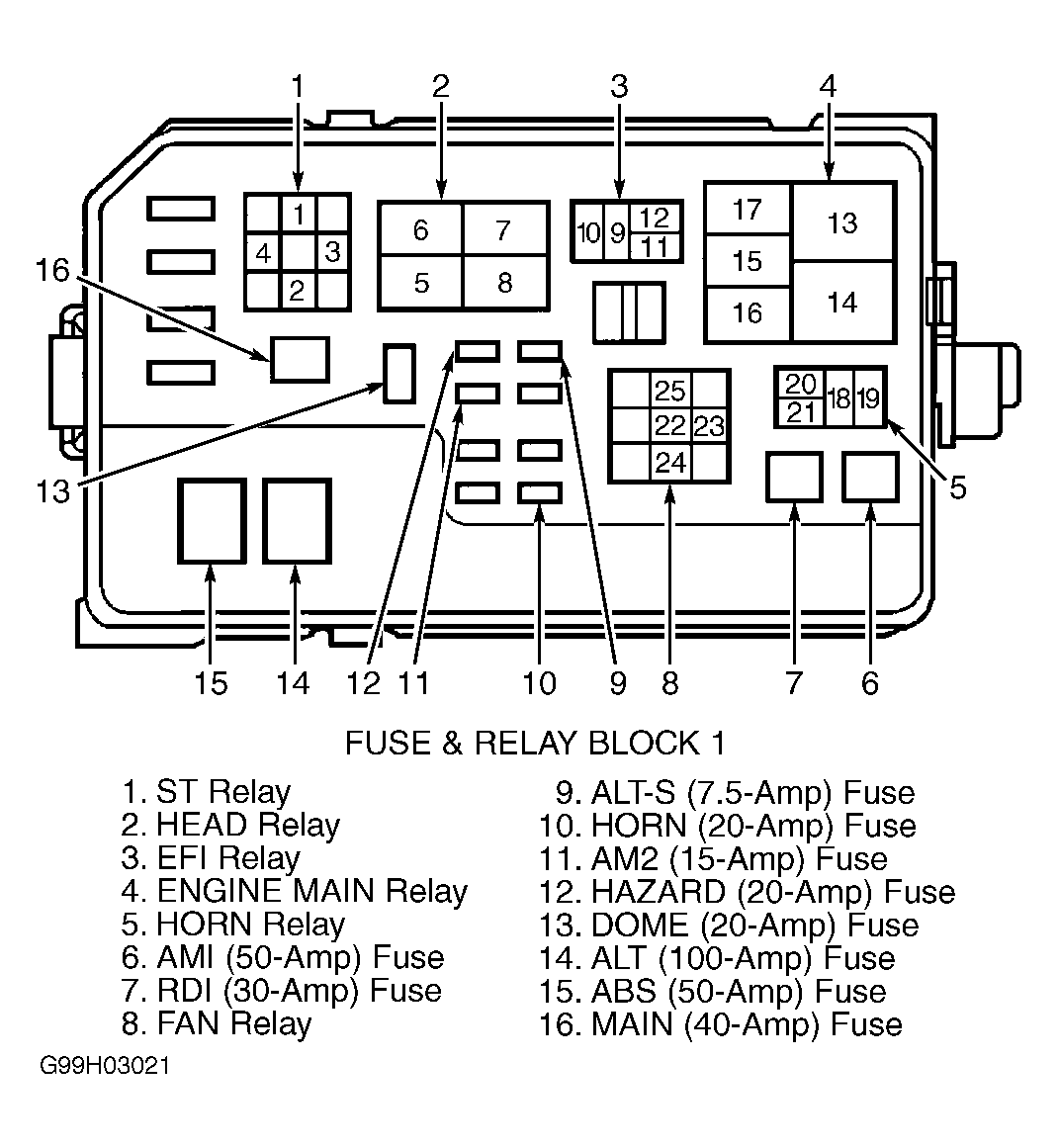

Fig 1: Identifying Fuse & Relay Block No. 1
G99H03021Courtesy of GENERAL MOTORS CORP.
