Component Locations

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet Chevy Express, and 2001 GMC Savana Special. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component locations, see Fig 1 and Fig 2 .
COMPONENT LOCATIONS

Component Location
Convenience Center Under Left Side Of Instrument Panel
Data Link Connector Under Left Side Of Instrument Panel
IP Fuse Block Lower Left Kick Panel
Power Door Lock Control Module Behind Left Kick Panel
Power Door Lock Relay Behind Center Of Instrument Panel
Remote Control Door Lock Receiver Attached To Cowl Above Engine Cover

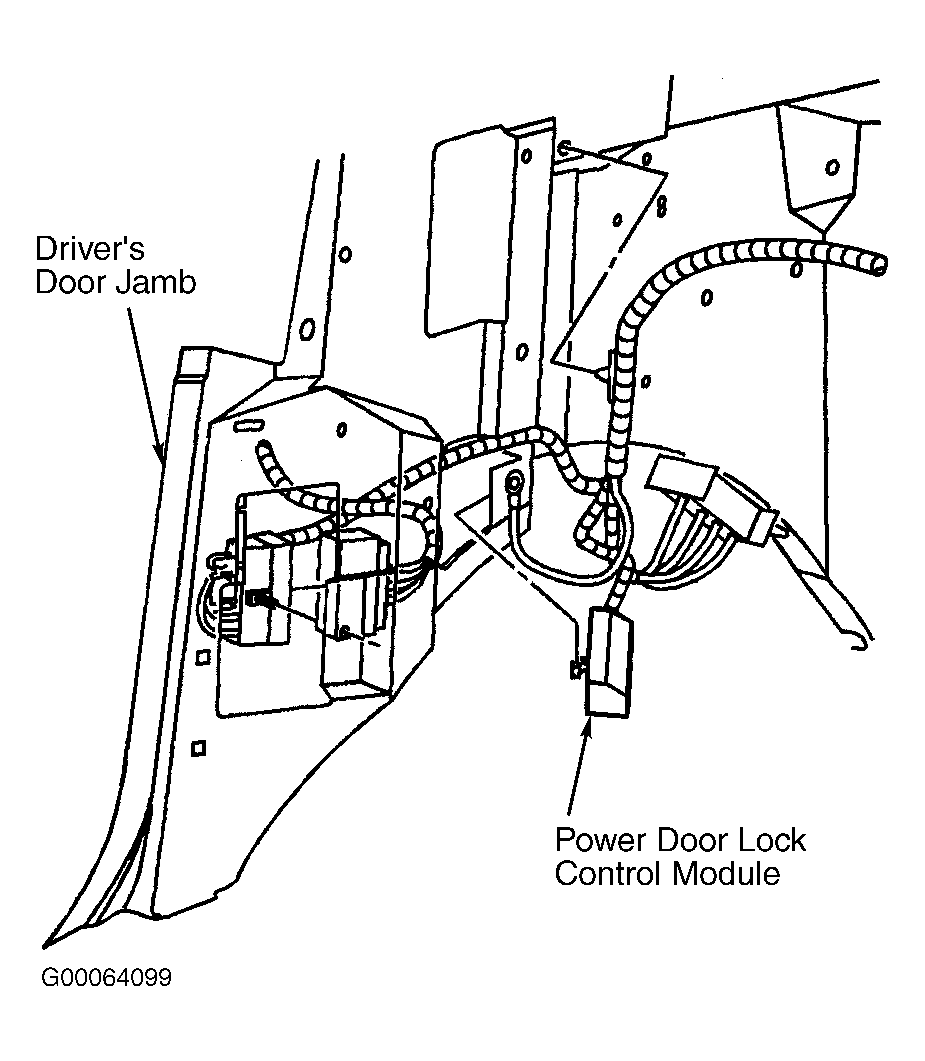

Fig 1: Identifying Power Door Lock Control Module Location
G00064099Courtesy of GENERAL MOTORS CORP.
