2000 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE

Component Locations

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component locations, refer to illustrations. See Fig 1-Fig 10 .
COMPONENT LOCATIONS

Component Location
Body Control Module Behind Right Side Of Instrument Panel, Near Blower Motor
Data Link Connector Below Left Side Of Instrument Panel, To Right Of Steering Column
Door Jamb Switch Near Base Of Respective "A" Pillar
Electronic Brake Control Module Top Of Left Front Frame Rail
Fusible Links In Front Of Left Front Wheelwell, Behind Underhood Fuse Block
Instrument Panel Cluster On Left Side Of Instrument Panel
Instrument Panel Fuse Block Behind Left Side Of Instrument Panel
Powertrain Control Module On Right Side Of Engine Compartment, Near Rear Of Wheelwell
Rear Compartment Lid Ajar Indicator Switch Part Of Rear Compartment Lid Latch
Rear Compartment Lid Release Relay Behind Left Side Of Instrument Panel
Sensing Diagnostic Module Behind Center Console, Near Parking Brake Handle
Splice Pack Connector Below Left Side Of Instrument Panel, Near Data Link Connector
Theft Deterrent Relay Behind Instrument Panel, Mounted To Passenger's Air Bag Module Bracket
Theft Deterrent Shock Sensor Behind Right Rear Inner Trim Panel, Mounted To Wheelwell
Underhood Fuse Block (Bottom & Top) Left Front Corner Of Engine Compartment
Window Control Module On Center Of Instrument Panel, Above Floor Tunnel

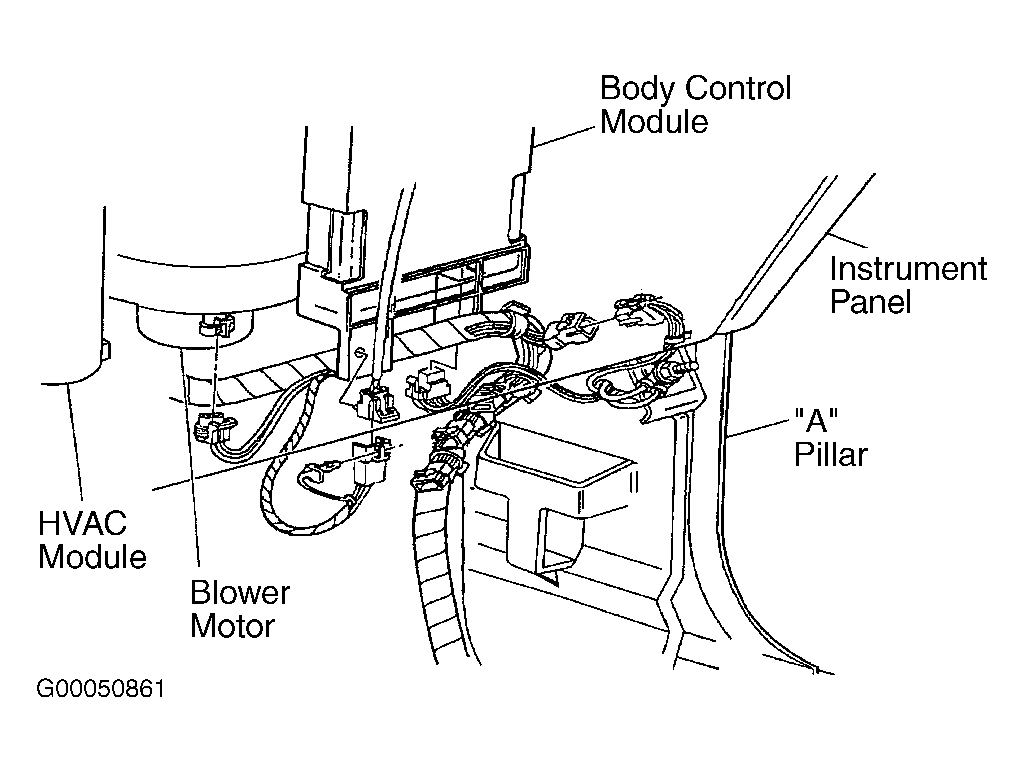

Fig 1: Locating Body Control Module
G00050861Courtesy of GENERAL MOTORS CORP.
