Removal Procedure
- Turn the ignition switch to the OFF position.
- Disconnect the EBCM harness connector.

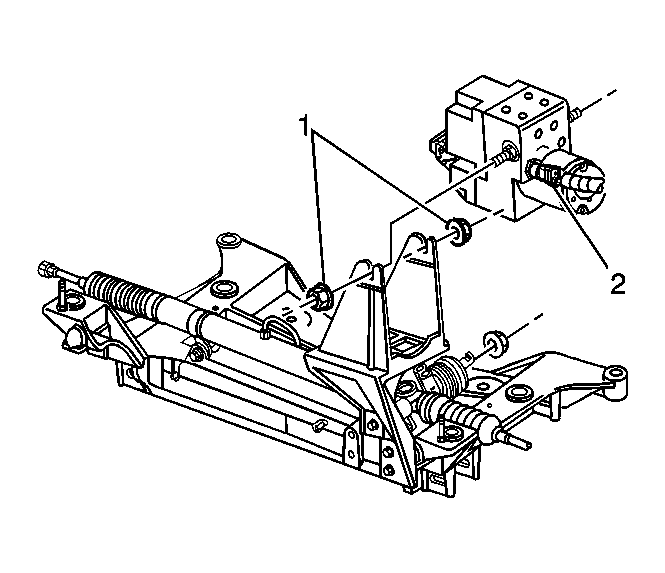

- Remove the two insulator nuts (1).
- Lift the EBCM/BPMV out of the bracket high enough to allow clearance to remove the insulator mounting bolt and the EBCM.
- Remove the insulator mounting bolt from the EBCM.

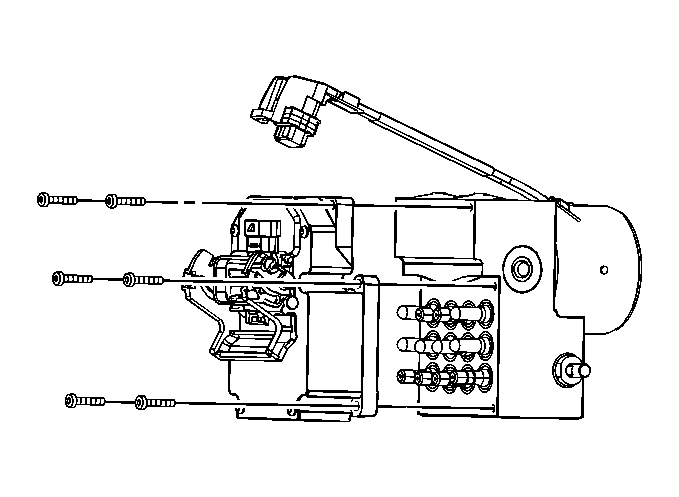

- Remove the six EBCM to BPMV bolts.
- Separate the EBCM from the BPMV by gently pulling apart until separated.
- Carefully remove the seal.
The seal may by reused if it is not cut or damaged.
