1999 Chevrolet Cutaway 7.4 JFACTORY OEM SERVICE PROCEDURE
Anti-Theft Module: Removal

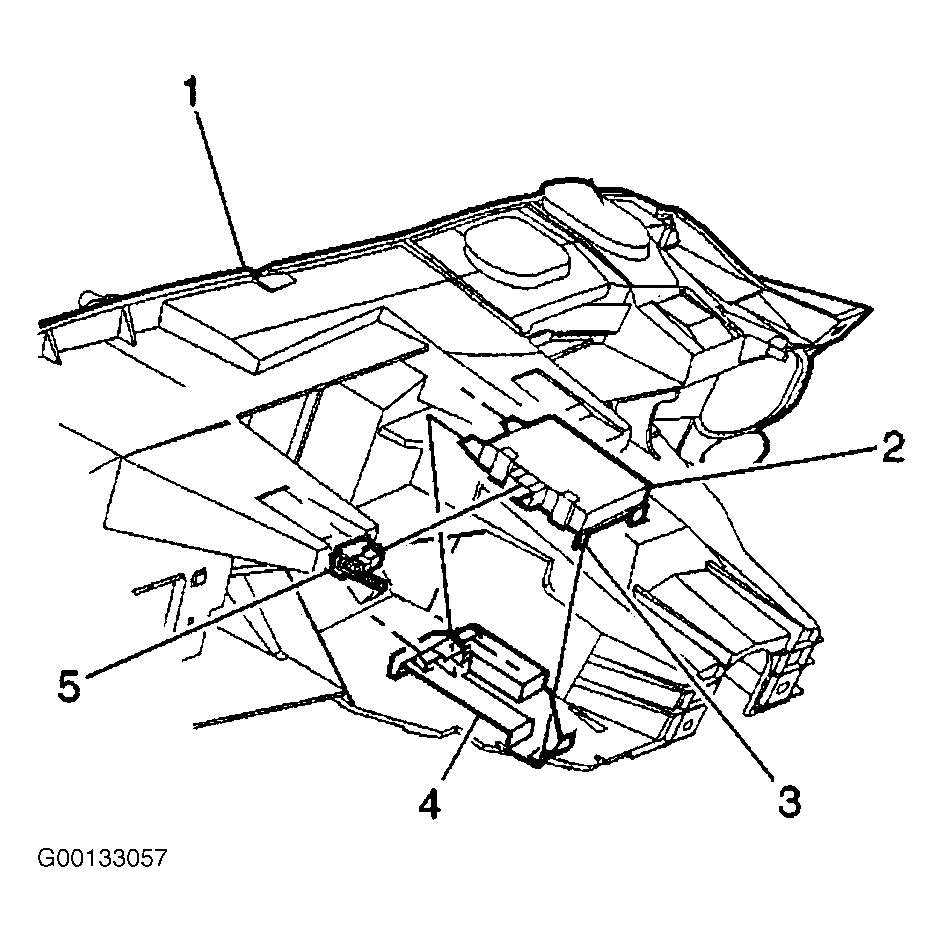

- Push the tab (3) at the rear of the Passlock™ control module in order to release the module from the Passlock™ control module bracket (4). See Fig 1.
- Slide the Passlock™ control module (2) out of the Passlock™ control module bracket (4).
- Disconnect the electrical connector (5) from the Passlock™ control module (2).
- Remove the Passlock™ control module (2) from the vehicle.
