Installation Procedure

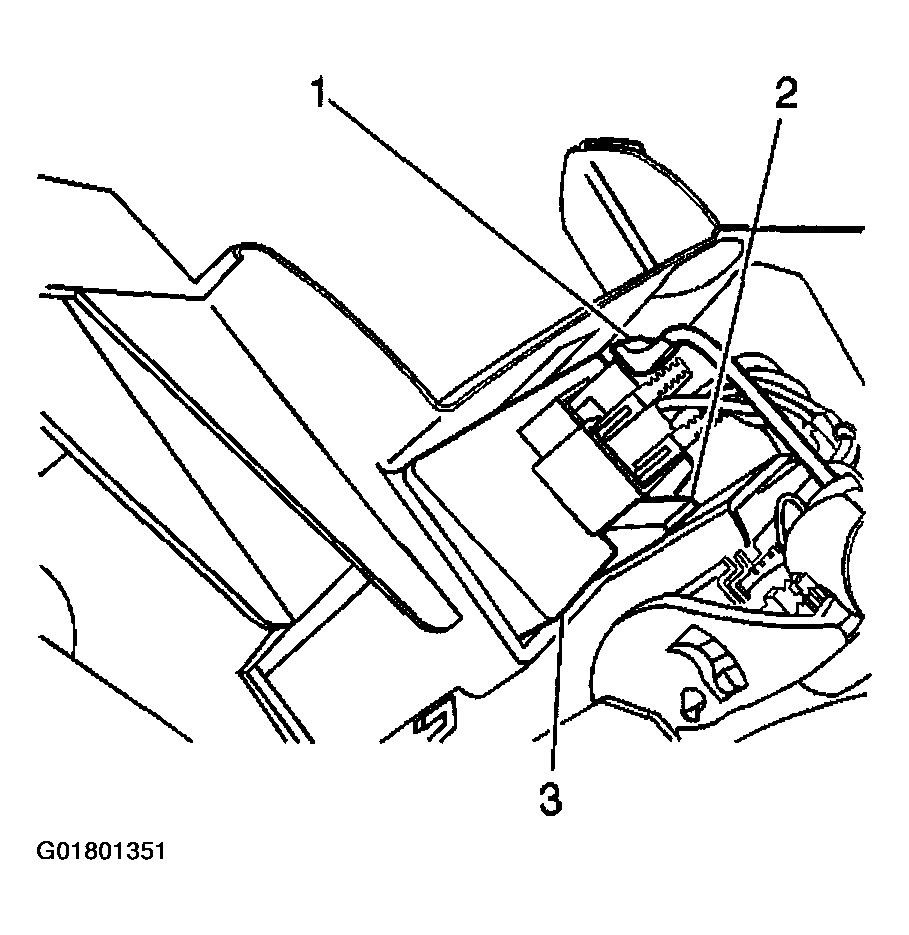

- Position the theft deterrent module to the opening in the IP retainer.
- Push the theft deterrent module (3) downward until the retainer clip (2) engages, securing the module to the IP retainer.
- Connect the theft deterrent module electrical connector (1).
- Install the Instrument Panel Trim Plate Bezel.
Refer to TRIM PLATE BEZEL REPLACEMENT -- IP CLUSTER .
- Perform the Programing Theft Deterrent System Components procedure. Refer to Programming Theft Deterrent System Components .
