Control Relay Circuit

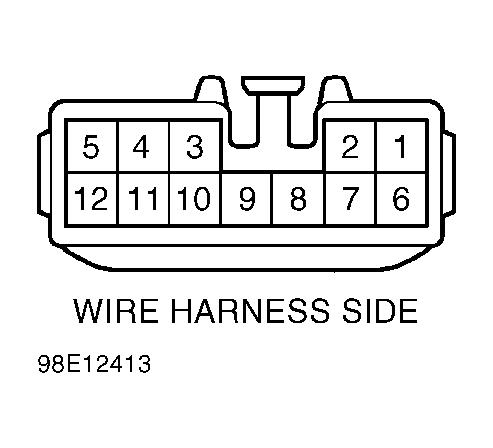

Disconnect control relay connector. Check for continuity or voltage as indicated at control relay connector terminals with sun roof switch or limit switch in specified positions. See CONTROL RELAY CIRCUIT TEST table. See Fig 1 . If test results are as specified, replace control relay. If test results are not as specified, repair or replace appropriate switch or wire. See WIRING DIAGRAMS .
| Terminal (1) & Switch Position | Condition | ||||
|---|---|---|---|---|---|
| No. 1 | |||||
| SLIDE Off Or Closed | No Continuity | ||||
| Open | Continuity | ||||
| No. 2 | |||||
| SLIDE Off Or Open | No Continuity | ||||
| Closed | Continuity | ||||
| No. 3 | |||||
| TILT Off Or Down | No Continuity | ||||
| Up | Continuity | ||||
| No. 4 | No Continuity | ||||
| Nos. 4 & 5 | Continuity | ||||
| No. 6 | |||||
| Ignition Switch LOCK Or ACC | No Voltage | ||||
| Ignition Switch ON | Battery Voltage | ||||
| No. 7 | |||||
| TILT Off Or Up | No Continuity | ||||
| Down | Continuity | ||||
| No. 8 | |||||
| Limit Switch No. 1 | |||||
| Off | No Continuity | ||||
| On | Continuity | ||||
| No. 9 | |||||
| Limit Switch No. 2 | |||||
| Off | No Continuity | ||||
| On | Continuity | ||||
| No. 11 | Continuity | ||||
| No. 12 | Battery Voltage | ||||
|
|||||
