1998 Chevrolet Prizm LSi, Automatic, A245E/MS7FACTORY OEM SERVICE PROCEDURE
Door Lock Manual Switch (Without Power Windows)
- Locate door lock manual switch in front door. See Figure . Remove front door trim. See FRONT DOOR TRIM under REMOVAL & INSTALLATION. Remove service hole cover.

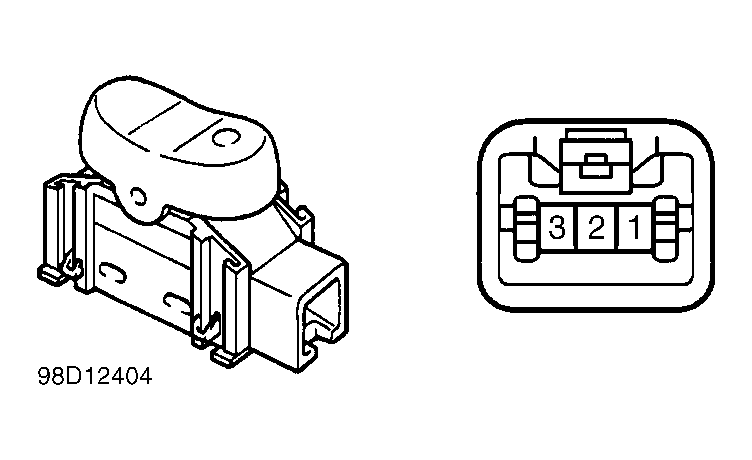

- Locate and disconnect manual switch connector. See Fig 1 . Ensure continuity exists between manual switch terminals No. 2 and 3 with manual switch in LOCK position. Ensure continuity exists between manual switch terminals No. 1 and 3 with manual switch in UNLOCK position. If continuity is not as specified, replace manual switch.
