Diagnostic Aids

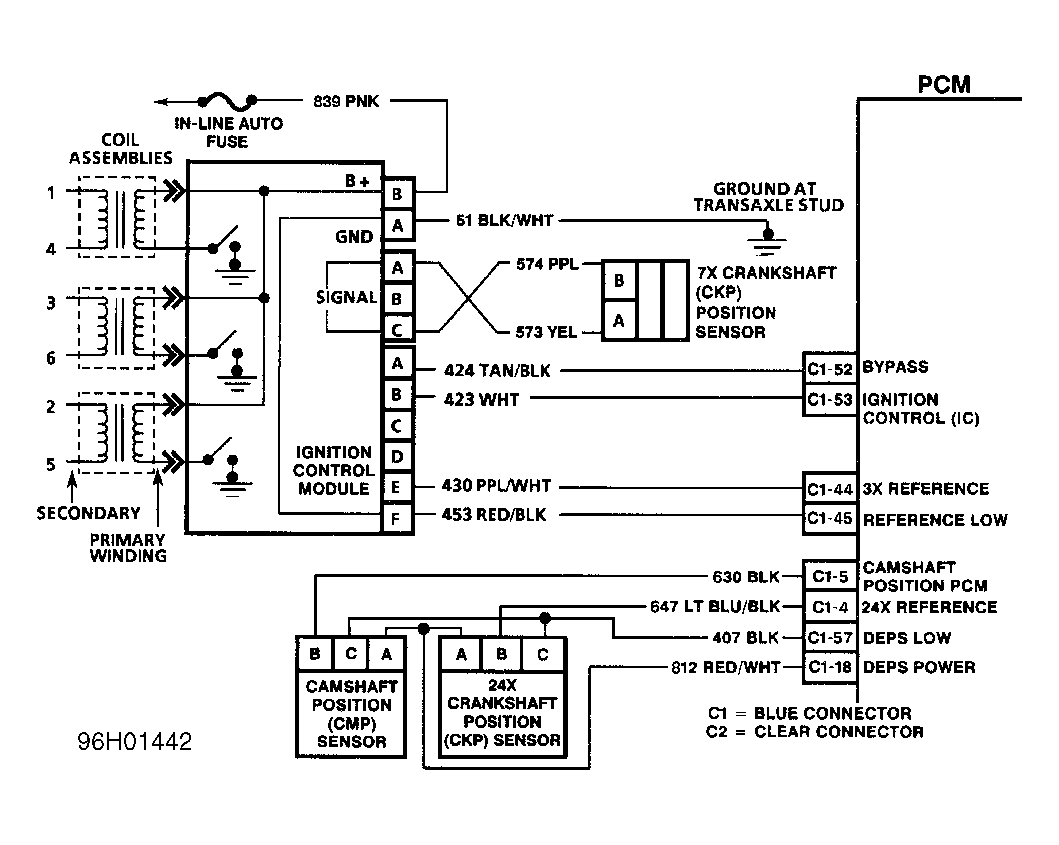

Check for incorrect harness routing near secondary ignition components, ignition coil arcing to wiring harness or ICM. Check ignition coils for cracks, carbon tracking or other signs of damage. Check for secondary ignition wire(s) arcing to wiring harness.
Check for faulty connections or damaged harness. Observe a voltmeter connected to 24X CKP sensor reference circuit at PCM harness connector while moving all related harness and connectors. A change in voltage indicates fault location.
Check for faulty connections or damaged harness. Observe a voltmeter connected to 18X reference circuit at PCM harness connector while moving all related harness and connectors. A change in voltage indicates fault location.
Check for incorrect harness routing near secondary ignition components, ignition coil arcing to wiring harness or ICM. Check ignition coils for cracks, carbon tracking or other signs of damage. Check for secondary ignition wire(s) arcing to wiring harness.
