1995 Chevrolet S10/T10 P/U 4WD V6-262 4.3L VIN W CPIFACTORY OEM SERVICE PROCEDURE
Engine Data 2
The Tech 1 scan data listed in this table may be used for comparison after completing the On-Board Diagnostic System Check and finding the on-board diagnostics functioning properly with no diagnostic codes displayed. The "Typical Tech 1 Data Values" are an average of display values recorded from normally operating vehicles and are intended to represent what a normally functioning system would display. The values you get may vary due to low battery charge or other reasons, but they should be very close.
NOTE: A SCAN TOOL THAT DISPLAYS FAULTY DATA SHOULD NOT BE USED, AND THE PROBLEM SHOULD BE REPORTED TO THE MANUFACTURER. THE USE OF A FAULTY SCAN TOOL CAN RESULT IN MISDIAGNOSIS AND UNNECESSARY PARTS REPLACEMENT.
Only the parameters listed below are used for diagnosis. If a scan tool reads other parameters, the values are not recommended by General Motors for use in diagnosis. For more description on the values and use of the scan tool to diagnosis VCM inputs. If all values are within the range illustrated, refer to "Diagnosis By Symptom". Testing and Inspection
TEST UNDER FOLLOWING CONDITIONS:
^ Engine at Operating Temperature
^ Engine Idling in "Closed Loop"
^ Closed Throttle
^ Park/Neutral
^ All Accessories "OFF"
NOTE: A SCAN TOOL THAT DISPLAYS FAULTY DATA SHOULD NOT BE USED, AND THE PROBLEM SHOULD BE REPORTED TO THE MANUFACTURER. THE USE OF A FAULTY SCAN TOOL CAN RESULT IN MISDIAGNOSIS AND UNNECESSARY PARTS REPLACEMENT.
Only the parameters listed below are used for diagnosis. If a scan tool reads other parameters, the values are not recommended by General Motors for use in diagnosis. For more description on the values and use of the scan tool to diagnosis VCM inputs. If all values are within the range illustrated, refer to "Diagnosis By Symptom". Testing and Inspection
TEST UNDER FOLLOWING CONDITIONS:
^ Engine at Operating Temperature
^ Engine Idling in "Closed Loop"
^ Closed Throttle
^ Park/Neutral
^ All Accessories "OFF"

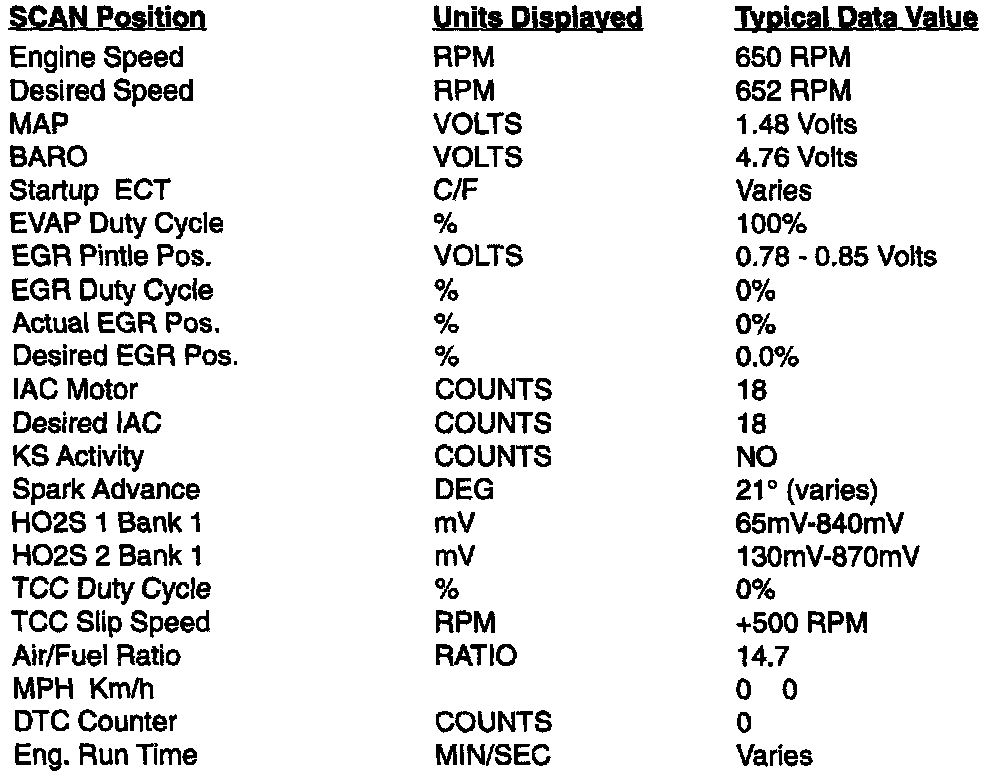

Typical Scan Tool Data Values:
