Diagnostic Aids

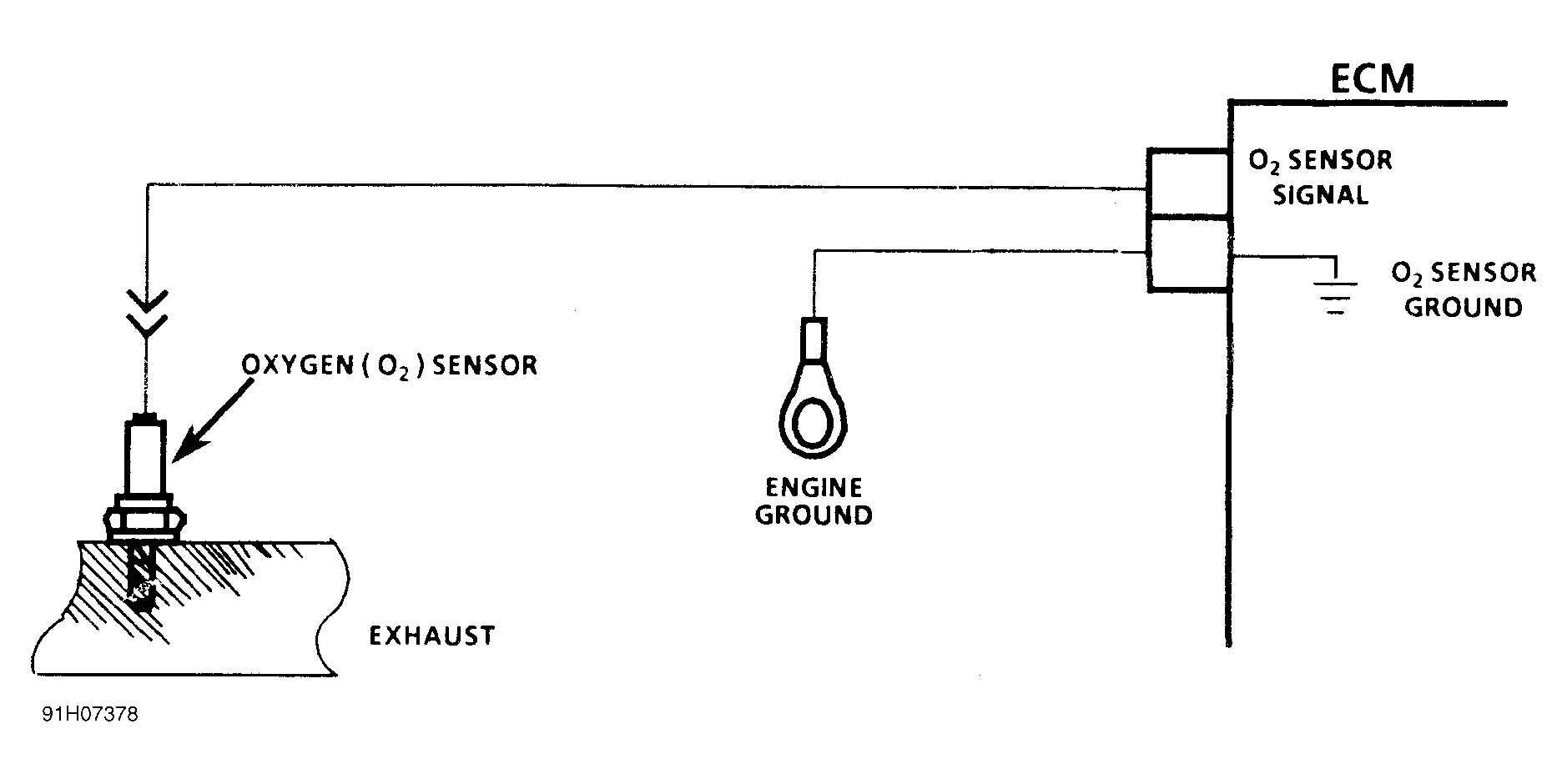

Control module will not go into closed loop if Code 13 is set. Code 13 may set if vehicle runs out of fuel or stalls while vehicle is in motion. If oxygen sensor ground becomes loose, a false oxygen sensor reading will occur. This can result in a Code 13 being set. On models equipped with an oxygen sensor heating element, element resistance should be 3.5-14 ohms.
| Application | ECM Terminal | Wire Color | |
|---|---|---|---|
| 3.4L (VIN S) "W " Body | |||
| O2 Signal | B21 | Purple | |
| O2 Ground | B20 | Tan | |
| 3.4L (VIN S) "F" Body | |||
| Left O2 Signal | B21 | Purple/White | |
| Left O2 Ground | B20 | Black/White | |
| Right O2 Signal | B22 | Purple | |
| Right O2 Ground | B23 | Black/White | |
