Diagnostic Aids

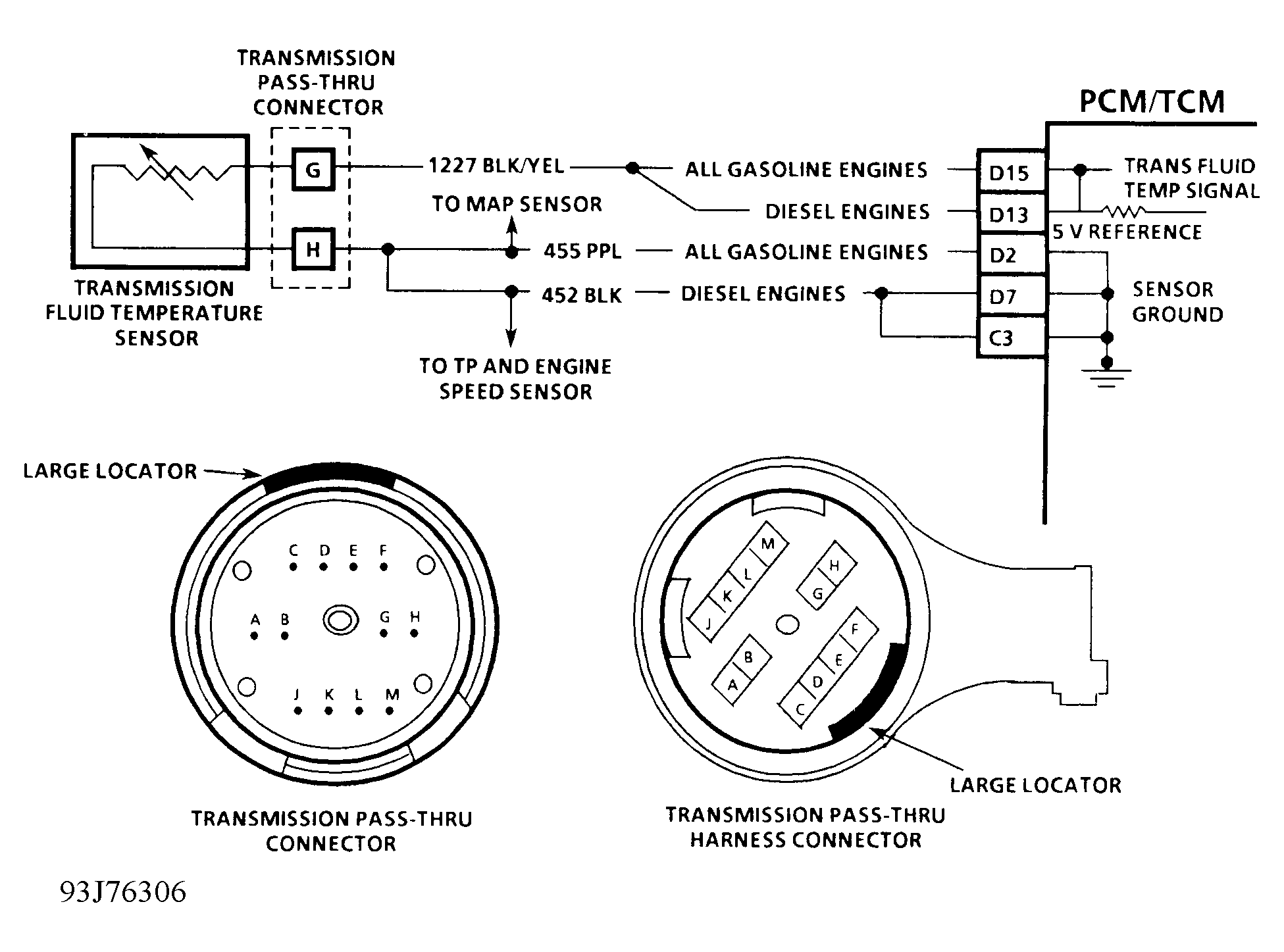

Scan tester displays transmission fluid temperature in degrees Centigrade. After transmission is running, the displayed temperature should rise steadily to about 100°C then stabilize. A faulty connection or an open in circuit No. 455/452 or circuit No. 1227 will result in a Code 59. Test the transmission sensor at various temperature levels to determine if sensor is out of calibration. See TRANSMISSION SENSOR - TEMP TO RESISTANCE chart. An out-of-calibration sensor could result in firm shifts or TCC enabled complaint. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES article in this section.
