1993 Chevrolet APVFACTORY OEM SERVICE PROCEDURE

G Series Van

ALIGNMENT SPECIFICATIONS ("G" SERIES VAN)

Application

Preferred

Range

Camber ⁽¹⁾

0.5

0-1

Caster ⁽¹⁾

⁽³⁾

Toe-In ⁽²⁾

0 (0)

to 0.05 (-1.5 to 1.5)

⁽¹⁾	Measurement in degrees.

⁽²⁾	Measurement in inches (mm).

⁽³⁾	See Figure for caster specifications.

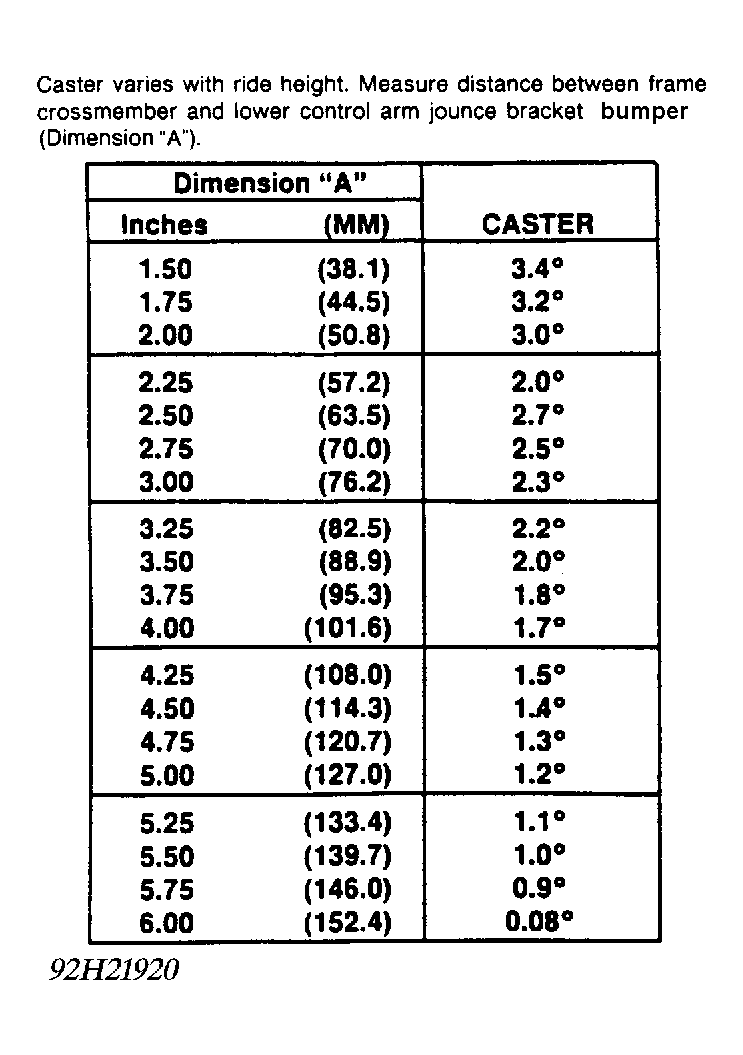

Fig 1: Caster Specifications ("G" Series Van)

Courtesy of GENERAL MOTORS CORP.
