1992 Chevrolet G 30 Van V8-350 5.7LFACTORY OEM SERVICE PROCEDURE
System Diagnosis - Secondary Testing
TEST 1-3
TEST 3A
TEST 3B
TEST 3C
TEST 3D
TEST 3E-3F
Spark Plug Diagnosis
1. Remove spark plugs, and inspect them for carbon deposits and damage. Ensure spark plug gap is at correct specifications.
2. If plugs are satisfactory, reinstall and check for a mechanical or fuel system problem.
3. If plugs are not satisfactory, clean or replace as necessary.

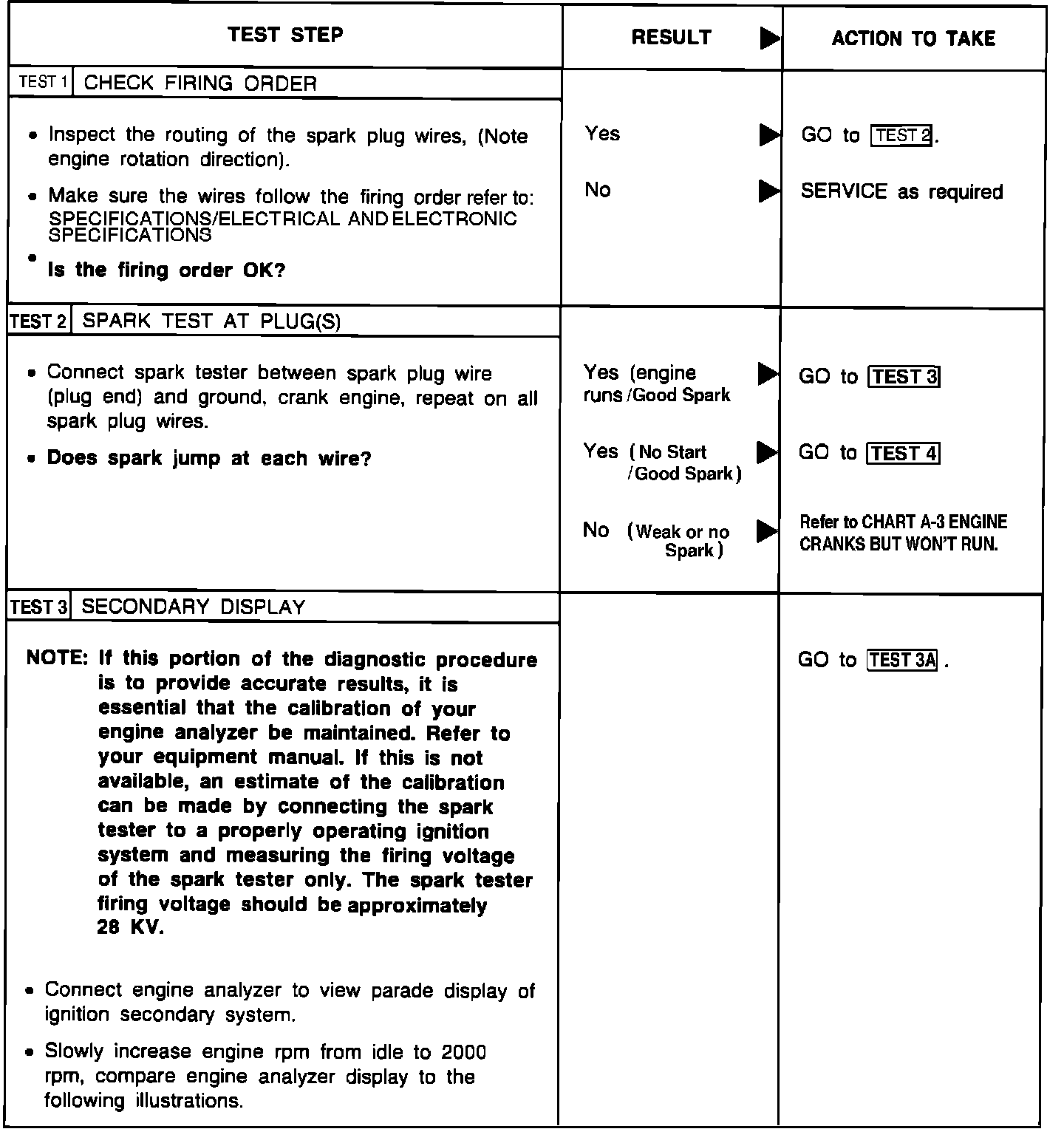

Test 1-3:

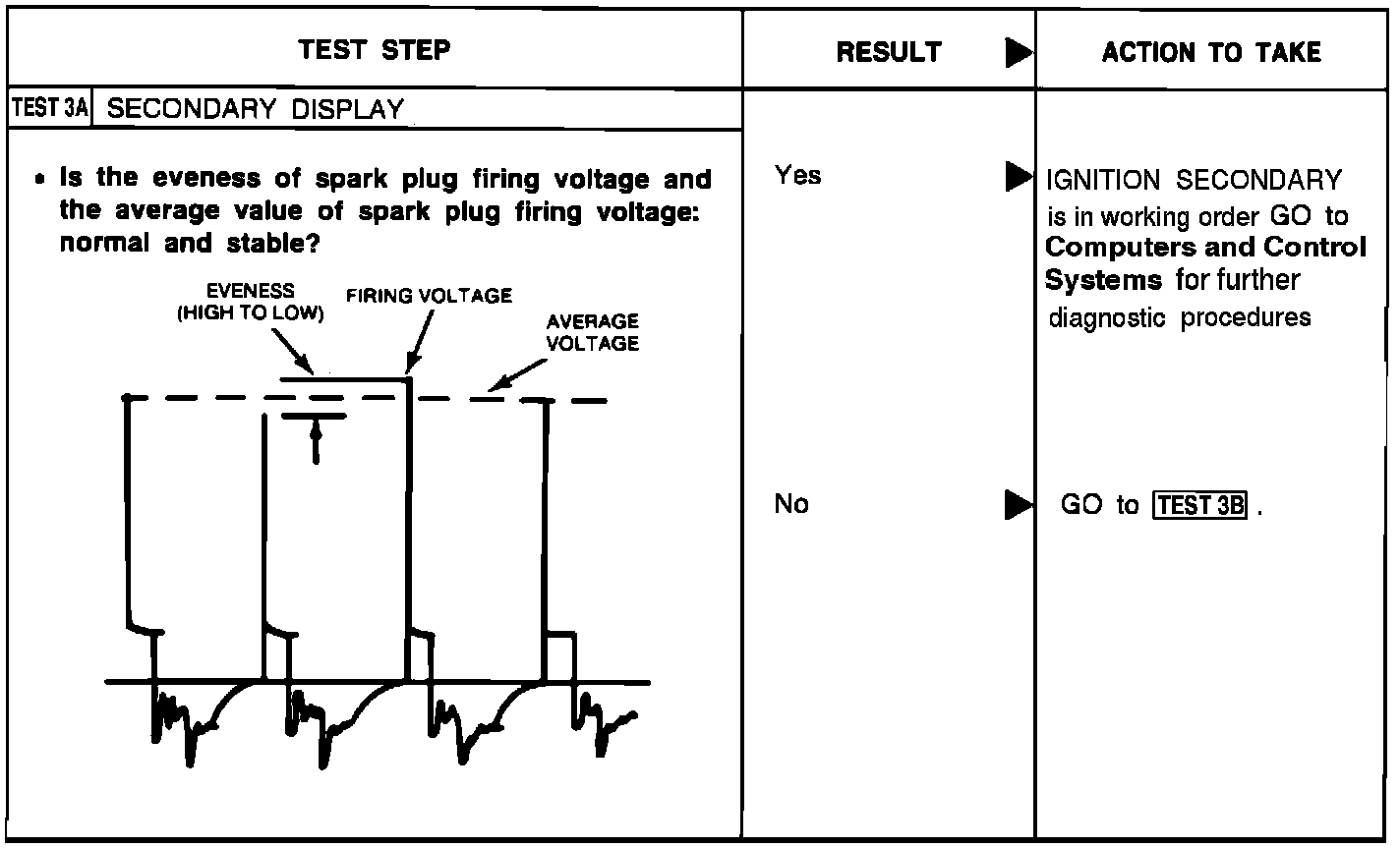

TEST 3A
Test 3A:

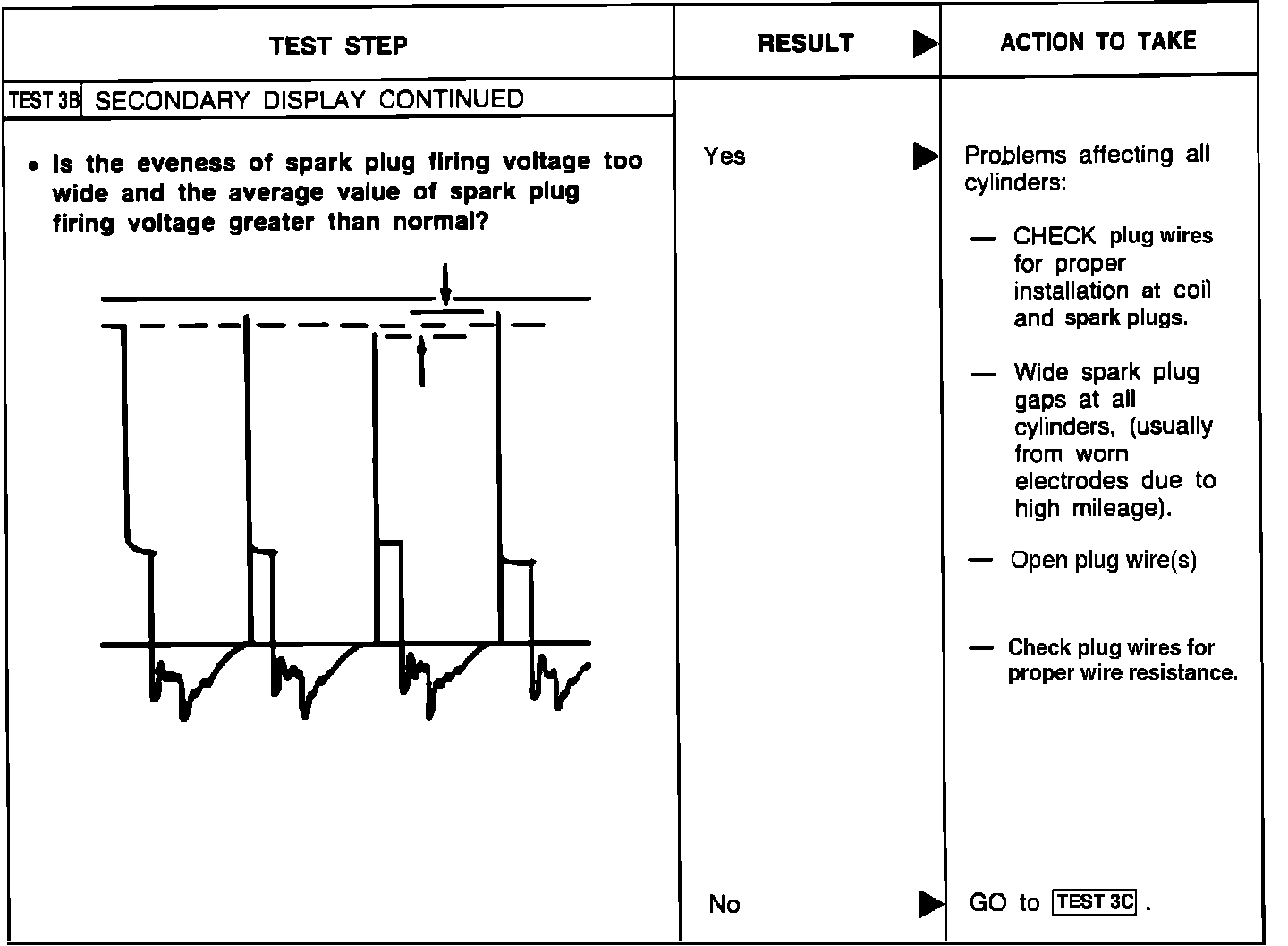

TEST 3B
Test 3B:

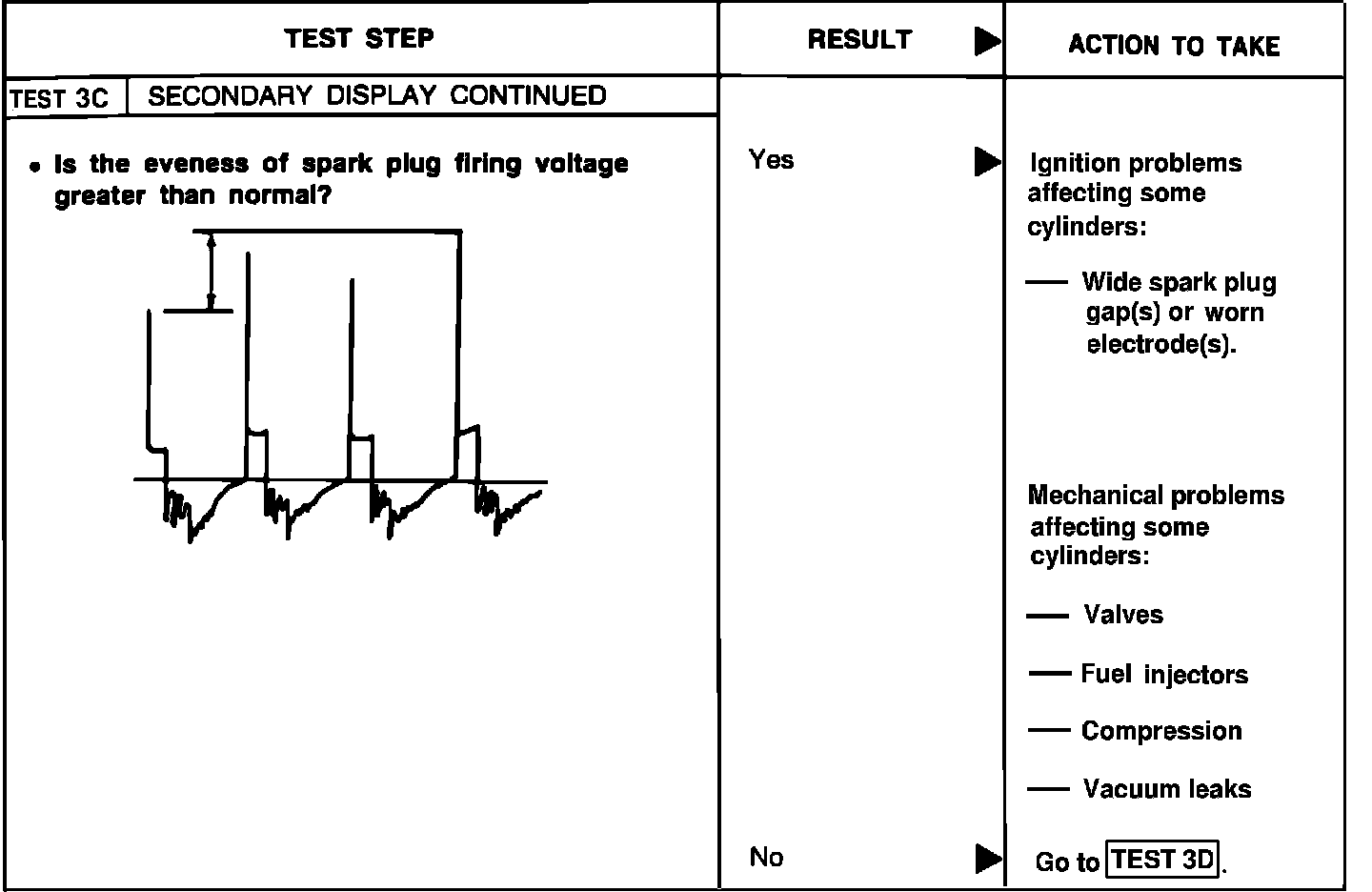

TEST 3C
Test 3C:

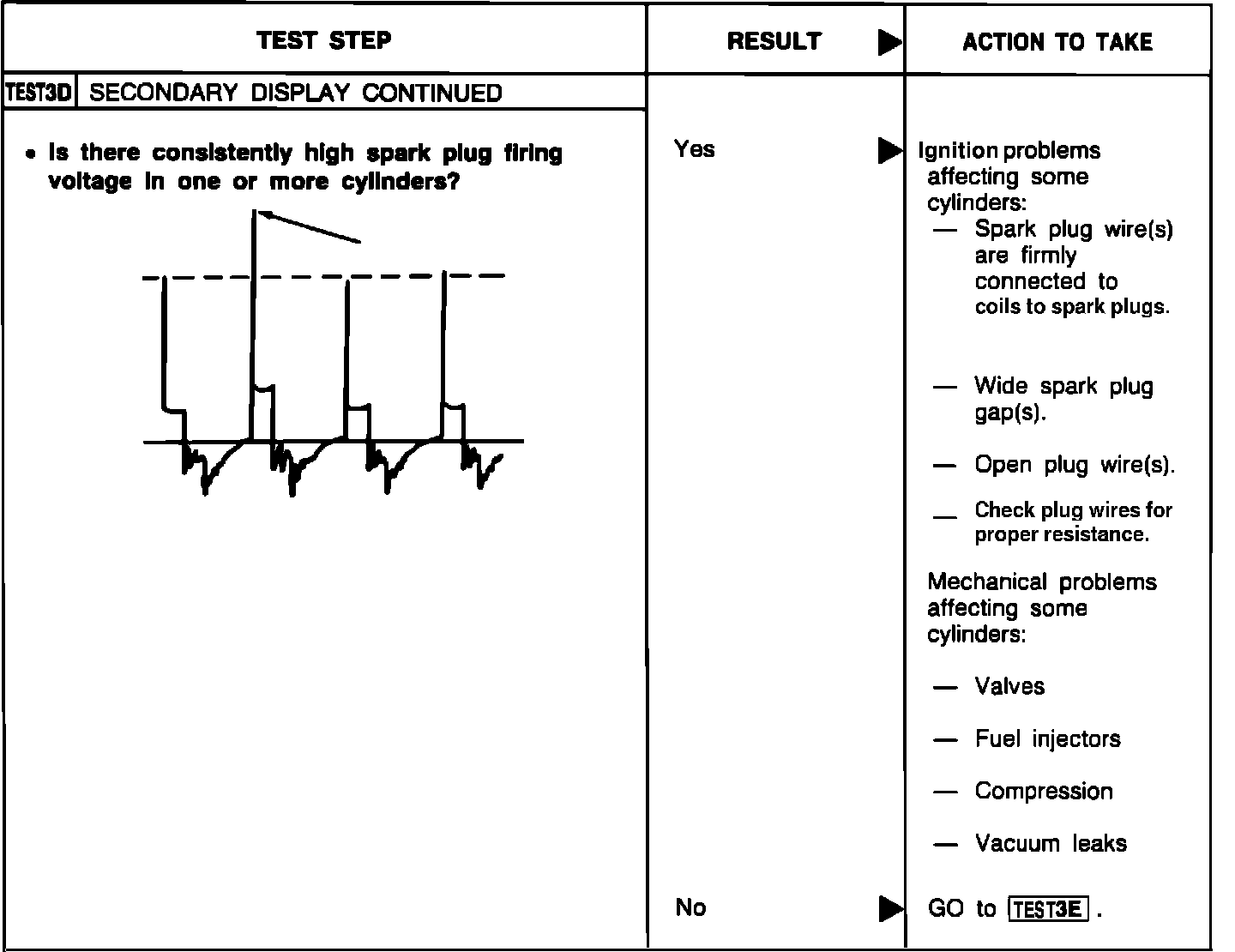

TEST 3D
Test 3D:

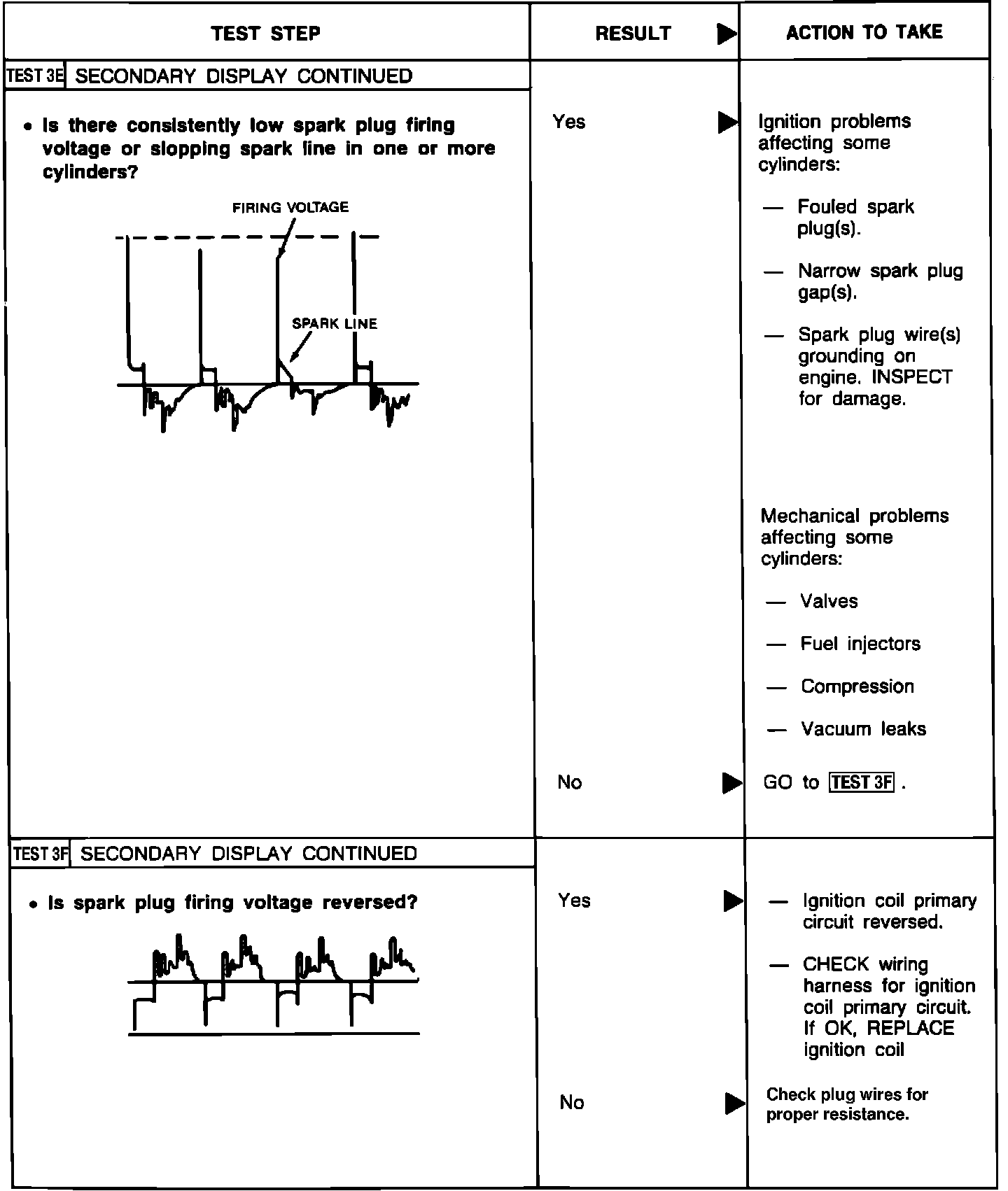

TEST 3E-3F
Test 3E-3F:

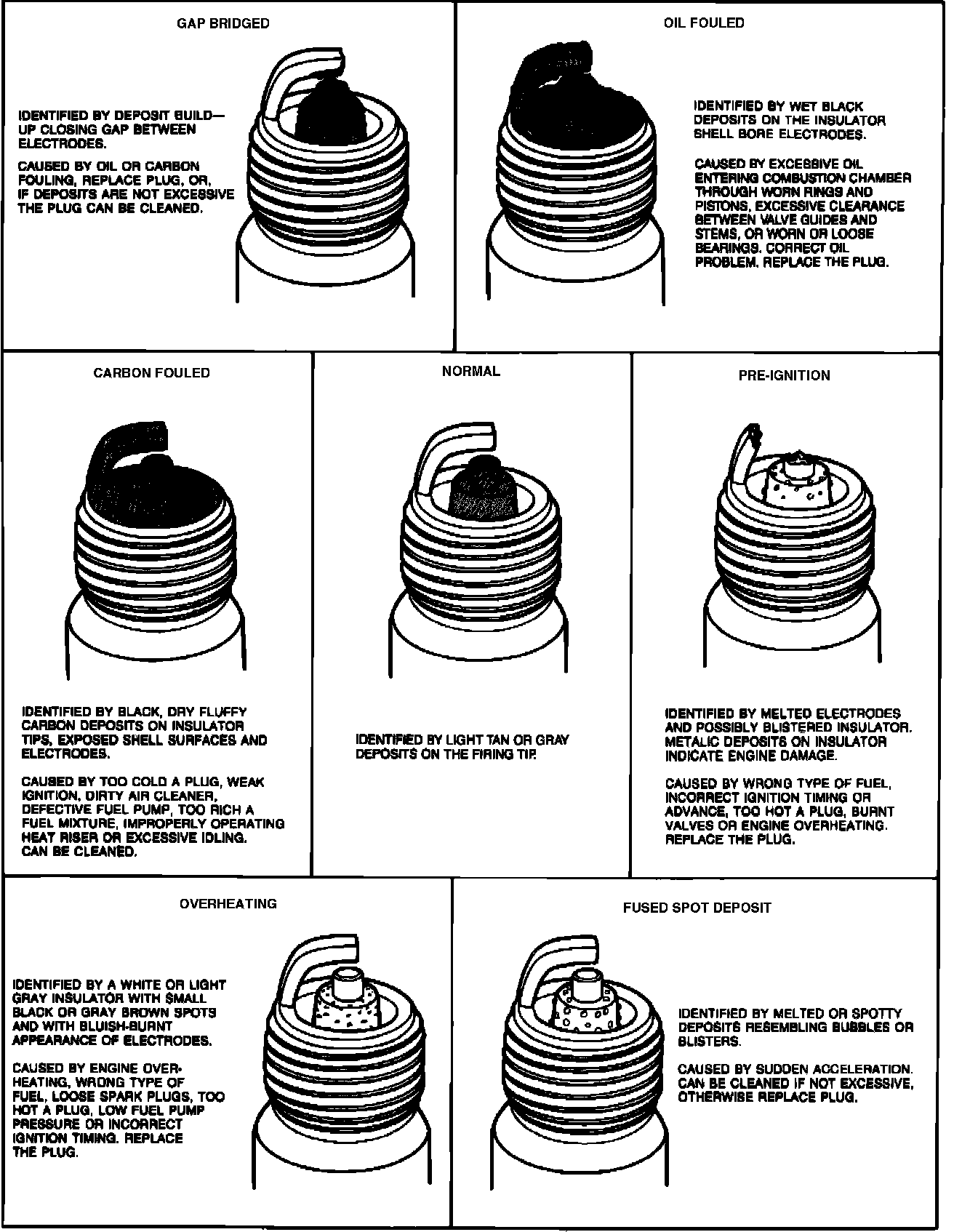

Spark Plug Diagnosis
Spark Plug Diagnosis:
1. Remove spark plugs, and inspect them for carbon deposits and damage. Ensure spark plug gap is at correct specifications.
2. If plugs are satisfactory, reinstall and check for a mechanical or fuel system problem.
3. If plugs are not satisfactory, clean or replace as necessary.
