1992 Chevrolet G 30 Van V8-350 5.7LFACTORY OEM SERVICE PROCEDURE
Park/Neutral (P/N) Switch Diagnosis
Park Neutral Switch Circuit Diagnosis:
Park/Neutral Switch:

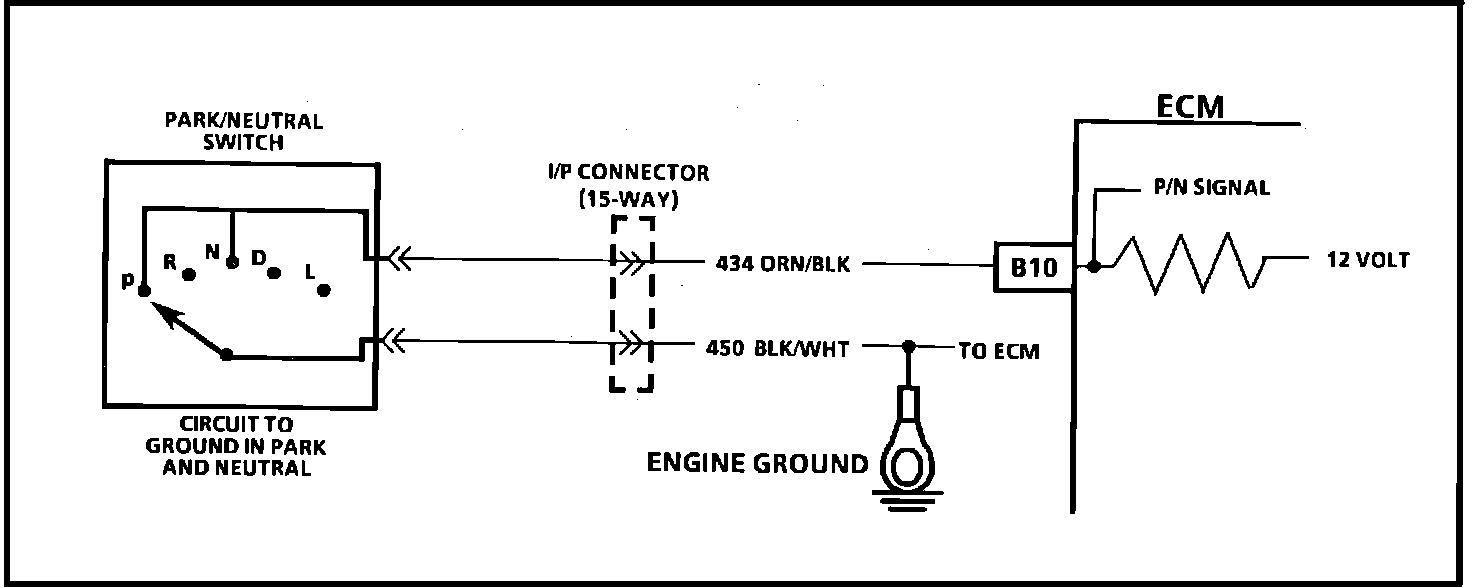

Circuit Description:
The Park/Neutral (P/N) switch contacts are closed to ground in park or neutral and open in drive ranges.
The ECM supplies ignition voltage, through a current limiting resistor, to CKT 434 and senses a closed switch, when the voltage on CKT 434 drops to less than one volt.
The ECM uses the P/N signal as one of the inputs to control:
^ Idle Air Control (IAC)
^ Vehicle Speed Sensor (VSS) Diagnostics
Test Description:

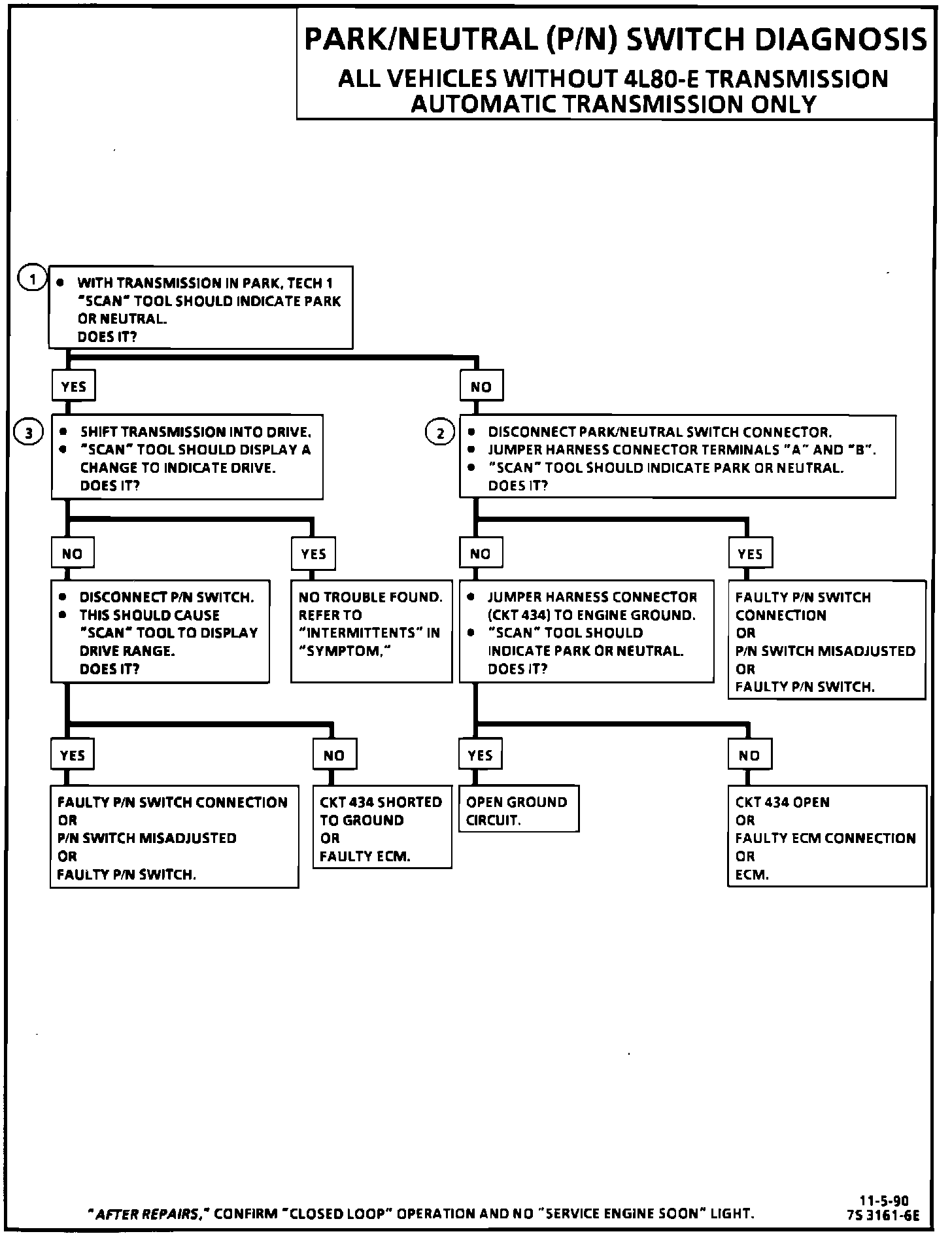

Numbers below refer to circled numbers on the diagnostic chart.
1. Checks for a closed switch to ground in park position. Different makes of "Scan" tools will read P/N differently. Refer to operators manual for type of display used for a specific tool.
2. Checks for an open switch in drive or reverse range.
3. Be sure "Scan" indicated drive, even while wiggling shifter to test for an intermittent or misadjusted switch in drive range.
Diagnostic Aids:
If CKT 434 always indicates drive (open), a drop in the idle may exist when the gear selector is moved into drive range.
