1992 Chevrolet G 30 Van V8-350 5.7LFACTORY OEM SERVICE PROCEDURE
Electronic (Engine) Control Module (ECM)

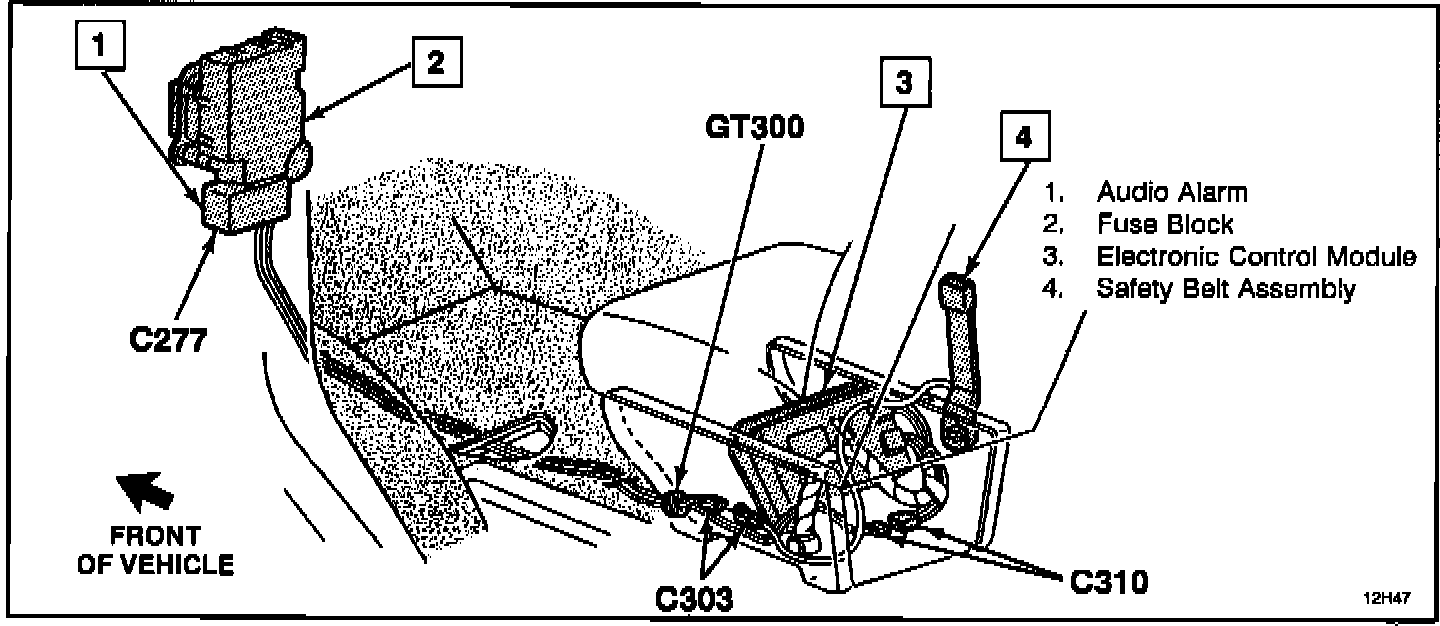

Safety Belt Retractor Switch:

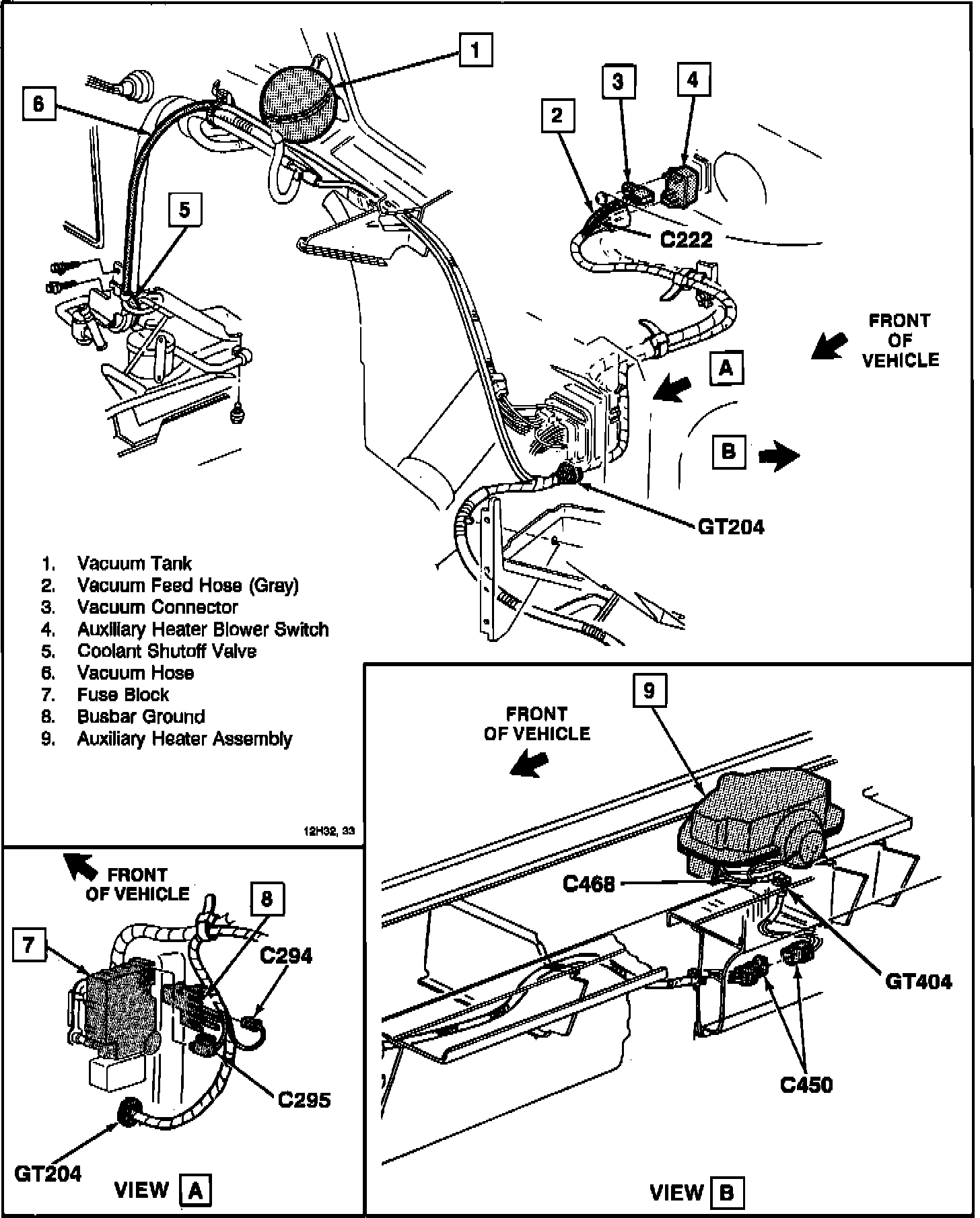

Auxiliary Heater And Wiring:

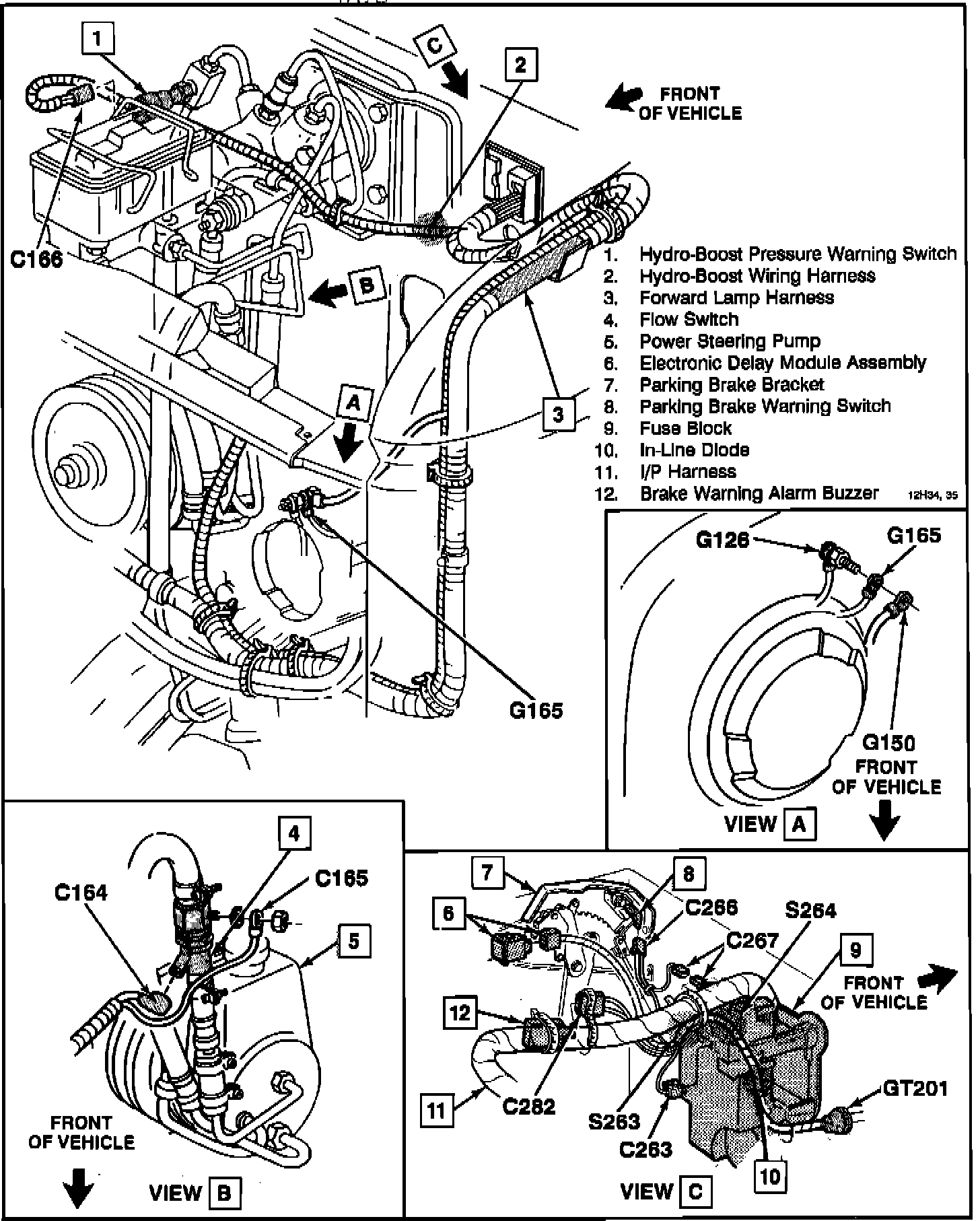

Brake Wiring Harness:

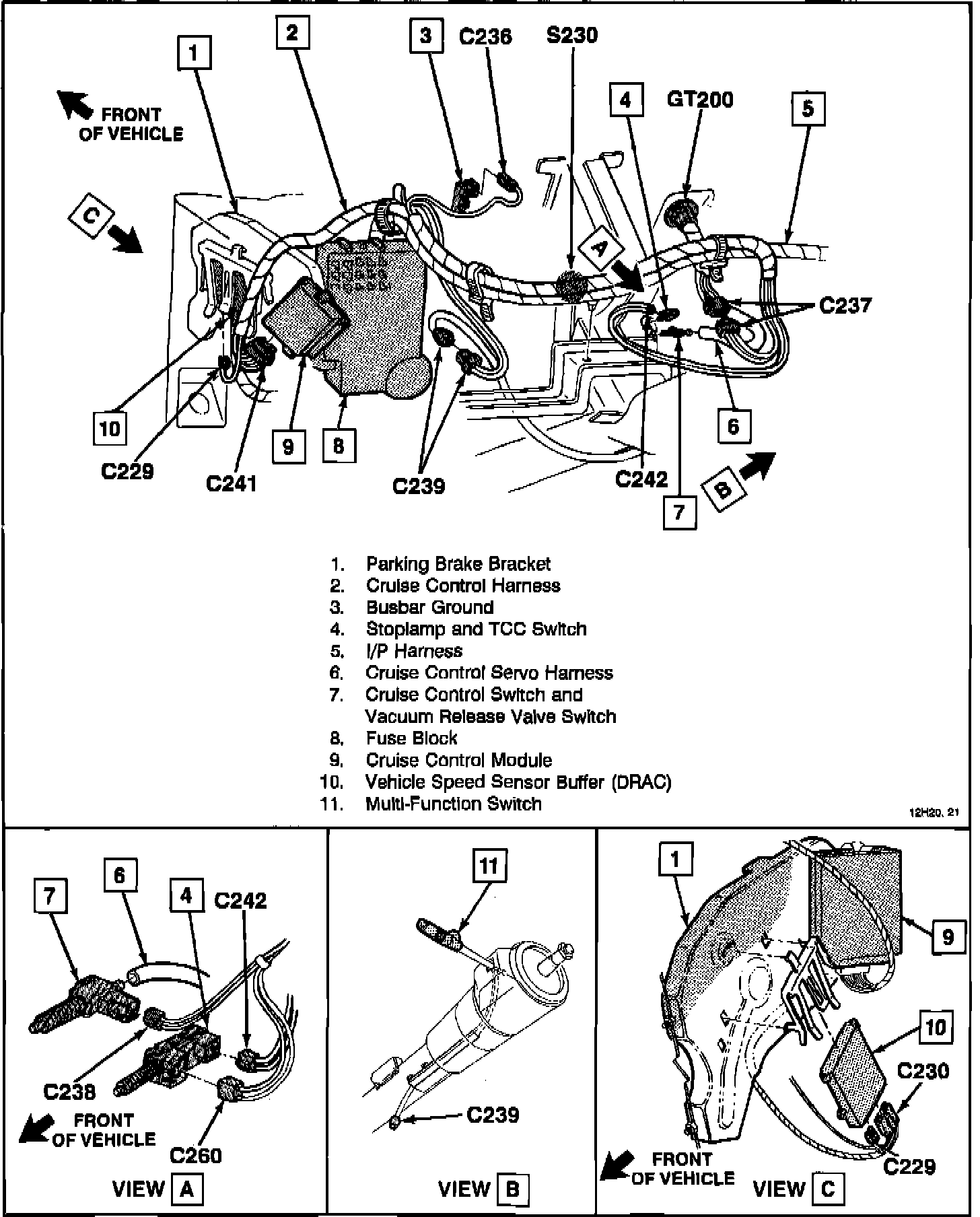

Cruise Control Wiring And Multi-Function Switch:
Heater-A/C Control And I/P Wiring And Auxiliary A/c:
I/P Harness And Controls:

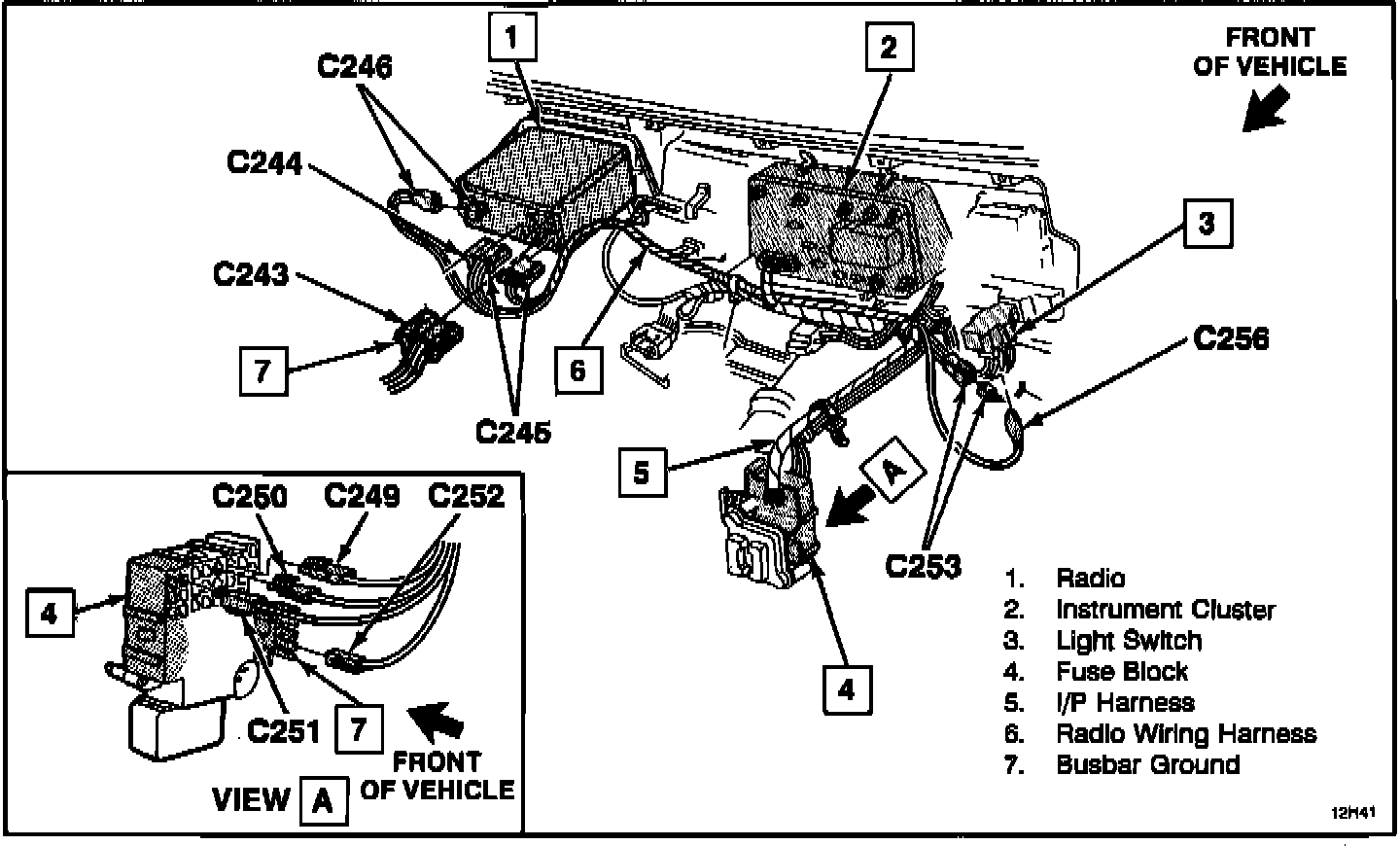

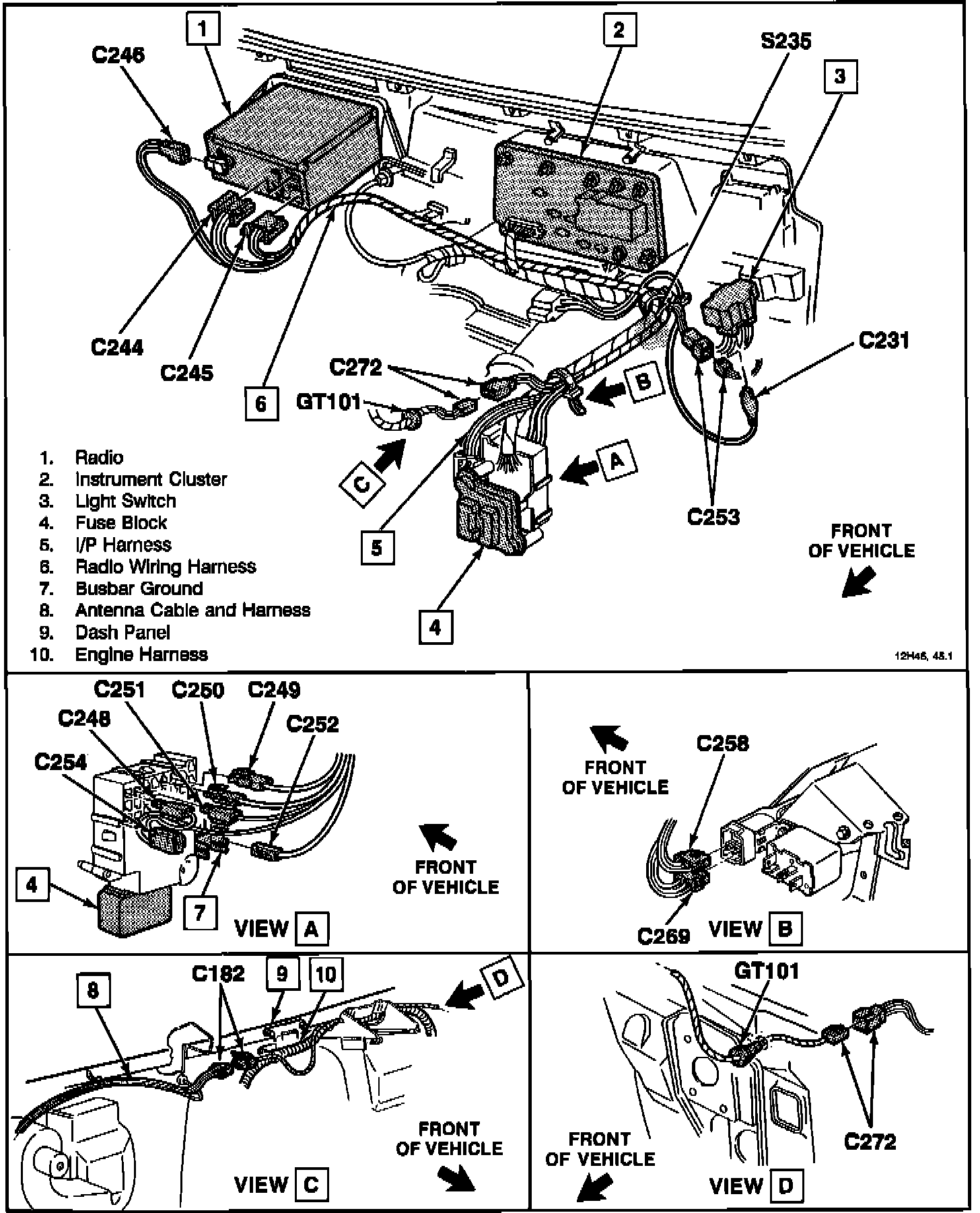

Radio Feed Harness:
Radio Feed Harness W/Power Antenna:
Power Door Locks And Windows I/P Wiring:
Power Door Locks, Windows And Mirrors W/Keyless Entry:

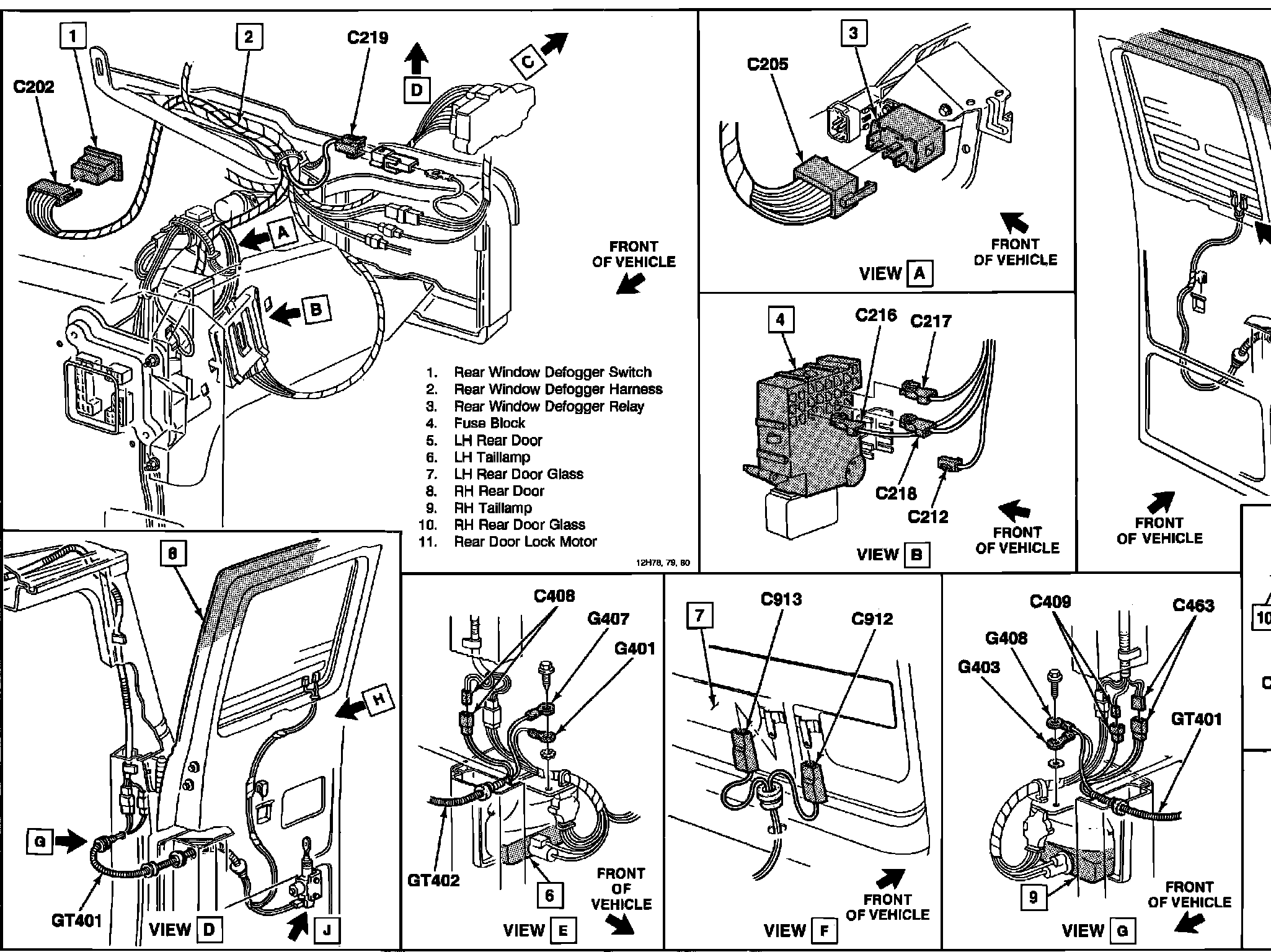

οΏ½%οΏ½Rear Window Defogger Wiring:
Dome Lamp Harness:

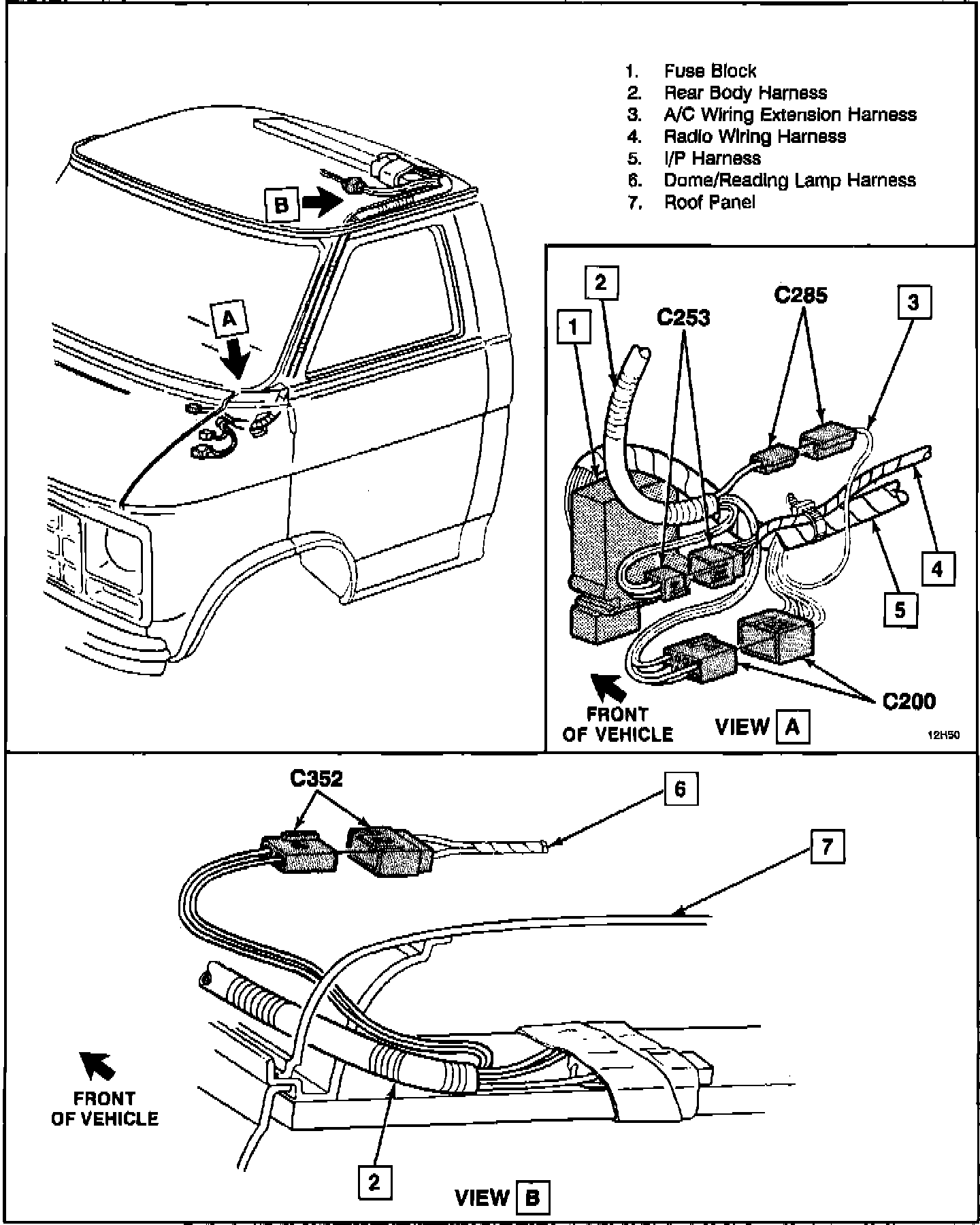

οΏ½NοΏ½Dome/Reading Lamp Wiring:

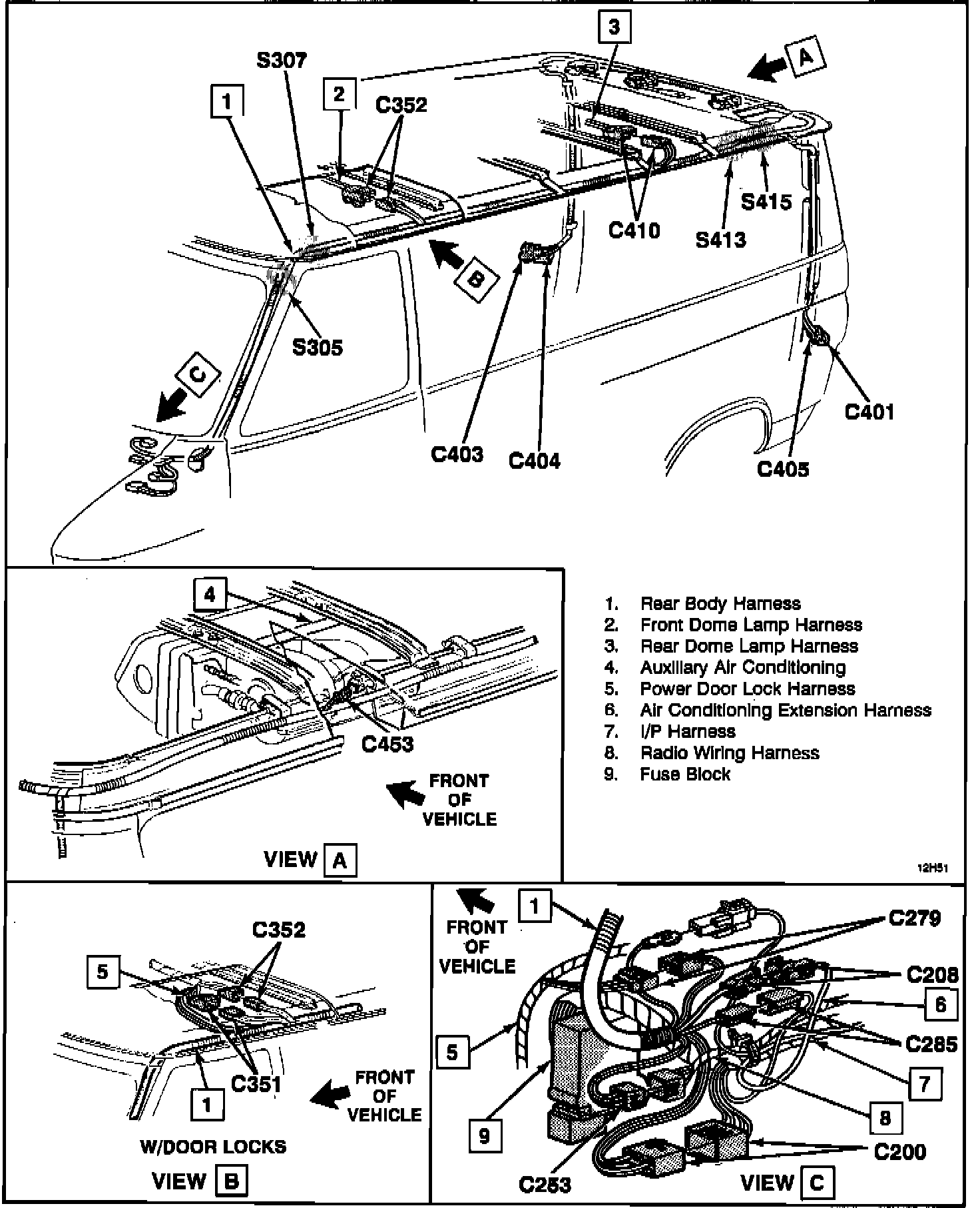

Rear Body Harness (W/Auxiliary A/C):
