1992 Chevrolet Cavalier RS, 2D Convertible, 2.2 4, Standard
Converter Lock-Up Signal From ECM
1992 Chevrolet Cavalier RS, 2D Convertible, 2.2 4, StandardSECTION Converter Lock-Up Signal From ECM
- Warm engine to operating temperature. Raise vehicle and support drive wheels. Support suspension where necessary to prevent damage to drive axles.

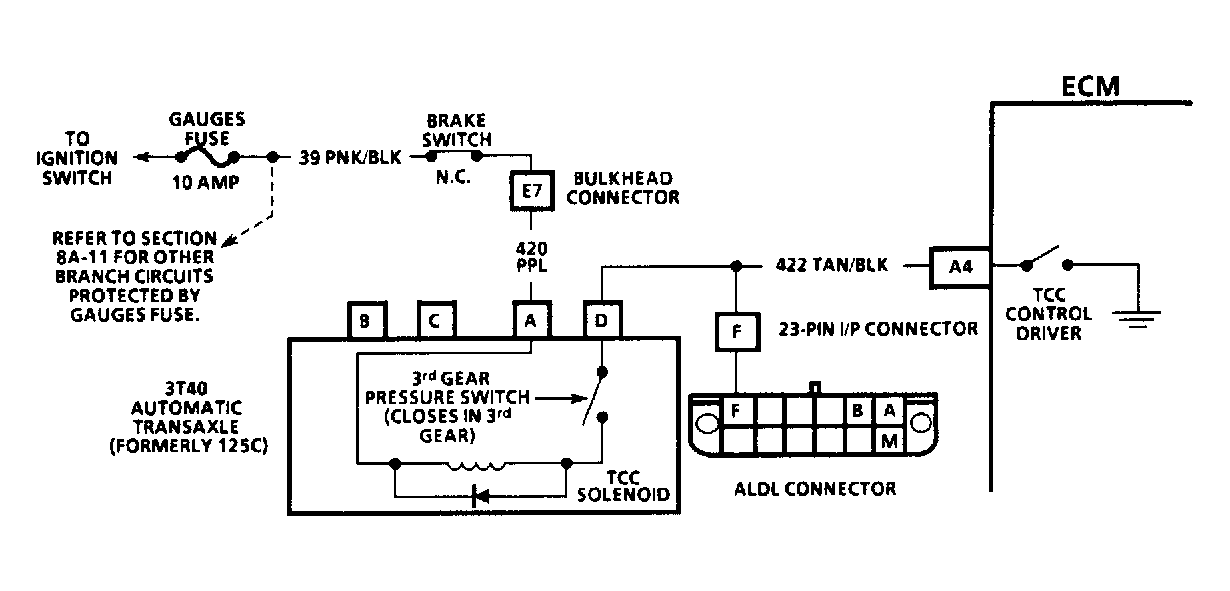

- Connect a test light to battery voltage. Touch TCC control driver terminal with test light. On some vehicles this is terminal "F" of the ALDL connector. See Fig 1 - Fig 3 . Accelerate vehicle to 45 MPH and note test light. If test light does not illuminate, problem is a faulty ECM connector or ECM.
