1992 Chevrolet Cavalier RS, 2D Convertible, 2.2 4, StandardFACTORY OEM SERVICE PROCEDURE
Component Location
COMPONENT LOCATION
| Component | Location |
|---|---|

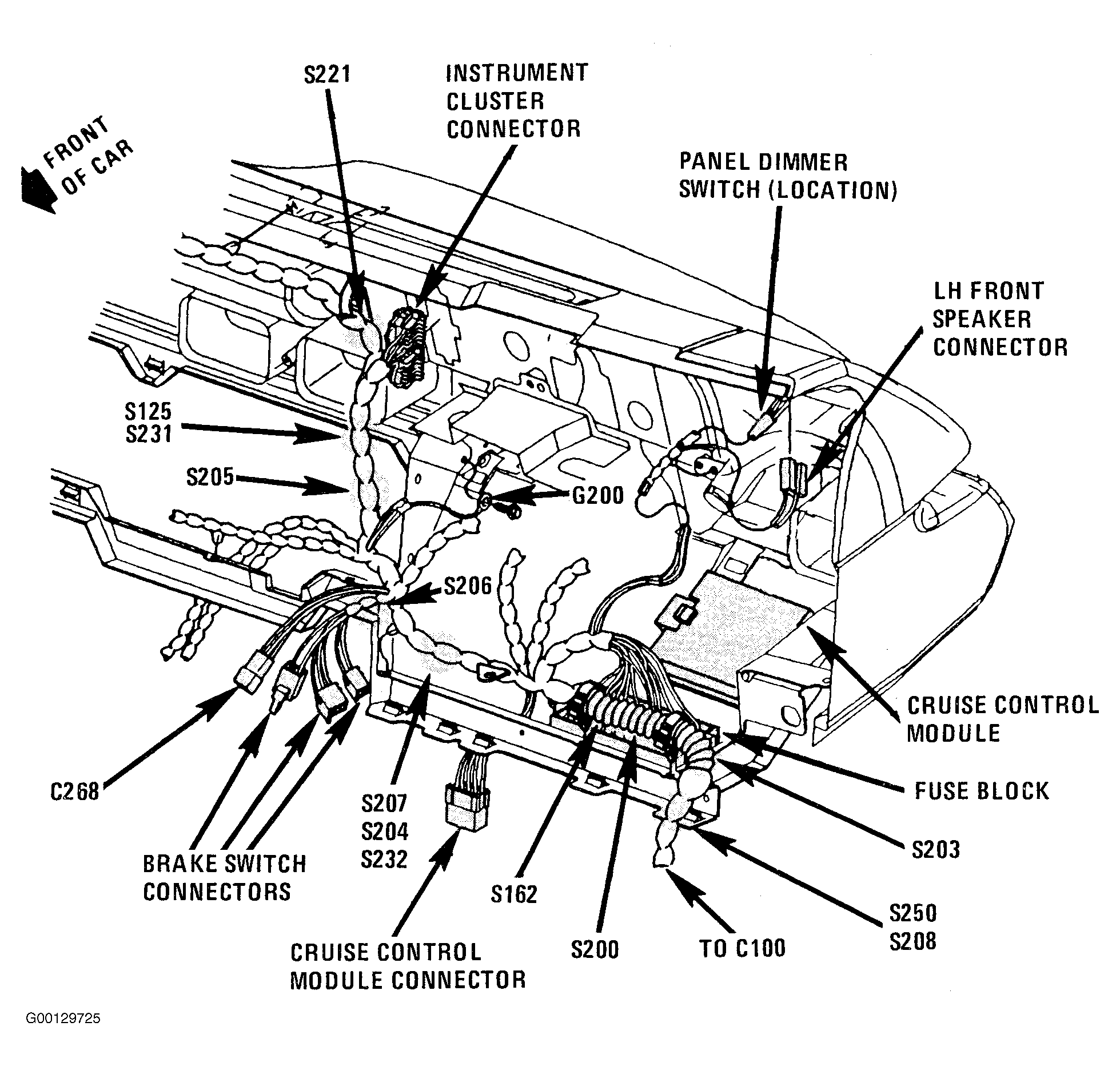

| Fuse Block | Behind Left Side Of Instrument Panel. See Fig 1 |
| Power Window Motor | Lower Front Of Respective Door. See Fig 2 |
| C200 (30 cavities) | Behind Instrument Panel, Near Left Shroud. See Fig 3 |
| C318 (3 cavities) | Behind Instrument Panel, Near Right Shroud. See Fig 4 |
| C319 (3 cavities) | Behind Instrument Panel, Near Left Shroud. See Fig 4 |
| G302 | Below Left Front Seat, Near Door Sill. See Fig 5 |
| S215 | Crosscar Harness, Near Upper Left Shroud. See Fig 3 |
