1992 Chevrolet APVFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

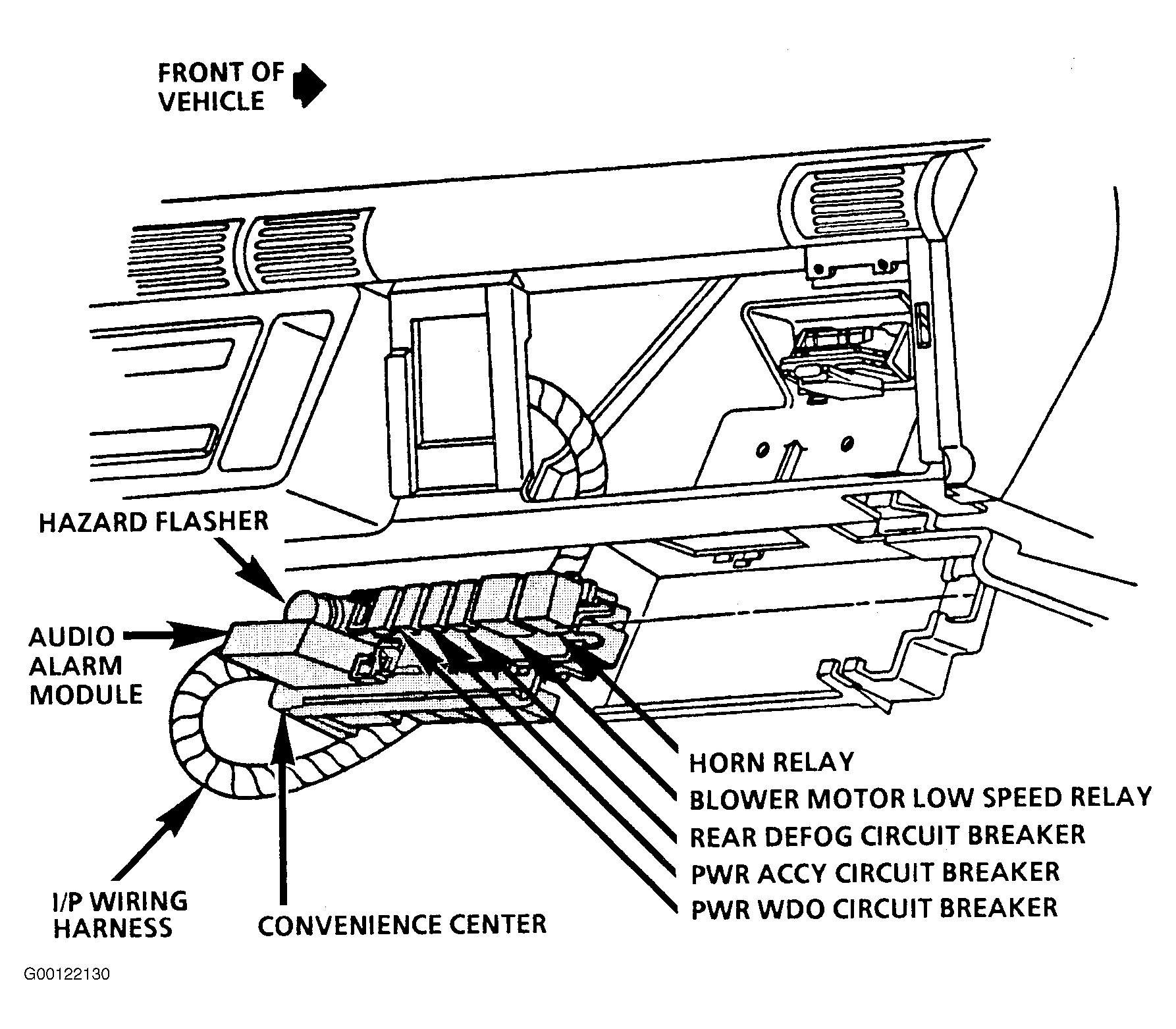

| Convenience Center | Below Right Side Instrument Panel. See Fig 1 . |
| Left Window Switch | In Left Door Armrest. |
| Right Window Switch | In Right Door Armrest. |
| C205 (3 Or 8 Cavities) | Near Base At Left "A" Pillar, Left Of Parking Brake. See Fig 2 . |
| G200 (1994) | Lower Left "A" Pillar, Left Of Park Brake. |
| G201 (Except 1994) | Lower Left "A" Pillar, Left Of Park Brake. |
| P500 | Between Left Door & Base Of Left "A" Pillar. |
| P600 | Between Right Door & Base Of Right "A" Pillar. |
| S217 | Cross Car/Doors Wiring Harness. |
| S228 | Cross Car/Door Wiring Harness. |
