1990 Chevrolet Caprice Base, 4.3 Z, 4L60/MD8FACTORY OEM SERVICE PROCEDURE

Diagnostic Aids

If the engine is allowed to cool overnight, the coolant temperature sensor and MAT sensor should read close to each other, when measured with a "Scan" tester. A Code 25 will also result if sensor signal circuit is shorted to ground.

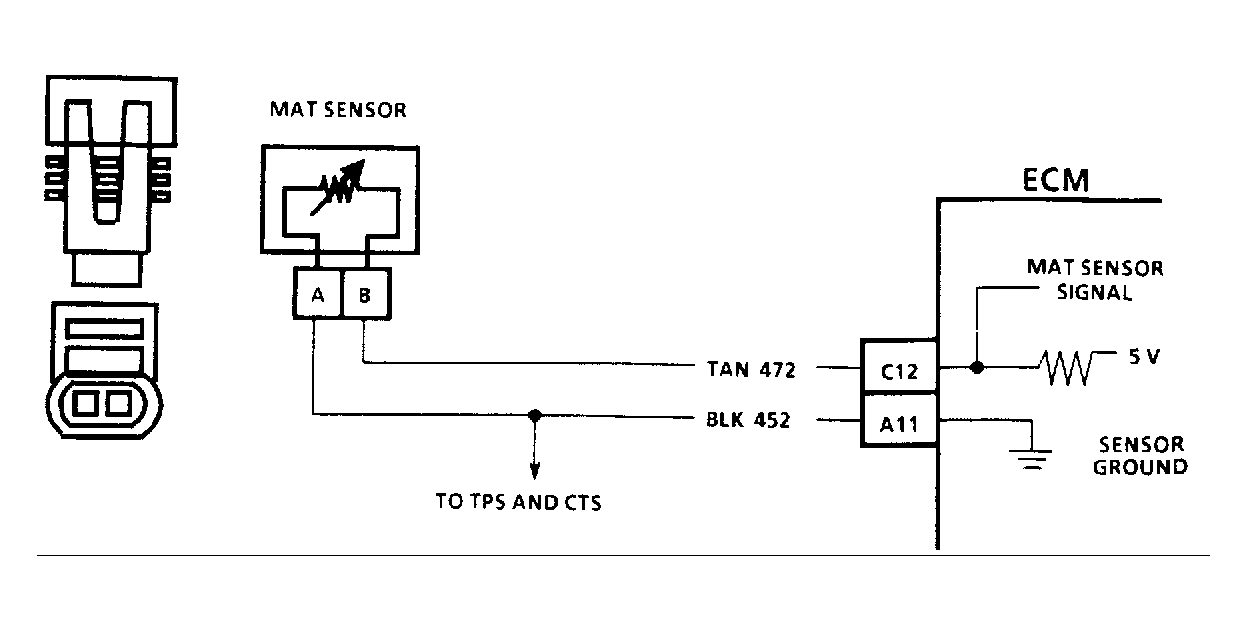

Fig 1: Code 25, MAT Sensor Temp Hi Ckt Diag
G110486
