1990 Chevrolet Blazer 5.7 K, StandardFACTORY OEM SERVICE PROCEDURE
Downshift Control Relay (THM 400)

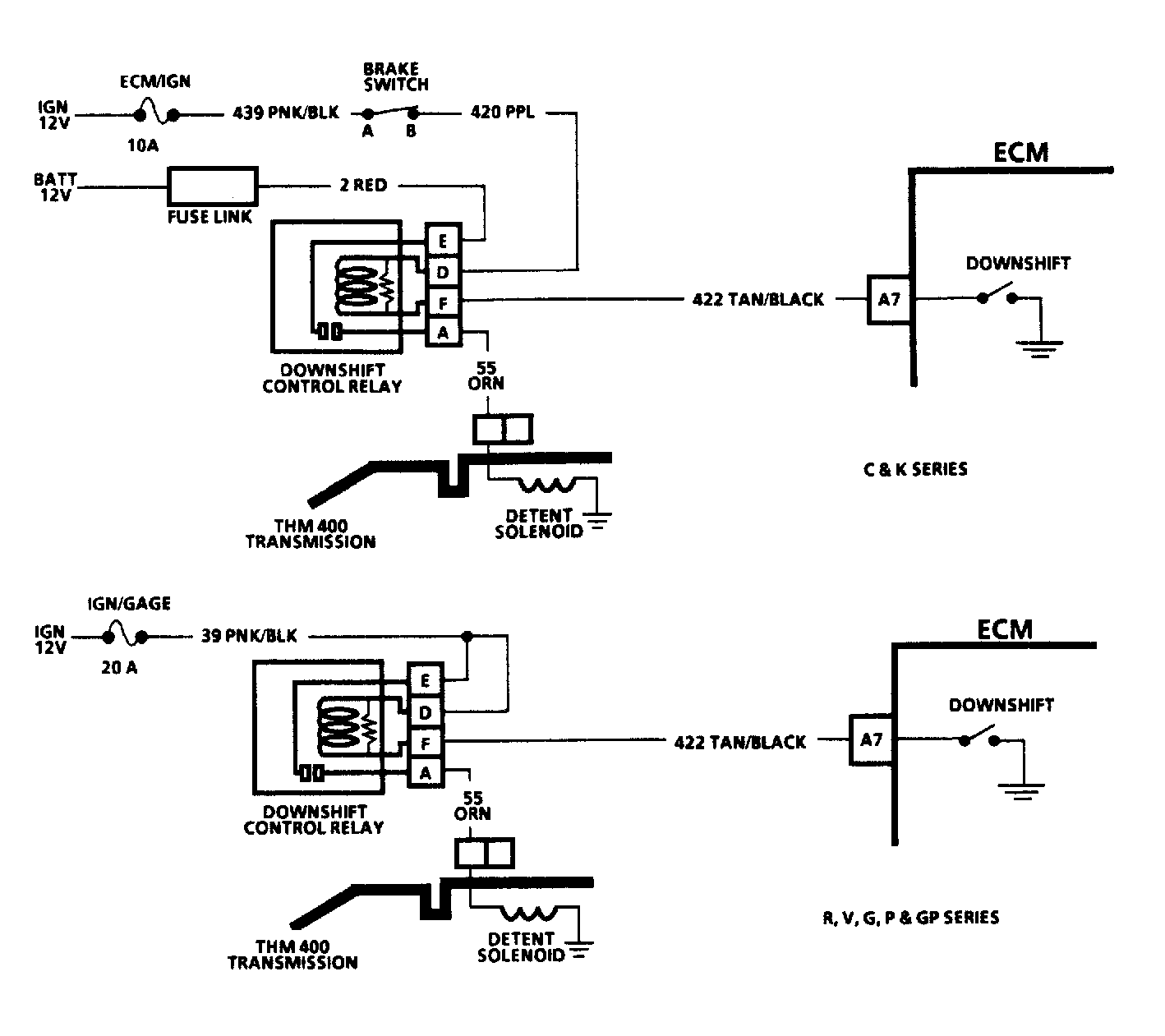

- Disconnect wiring harness connector to downshift control relay. Measure resistance between relay terminals "D" and "F". See Fig 1. Resistance should be 20 ohms. If resistance is not as specified, replace downshift control relay.
- Connect ohmmeter between relay terminals "A" and "E". See Fig 1. No continuity should be present. If continuity is present, replace shorted downshift control relay.
