1987 Chevrolet Chevette L4-98 1.6LFACTORY OEM SERVICE PROCEDURE
Engine VIN Code Identification
Model Year and Engine Identification:
To identify any engine by the manufacturer's code, follow the four steps designated by the numbered blocks.

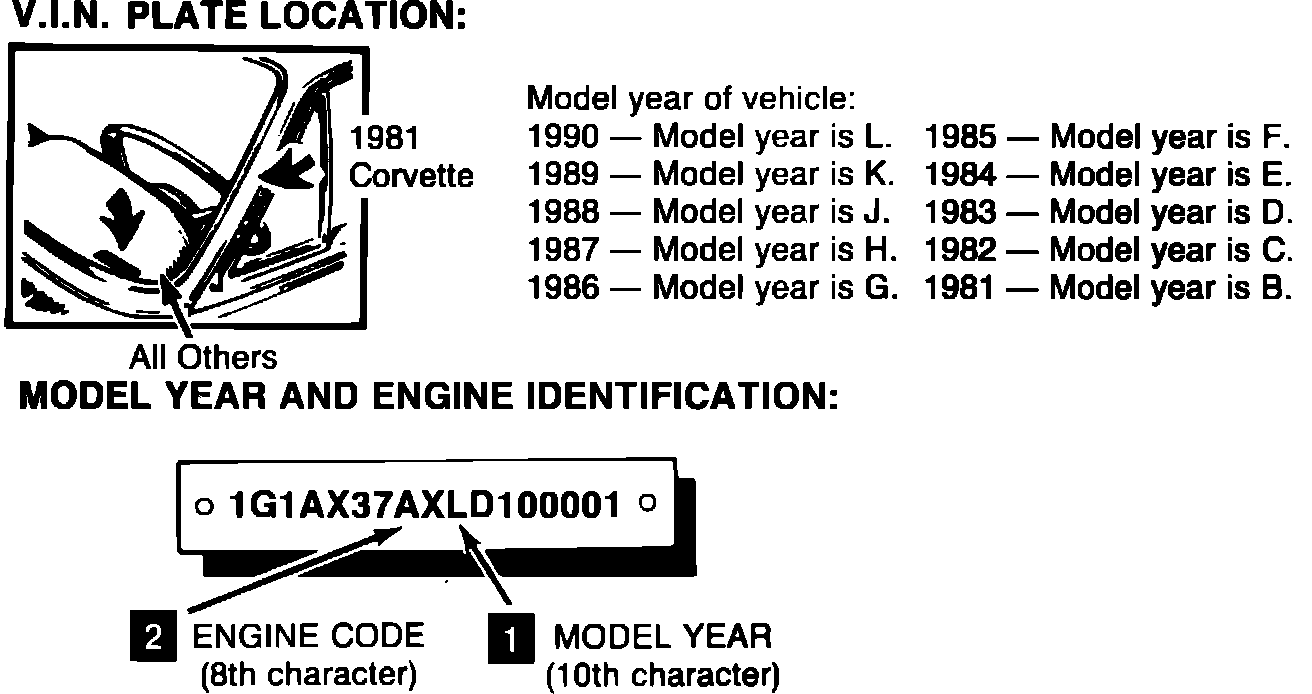

[1] MODEL YEAR IDENTIFICATION: Refer to illustration of Vehicle Identification Number (V.I.N.). This year is indicated by a code letter.
[2] ENGINE CODE LOCATION: Refer to V.I.N. plate illustration. The engine code is indicated as a letter or number.
Engine Identification - 1987:

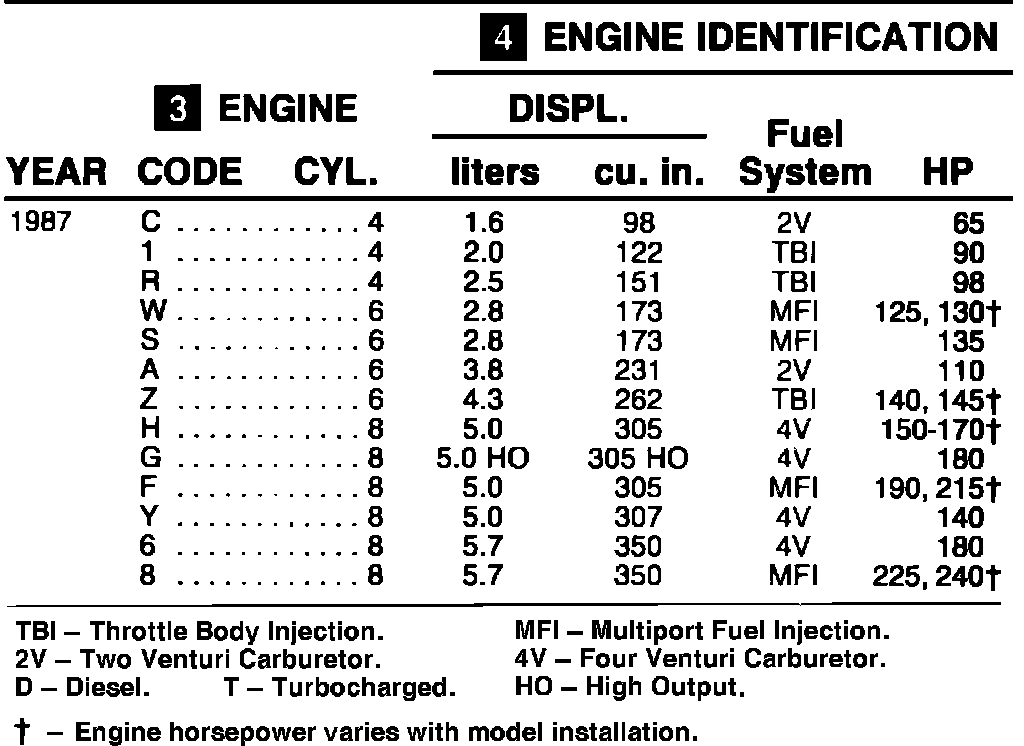

[3] ENGINE CODE: In the "CODE" column, find the engine code determined in Step 2.
[4] ENGINE IDENTIFICATION: On the line where the engine code appears, read to the right to identify the engine.
