1986 Chevrolet Camaro Base, 2.8 S, StandardFACTORY OEM SERVICE PROCEDURE
Camber Adjustment
NOTE:
Jounce vehicle several times to settle suspension. Release on down stroke. Check for proper tire pressure, worn steering or suspension components.

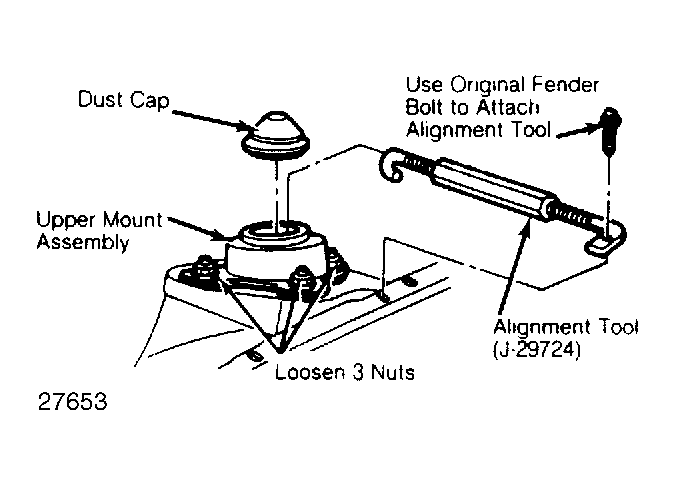

- Camber can be adjusted by moving position of upper strut mount assembly inboard (negative) or outboard (positive). Remove dust cap and fender bolt. Adjust by loosening 3 nuts at top of mount.
- Install Alignment Tool (J-29724) with hook on upper strut mount and bracket on fender (using original fender bolt). Tighten turn-buckle until the proper camber reading is obtained. Tighten nuts to specification. See Fig 1 .
