1986 Models

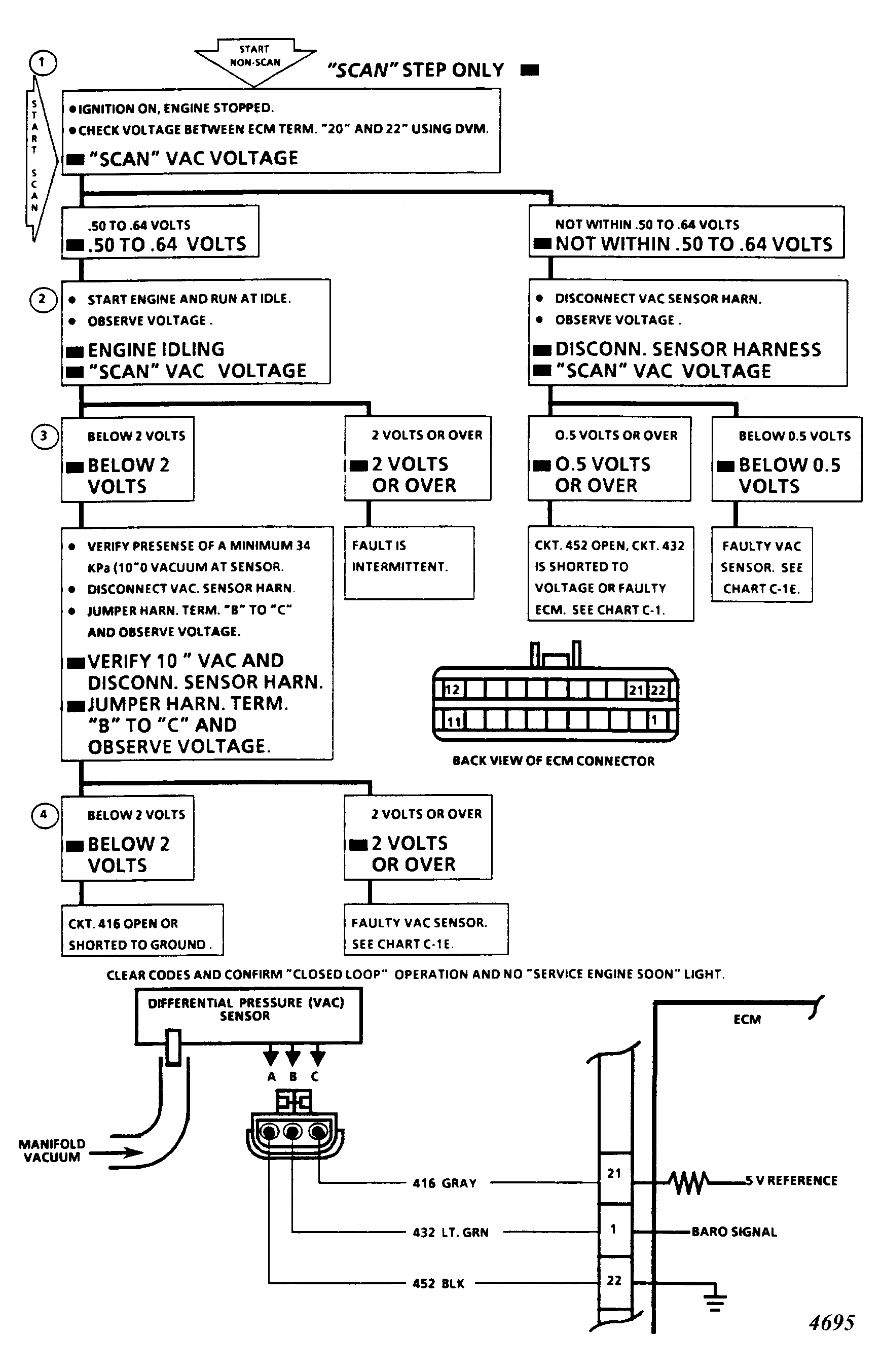

Code 34 indicates the ECM has seen the following:
- Pressure outside a specified voltage range (seen by ECM as voltage at terminal "20").
- Engine RPM less than a given value.
- Engine at operating temperature.
- All the above for a time greater than specified.
- This tests output of sensor at idle to determine if sensor is within specification. Normal sensor will read .59-.64 volts with key in the "ON" position and engine not running.
- Signal voltage should read over 2 volts with engine idling with a minimum of 15 in. Hg vacuum.
- If voltage reads between 4-6 volts, VAC sensor is faulty.
- Low voltage indicates a faulty circuit 416.
