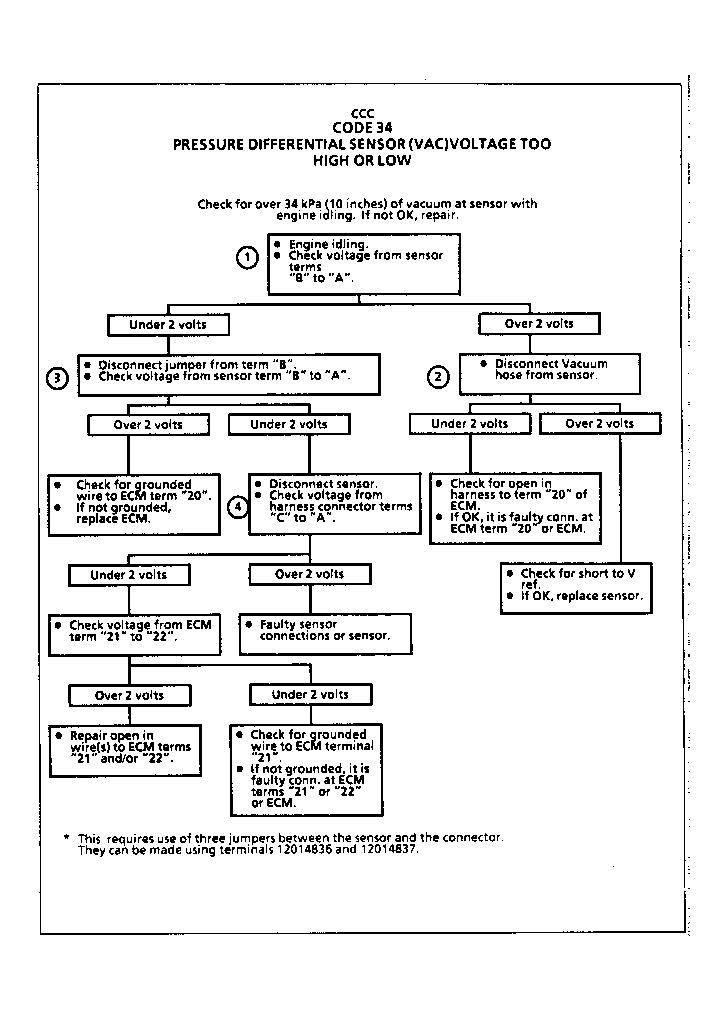

Code 34 - Differential Pressure (Vacuum) Sensor
Code 34 says that the ECM has seen the following:
- Pressure outside a specified voltage range (seen by ECM as voltage at term. "20").
- Engine RPM less than a given value.
- Engine at operating temperature.
- All the above for a time greater than specified.
The vacuum sensor measures the difference in pressure between atmosphere and manifold. The vacuum sensor supplies high voltage at high vacuum. High voltage increases spark advance.
- This test checks output of sensor at idle to determine if sensor is within specification. Normal sensor will read less than 1 volt with key "ON," engine "OFF" and over 3 volts with engine idling (15 in. Hg minimum).
- Normal sensor will drop below 1 volt with no vacuum.
- This test checks for a ground in wire from term. "B" of vacuum sensor to ECM. Line is open if voltage is over 2 volts.
- This test checks to see if the fault is in the sensor, the ECM wiring, or the ECM. If the voltage goes over 2 volts with the sensor disconnected, the sensor or sensor connections are faulty.
