Ignition System: Description
The Delco-Remy High Energy Ignition System (HEI) consists of a distributor with an integral electronic module, a battery, an ignition coil, an ignition switch, spark plugs, and primary and secondary wiring.

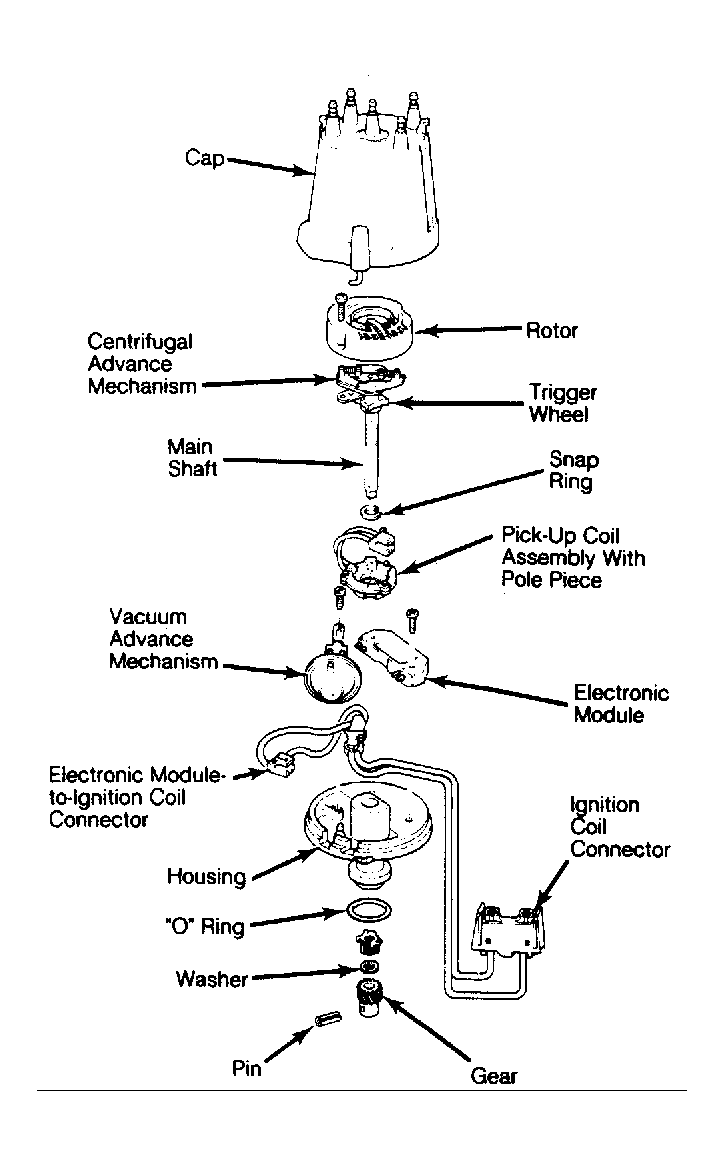

The HEI distributor housing encloses the following components: Vacuum and centrifugal advance mechanisms, magnetic pick-up coil, pole piece (with internal teeth), trigger wheel (with external teeth), an electronic module (with built-in radio noise suppression capacitor), rotor and distributor shaft. See Fig 1.
All HEI systems use 8 mm spark plug wiring and wide spark plug gaps. An electrical connector on the side of the distributor housing connects the HEI system with the vehicle's ignition and battery wiring.
