1983 Chevrolet Sportvan G10, 5.7 LFACTORY OEM SERVICE PROCEDURE
End Play Check

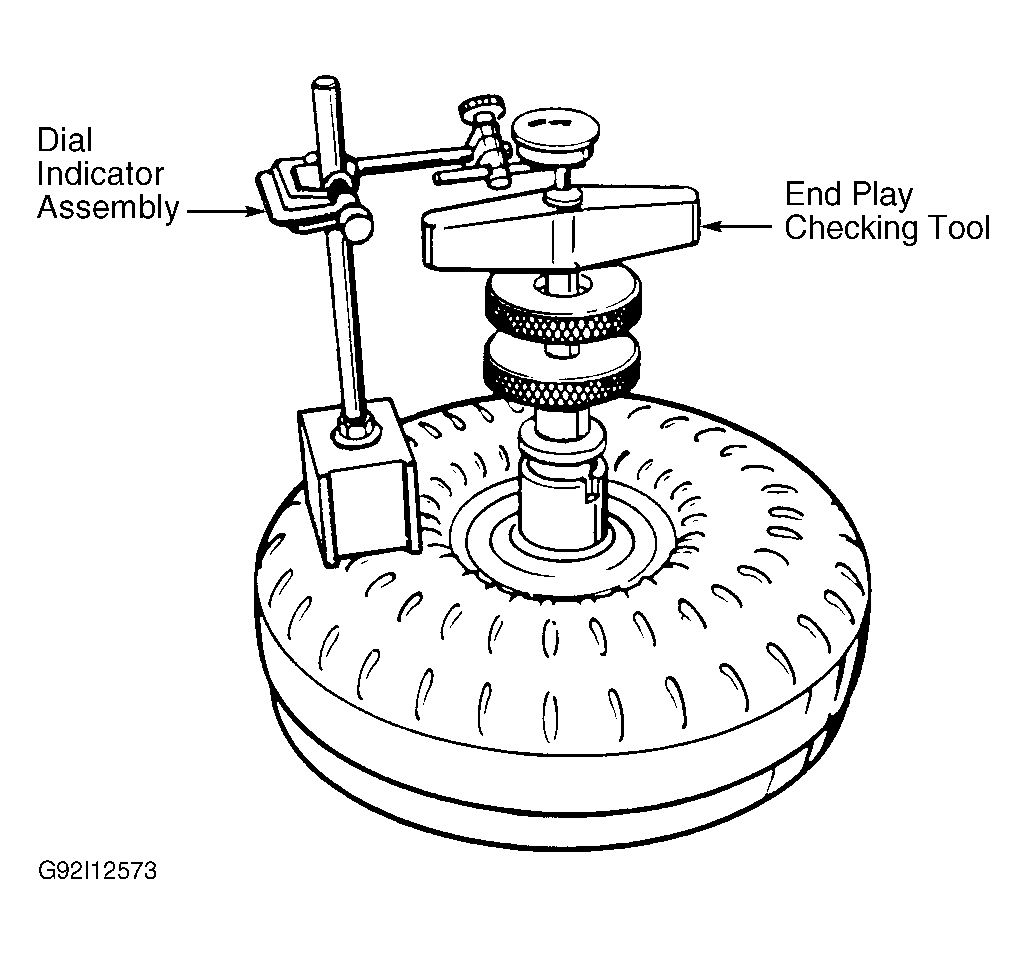

- Inspect torque converter for hub scoring, cracks or weld area cracks before checking end play. Install End Play Checking Tool (J-35138) on torque converter. See Fig 1 .
- Note end play of torque converter. End play must be within specification. See TORQUE CONVERTER END PLAY SPECIFICATIONS . Replace torque converter if end play is not within specification or damage to hub area exists.
TORQUE CONVERTER END PLAY SPECIFICATIONS
| Converter Diameter: In. (mm) | End Play: In. (mm) |
|---|---|
| 9.65 (245.0) | .000-.020 (.00-.50) |
| 11.73 (298.0) | .000-.024 (.00-.61) |
