1983 Chevrolet Forward Control 4.8 T, StandardFACTORY OEM SERVICE PROCEDURE
Over-Center Preload Torque Adjustment
- Loosen adjuster screw lock nut. Back off adjuster screw until stopped, then turn in 1 full turn. Rotate input shaft from stop to stop counting number of turns. Turn shaft half way back to center position.

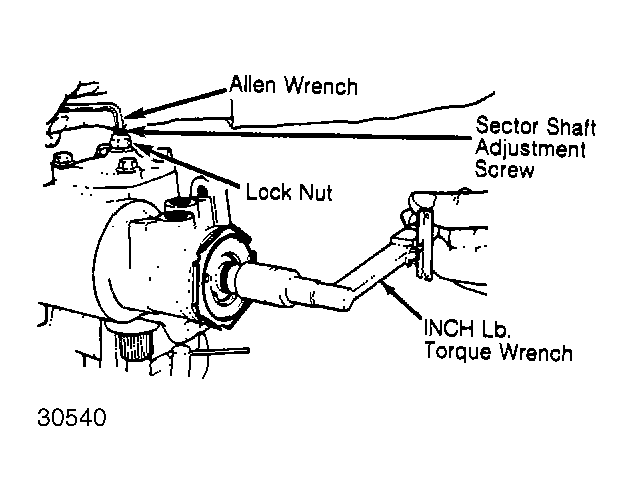

- Attach an INCH lb. torque wrench to input shaft. Turn shaft from side to side through specified arc on each side of center. See OVER-CENTER PRELOAD chart. Note torque reading going over center. See Fig 1 .
OVER-CENTER PRELOAD INCH LBS.
| Application | Arc | Over-Center | (1) Total | ||||
|---|---|---|---|---|---|---|---|
| New Gears | 20° | 6-10 (.7-1.1) | 18 | ||||
| Used Gears (2) | 20° | 4-5 (.5-.6) | 18 | ||||
|
|||||||
