Fuel Injection System - Single Unit TBI: Identification

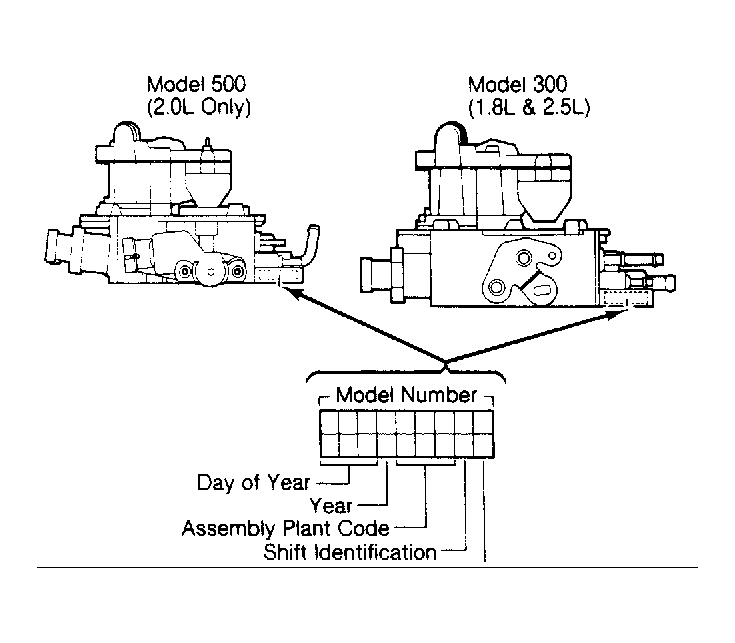

The throttle body identification number is "roll-stamped" on the front mounting flange on the throttle lever side (Model 300) or throttle position sensor side (Model 500) of the throttle body. See Fig 1 . Alphabetical code letters are stamped on the throttle body at external tube locations to identify vacuum hose connections.
