1983 Chevrolet Camaro Base, 5.0 H, StandardFACTORY OEM SERVICE PROCEDURE
Wiper/Washer Systems - Liftgate: Testing
NOTE:
Connecting power source to wiper motor with improper polarity will result in wiper rotating in wrong direction.

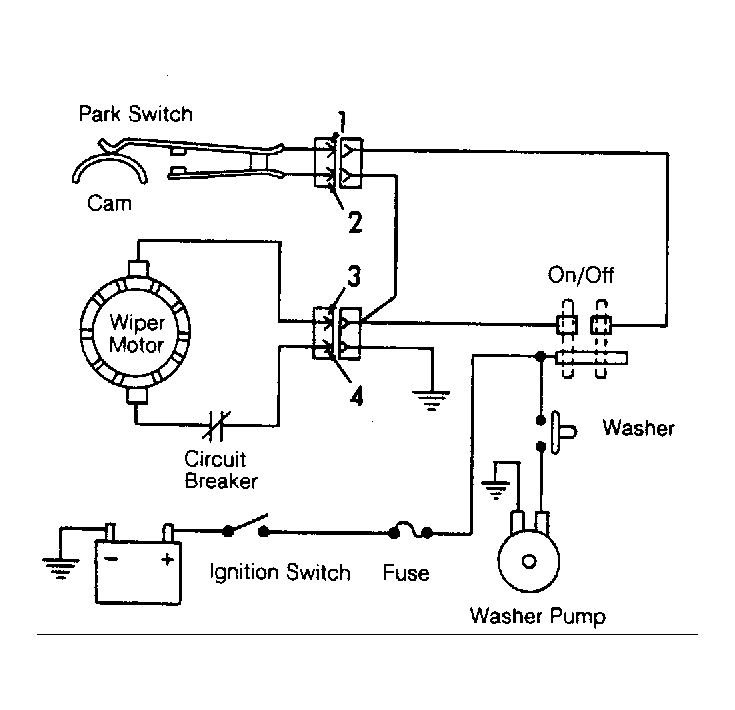

- To operate motor without using park switch, connect battery voltage to terminal No. 3 and ground lead to terminal No. 4. See Fig 1 , View "A". To turn wiper motor off and obtain proper park position, install park switch, if previously removed, and connect terminal No. 4 to ground.
- Connect a jumper wire from terminal No. 2 of the park switch to terminal No. 3 of the motor. Connect battery voltage to terminal 1 of park switch. See Fig 1 , View "B".
