1982 Chevrolet Chevette L4-111 1.8L DSLFACTORY OEM SERVICE PROCEDURE
Timing Component Alignment Marks: Locations

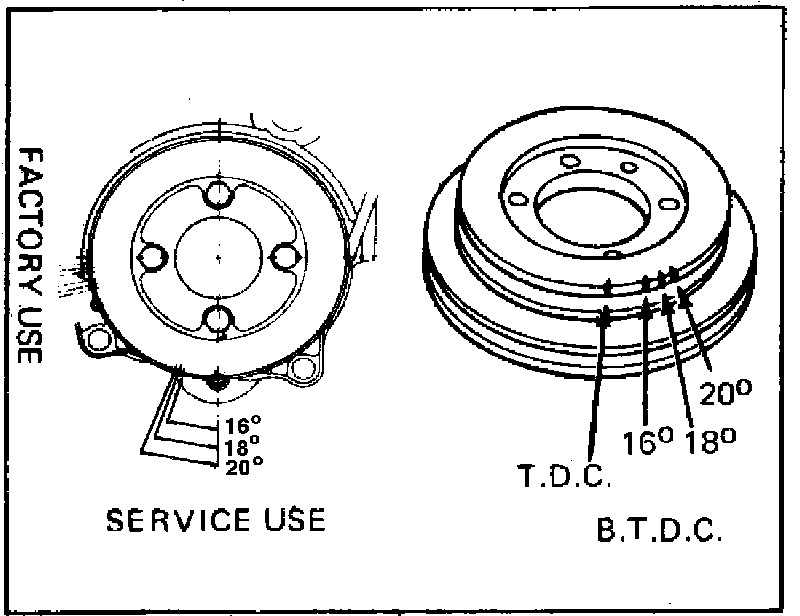

Fig. 12 Timing mark locations on damper pulley:

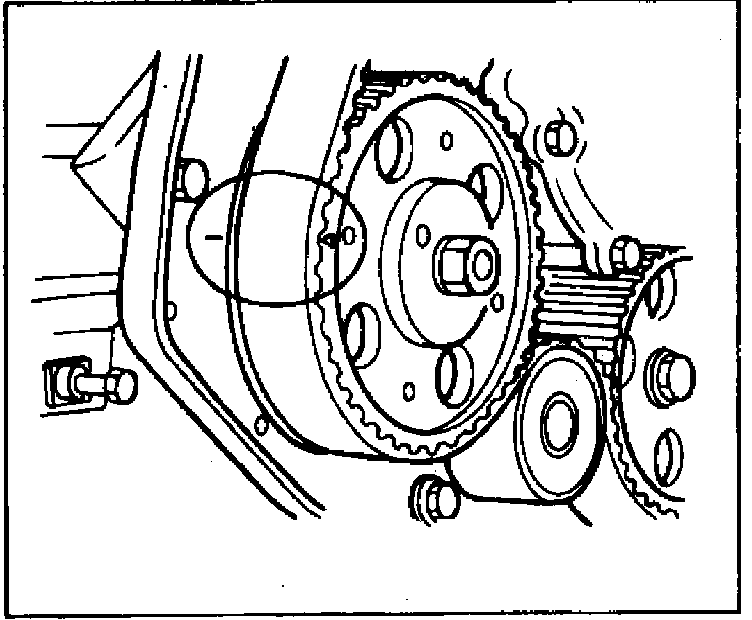

Fig. 13 Injection pump pulley alignment:

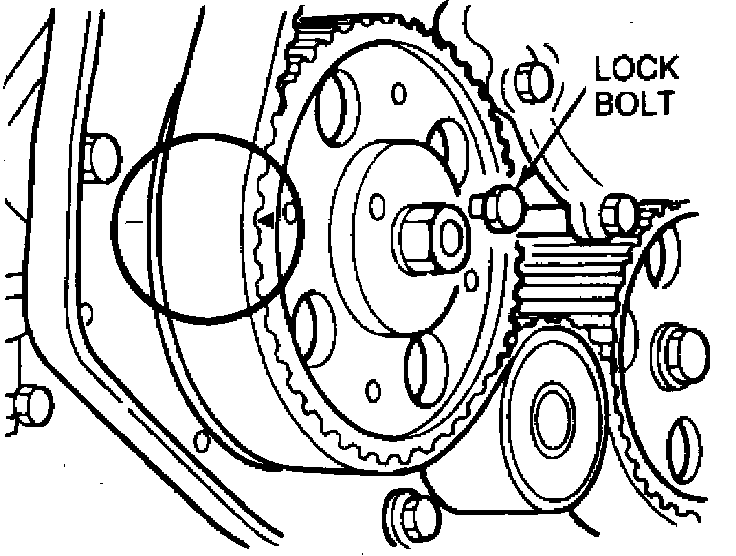

Fig. 14 Fixing injection pump pulley with lock bolt:
CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.
For complete Timing Belt Removal and Installation information, Service and Repair
