Alignment: Service and Repair

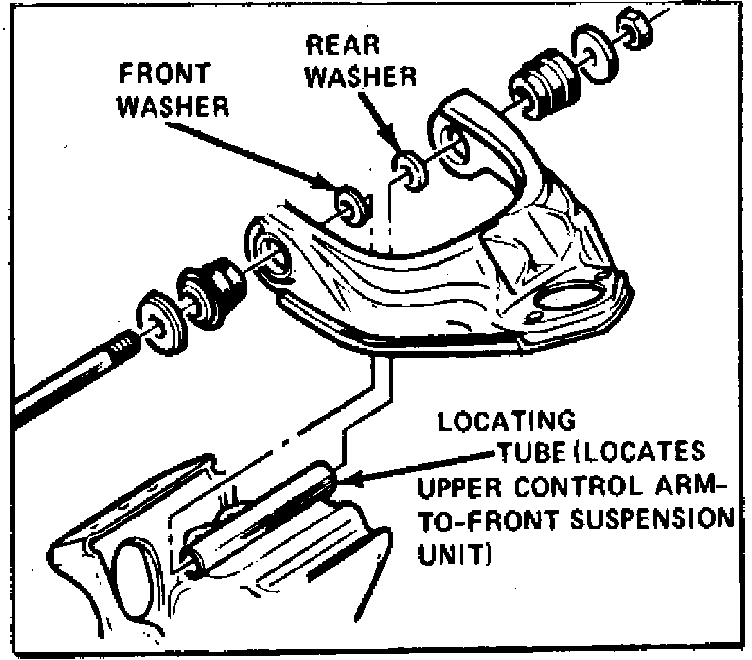

Fig. 1 Caster adjustment:

CASTER
Caster angle is adjusted by rearranging washers located at both ends of the upper control arm, Fig. 1. A kit consisting of two washers, one of 3 mm thickness and one of 9 mm thickness, must be used when adjusting caster angle.

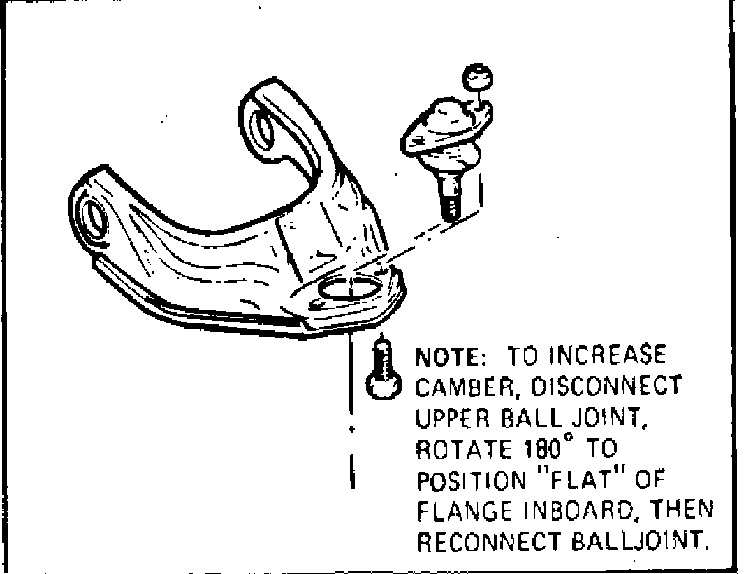

Fig. 2 Camber adjustment:

CAMBER
Camber is adjusted by removing the upper ball joint, rotating it 1/2 turn and reinstalling it with flat of upper flange on inboard side of control arm, Fig. 2. This will increase positive camber by approximately 1°.




TOE-IN
To adjust toe-in, loosen tie rod jam nuts at tie rod ends and loosen clamp at rubber bellows. Turn each tie rod to increase or decrease its length until proper toe-in is obtained. Torque jam nut to 50 ft. lbs.
