Thermostatic Air Cleaners -- All Models: Operation: Notes

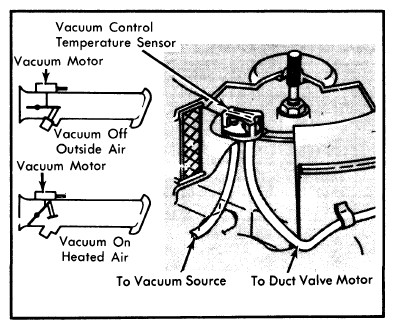

When temperature of air entering air cleaner is less than the setting of temperature sensor, sensor closes to allow engine vacuum to operate vacuum motor which closes damper assembly to outside air. Air is then drawn from around exhaust manifold, through heat shroud and into air cleaner as heated air. As air inside air cleaner warms, sensor valve begins to open. This bleeds off vacuum to vacuum motor. As vacuum to vacuum motor drops, air control door begins to open, allowing outside air to enter air cleaner. When air entering air cleaner reaches a specified temperature, air control door opens completely, closing off heated air coming in from around exhaust manifold.
On American Motors 4.2L (258") 6-Cylinder engines, a vacuum motor controlled trap door is also used to close off the air cleaner when engine is not operating. This prevents fuel vapor from escaping into the atmosphere when engine is not operating.
