Air Induction System

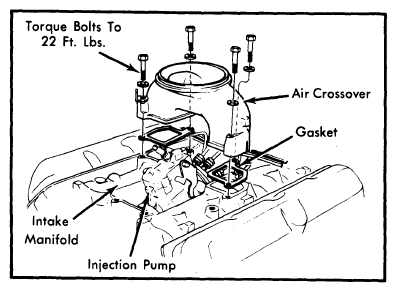

An air crossover housing is located on top of the engine over the injection pump. It is bolted to the intake manifold with 4 bolts and serves as the only air inlet in the system. No fuel passes through the crossover. It is an open-chambered housing with a single inlet drawing air through an air filter assembly mounted above. The crossover unit has two branches, one leading to each side of the intake manifold. Gaskets are installed between crossover and manifold to prevent vacuum leaks. Federal and California models use different crossovers to accommodate specific EGR systems. Starter fluid should NEVER be used or sprayed into crossover. If crossover is removed, air screens must be installed.
