Vacuum Valve

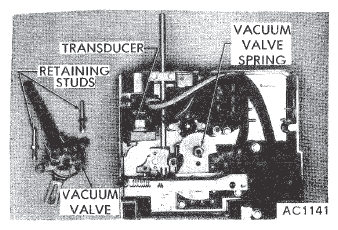

Identify vacuum hoses connected to side ports on valve to ensure correct reassembly, then disconnect two outer hoses from valve and disconnect center hose at transducer end. Loosen two vacuum valve retaining studs and lift valve off with valve drive arm (disengage arm from vacuum motor mechanism boss). When installing valve, make certain that valve spring is in place.
