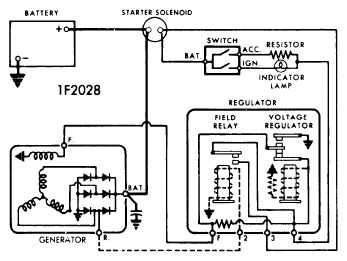

Alternator Regulators - DELCO-REMY Double Contact Regulators: Testing
After temperature is known, voltage settings can be made in relation to temperature. Also remove Heater-A/C fuse to shut off blower.
- Connect voltmeter across battery terminals, with a 1/4 ohm-25 watt fixed resistor in positive lead. Start engine and run for 15 minutes at 1200-1500 RPM. Leave cover in place to establish operating temperature. All accessories and lights must be turned off.
- After a 15 minute warm up cycle, cycle voltage regulator by disconnecting and reconnecting regulator connector. Raise engine speed on 2200 RPM. Regulator should be operating on upper contacts. Voltage reading should be within specifications on voltage chart.
Ambient Temperature Voltage Setting 65 13.9 to 15.0 85 13.8 to 14.8 105 13.7 to 14.6 125 13.5 to 14.4 145 13.4 to 14.2 165 13.2 to 14.0 185 13.1 to 13.9 205 13.0 to 13.8
