PONTIAC (All Models) (1964-73): Notes

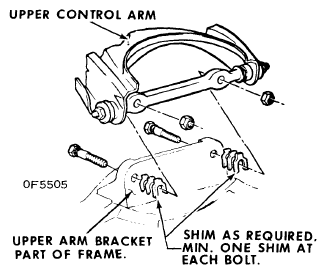

Caster and camber adjustments are made by adding or removing shims at upper control arm inner shaft and mounting bracket bolts. After adjustment is completed tighten shaft bolts to 80-100 ft. lbs. (1964-67), 65 ft. lbs. (1968-69), 75-80 ft. lbs. (1970-72), 80 ft. lbs. (1973 Exc. Omega), 50 ft. lbs. (1973 Omega).
