1960 Chevrolet Nomad 5.7L Eng, Automatic Trans, Trans Mfr CD PowerglideFACTORY OEM SERVICE PROCEDURE

Float Alignment

Align floats so they are parallel, then align screw holes in gasket with screw holes in air horn. Make sure pontoons are centered in cut-out sections of gasket and that sides of pontoons are parallel with adjacent edges of gasket.

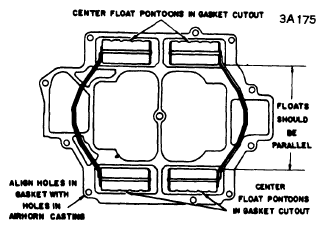

Fig 1: FLOAT ALIGNMENT
G09353182Courtesy of GENERAL MOTORS COMPANY
