2013 Cadillac SRX BaseFACTORY OEM SERVICE PROCEDURE
Installation Procedure

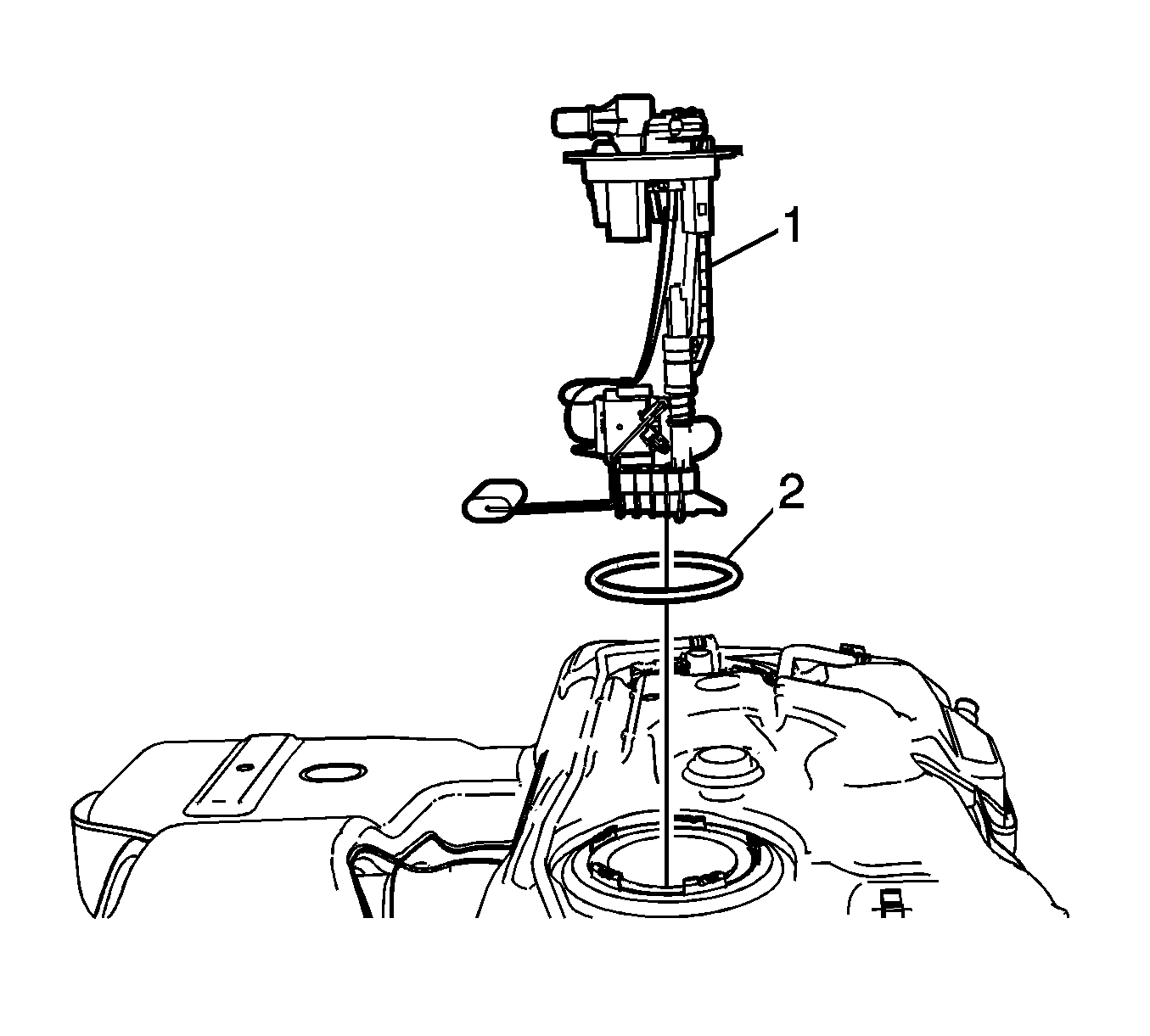

- Install a NEW O-ring (2) and the primary fuel tank module (1).

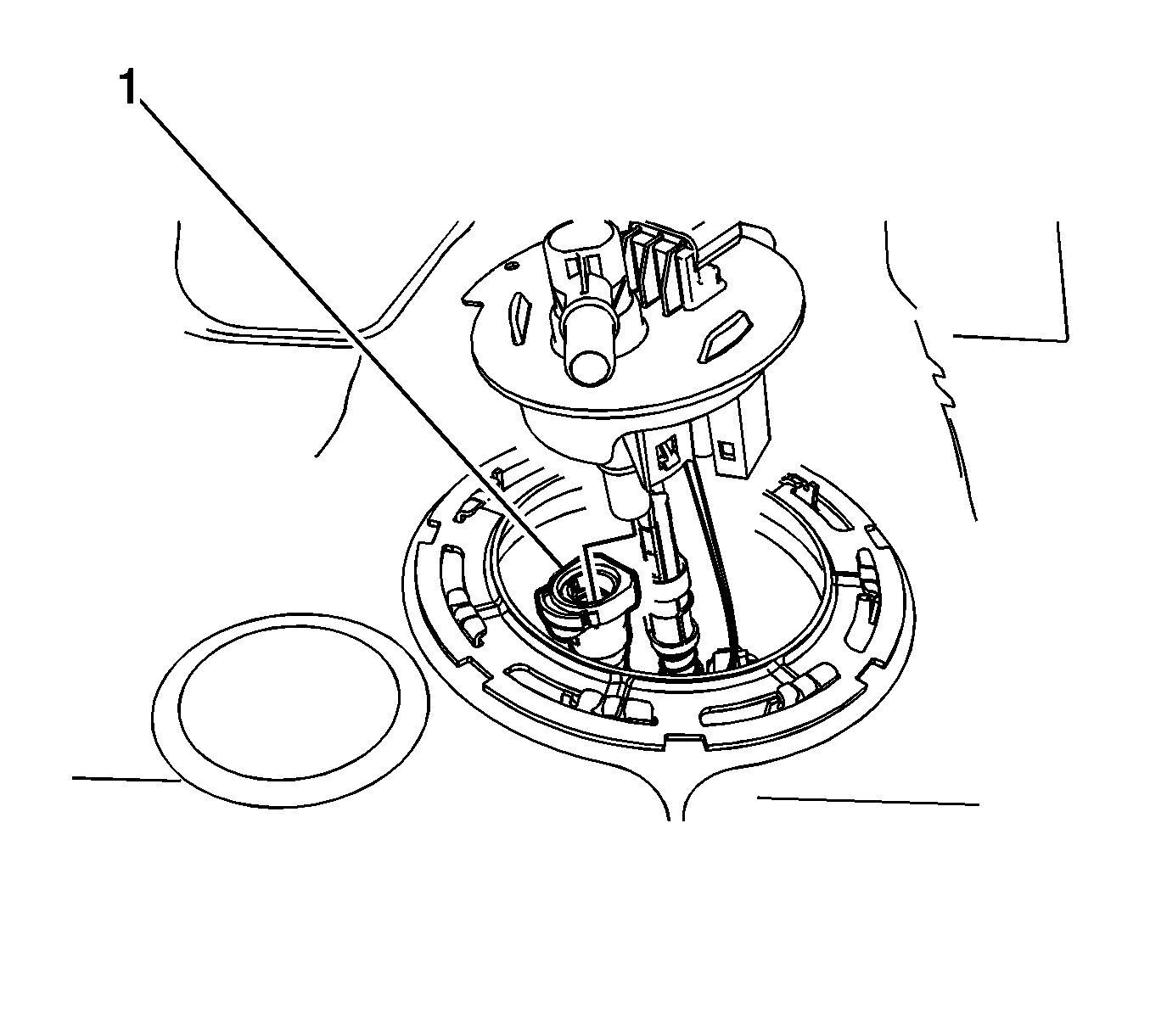

- Partially install the secondary fuel pump module and connect the crossover tube (1).

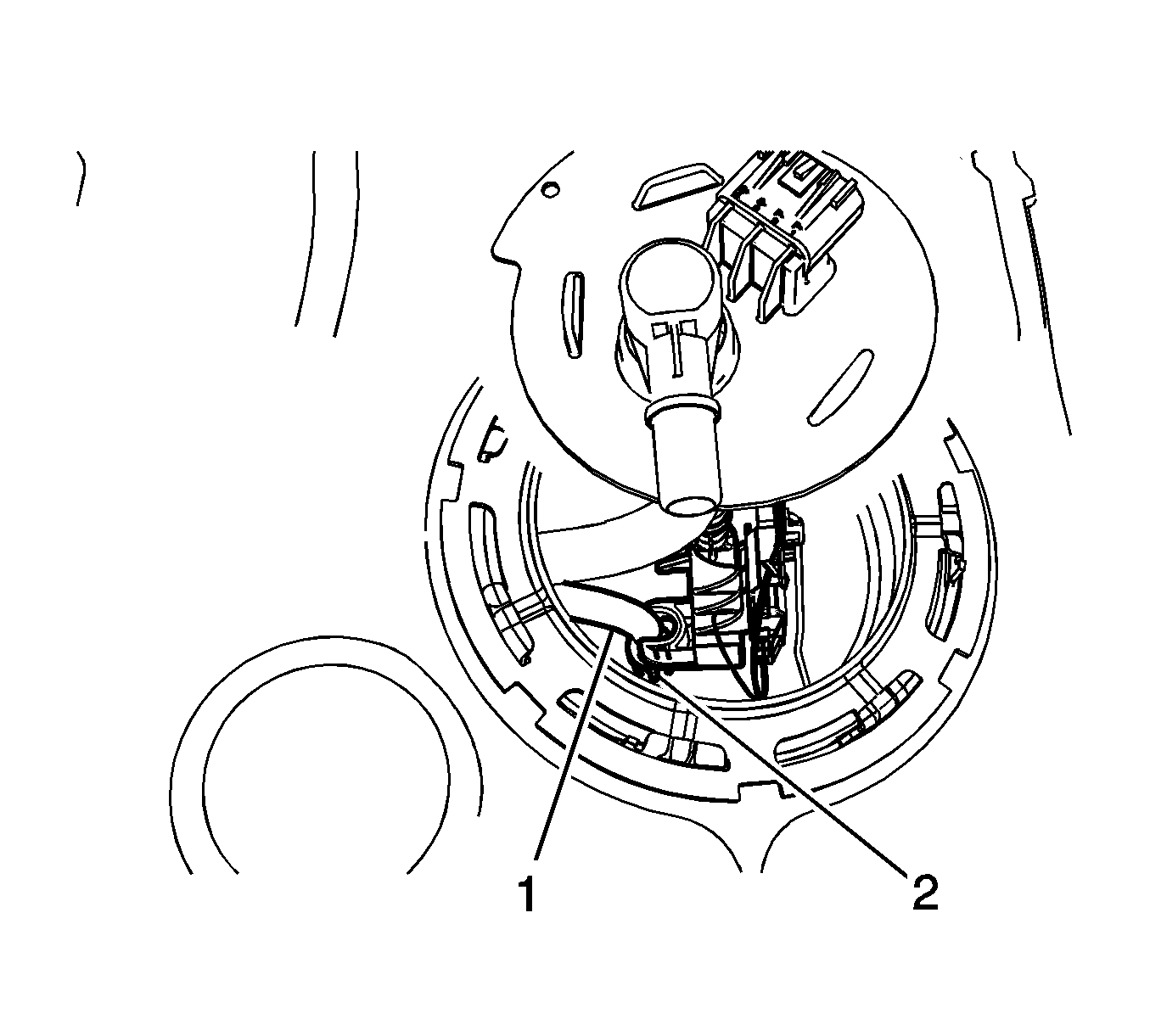

- Connect the evaporative emission line (1). Refer to Plastic Collar Quick Connect Fitting Service .

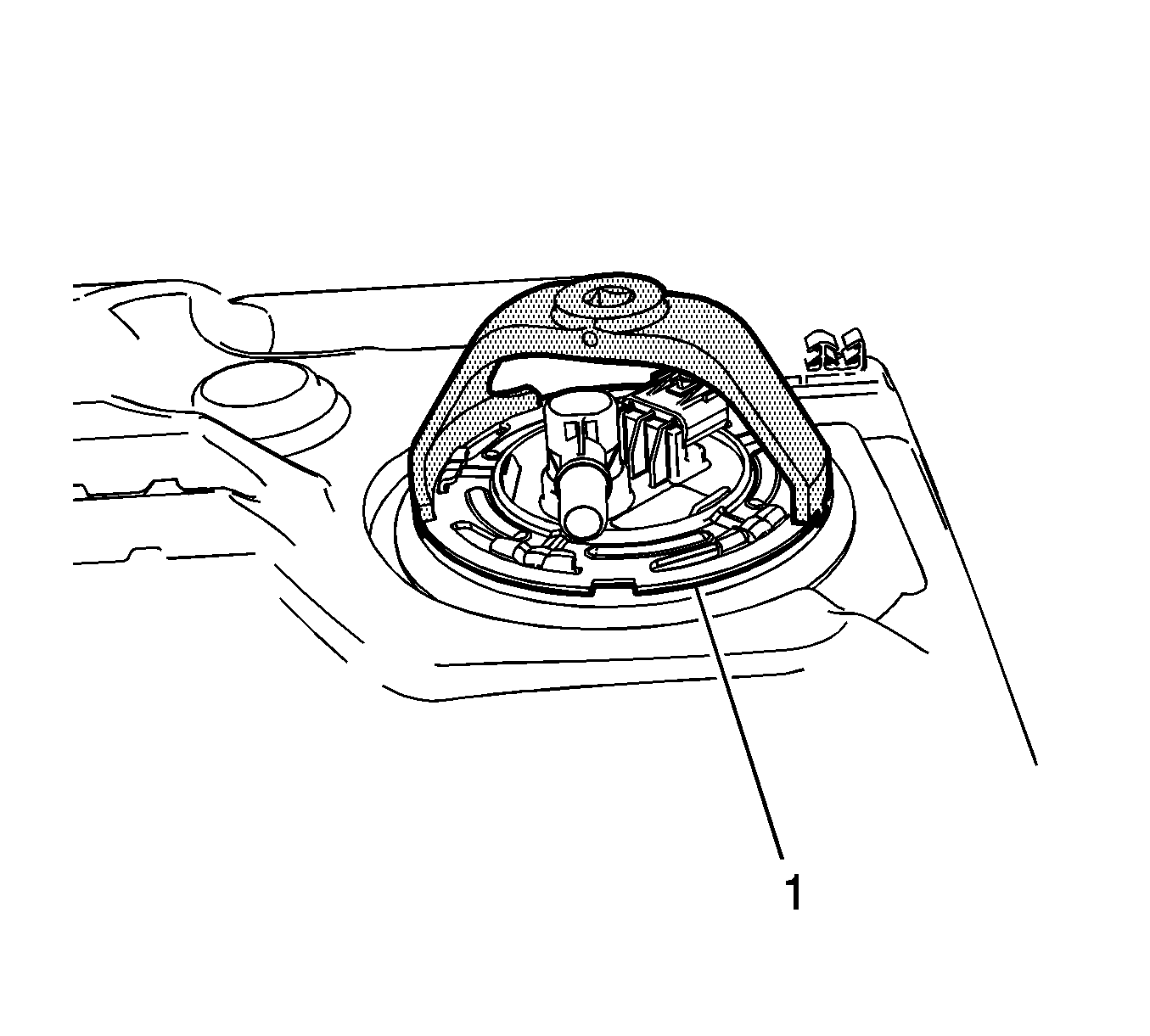

- Using the CH 48482 wrench , install the cam lock ring (1) by turning clockwise.

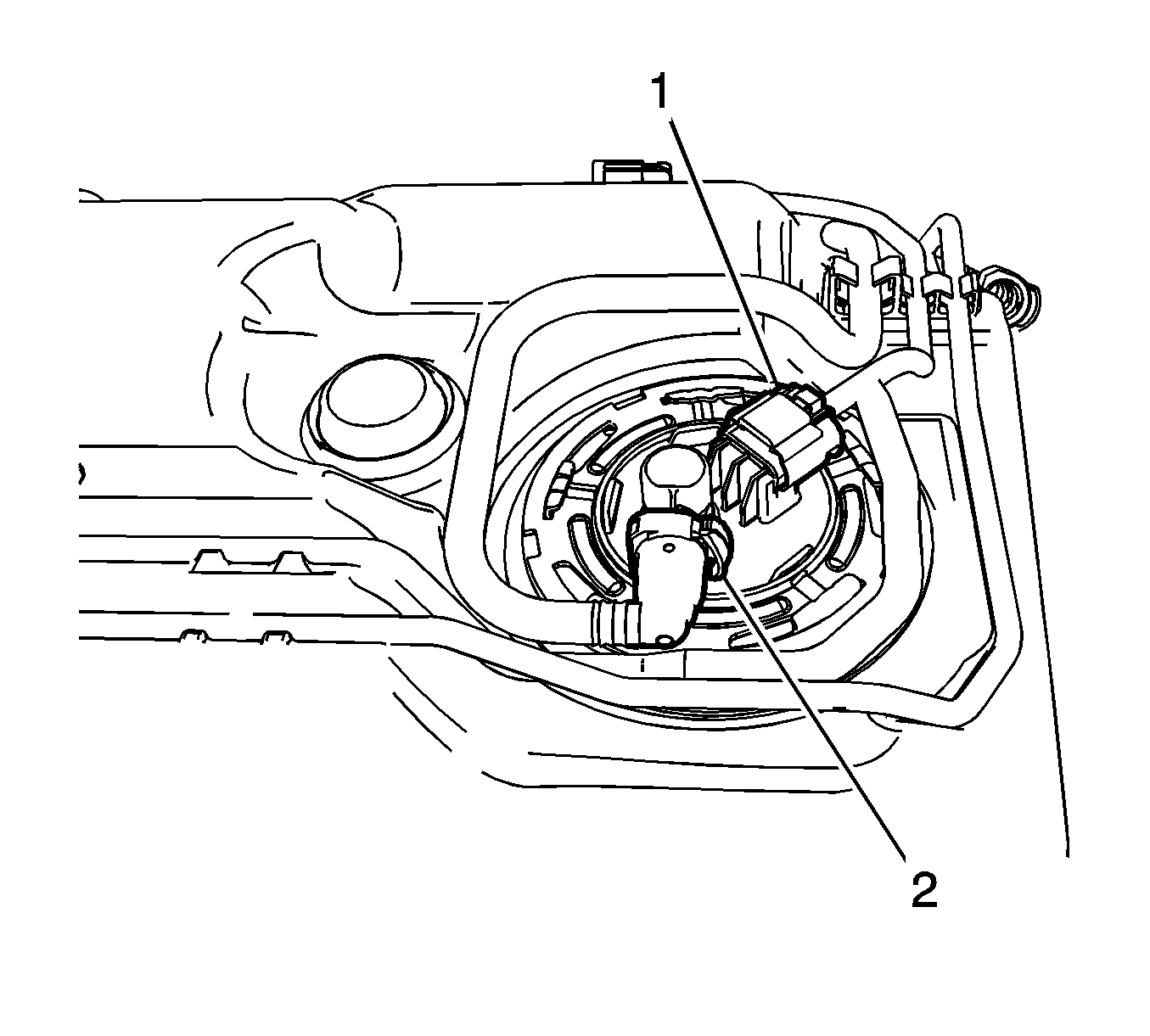

- Connect the electrical connector (1).
- Connect the evaporative emission line (2). Refer to Plastic Collar Quick Connect Fitting Service .
- Install the fuel tank. Refer to Fuel Tank Replacement .
