2013 Cadillac SRX BaseFACTORY OEM SERVICE PROCEDURE

Fuel Pump Flow Control Module Replacement

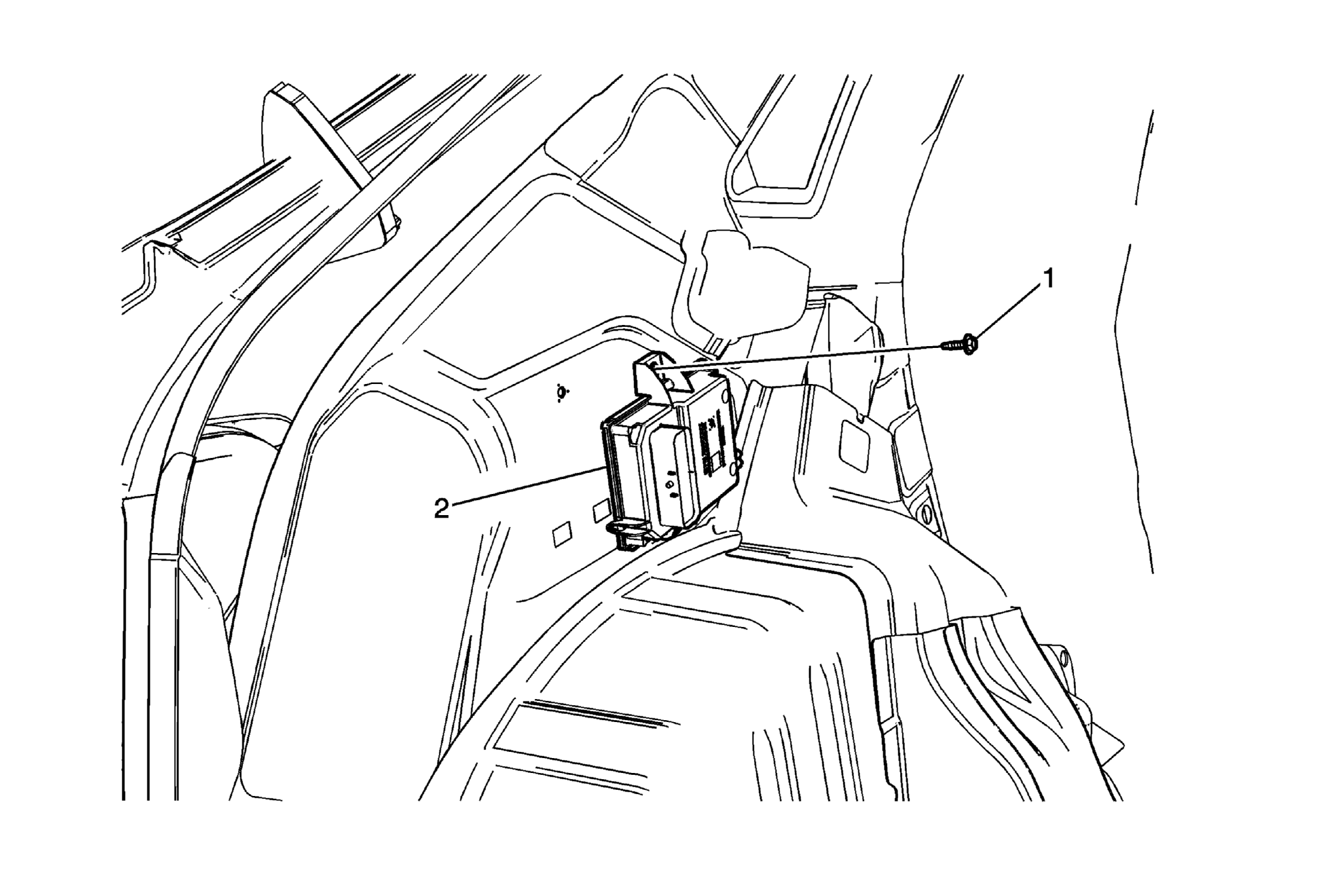

Fig 1: Identifying Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Fuel Pump Flow Control Module Fastener

CAUTION:

Refer to Fastener Caution

Tighten
8 N.m(71 lb in)

Fuel Pump Flow Control Module

Procedure

Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement .
Disconnect the electrical connector.
If replacing, reprogram the module. Refer to Control Module References
